SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 | SPECpower_ssj2008 = 17,415 overall ssj_ops/watt | ||||
| Test Sponsor: | xFusion Digital Technologies Co., Ltd | SPEC License #: | 6488 | Test Method: | Single Node |
| Tested By: | xFusion Digital Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Nov 30, 2023 |
| Hardware Availability: | Jan-2023 | Software Availability: | Aug-2022 | Publication: | Jan 12, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

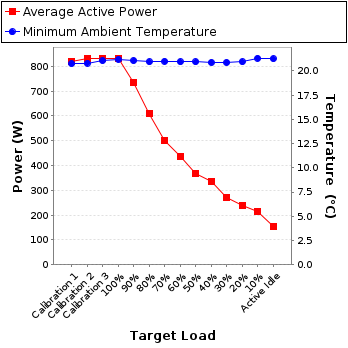

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 821 | 20.8 |
| Calibration 2 | 831 | 20.8 |
| Calibration 3 | 833 | 21.1 |
| 100% | 832 | 21.2 |
| 90% | 734 | 21.1 |
| 80% | 608 | 20.9 |
| 70% | 502 | 21.0 |
| 60% | 435 | 20.9 |
| 50% | 369 | 20.9 |
| 40% | 334 | 20.9 |
| 30% | 269 | 20.9 |
| 20% | 241 | 20.9 |
| 10% | 213 | 21.3 |
| Active Idle | 153 | 21.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA Inc. |
| Model: | WT210 |
| Serial Number: | 91M412343 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 1GA23009139-0009 |
| Date of Calibration: | 31-Jul-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | PCSensor.com |
| Model: | USB9097 + DS18B20 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |

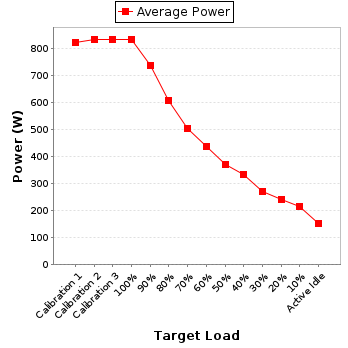

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 3.77 | 5.0 | 0.993 | 821 | 0.4% |
| Calibration 2 | 219 | 300.0 | 3.81 | 5.0 | 0.994 | 831 | 0.4% |
| Calibration 3 | 220 | 300.0 | 3.82 | 5.0 | 0.994 | 833 | 0.4% |
| 100% | 220 | 300.0 | 3.81 | 5.0 | 0.994 | 832 | 0.4% |
| 90% | 220 | 300.0 | 3.39 | 5.0 | 0.992 | 734 | 0.4% |
| 80% | 221 | 300.0 | 2.81 | 5.0 | 0.989 | 608 | 0.4% |
| 70% | 221 | 300.0 | 2.30 | 5.0 | 0.986 | 502 | 0.5% |
| 60% | 222 | 300.0 | 1.99 | 5.0 | 0.983 | 435 | 0.5% |
| 50% | 222 | 300.0 | 1.70 | 2.0 | 0.977 | 369 | 0.4% |
| 40% | 223 | 300.0 | 1.54 | 2.0 | 0.973 | 334 | 0.4% |
| 30% | 223 | 300.0 | 1.25 | 2.0 | 0.963 | 269 | 0.4% |
| 20% | 223 | 300.0 | 1.13 | 2.0 | 0.955 | 241 | 0.5% |
| 10% | 223 | 300.0 | 1.01 | 2.0 | 0.944 | 213 | 0.5% |
| Active Idle | 223 | 300.0 | 0.753 | 2.0 | 0.913 | 153 | 0.6% |
