SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant ML30 Gen11 | SPECpower_ssj2008 = 10,206 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 24, 2023 |
| Hardware Availability: | Dec-2023 | Software Availability: | Jul-2023 | Publication: | Jan 17, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

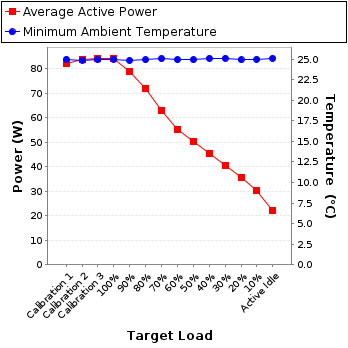

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 82.3 | 25.0 |
| Calibration 2 | 83.7 | 24.9 |
| Calibration 3 | 84.2 | 24.9 |
| 100% | 83.9 | 25.0 |
| 90% | 78.6 | 24.9 |
| 80% | 72.0 | 24.9 |
| 70% | 63.0 | 25.1 |
| 60% | 55.0 | 24.9 |
| 50% | 50.2 | 24.9 |
| 40% | 45.4 | 25.1 |
| 30% | 40.6 | 25.1 |
| 20% | 35.6 | 24.9 |
| 10% | 30.2 | 25.0 |
| Active Idle | 22.2 | 25.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22005V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-HF8LX-20-1 |
| Date of Calibration: | 19-Jul-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 0.472 | 1.0 | 0.827 | 82.3 | 0.5% |
| Calibration 2 | 211 | 300.0 | 0.477 | 1.0 | 0.832 | 83.7 | 0.5% |
| Calibration 3 | 211 | 300.0 | 0.480 | 1.0 | 0.833 | 84.2 | 0.5% |
| 100% | 211 | 300.0 | 0.478 | 1.0 | 0.832 | 83.9 | 0.5% |
| 90% | 211 | 300.0 | 0.456 | 1.0 | 0.817 | 78.6 | 0.6% |
| 80% | 211 | 300.0 | 0.429 | 1.0 | 0.797 | 72.0 | 0.6% |
| 70% | 211 | 300.0 | 0.392 | 1.0 | 0.762 | 63.0 | 0.6% |
| 60% | 211 | 300.0 | 0.363 | 1.0 | 0.720 | 55.0 | 0.7% |
| 50% | 211 | 300.0 | 0.347 | 1.0 | 0.687 | 50.2 | 0.7% |
| 40% | 210 | 300.0 | 0.333 | 1.0 | 0.649 | 45.4 | 0.8% |
| 30% | 211 | 300.0 | 0.317 | 1.0 | 0.609 | 40.6 | 0.8% |
| 20% | 211 | 300.0 | 0.302 | 1.0 | 0.558 | 35.6 | 0.9% |
| 10% | 211 | 300.0 | 0.301 | 0.5 | 0.475 | 30.2 | 0.7% |
| Active Idle | 211 | 300.0 | 0.294 | 0.5 | 0.358 | 22.2 | 0.9% |
