SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL20 Gen11 | SPECpower_ssj2008 = 8,515 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Nov 17, 2023 |
| Hardware Availability: | Dec-2023 | Software Availability: | Jul-2023 | Publication: | Jan 17, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

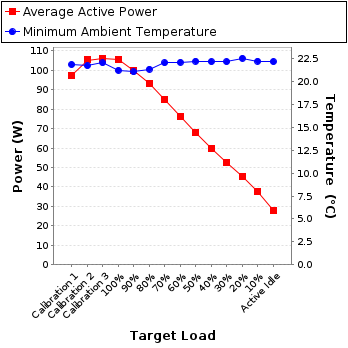

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 97.5 | 21.9 |
| Calibration 2 | 105 | 21.8 |
| Calibration 3 | 106 | 22.1 |
| 100% | 106 | 21.2 |
| 90% | 99.8 | 21.1 |
| 80% | 93.3 | 21.4 |
| 70% | 85.0 | 22.1 |
| 60% | 76.3 | 22.1 |
| 50% | 67.9 | 22.2 |
| 40% | 59.6 | 22.2 |
| 30% | 52.6 | 22.2 |
| 20% | 45.6 | 22.6 |
| 10% | 37.8 | 22.2 |
| Active Idle | 28.0 | 22.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB53023 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-HF8LX-40-1 |
| Date of Calibration: | 20-Jul-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

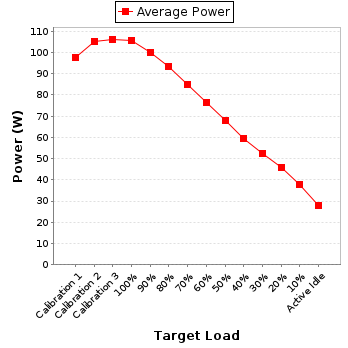

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 0.483 | 1.0 | 0.963 | 97.5 | 0.5% |
| Calibration 2 | 210 | 300.0 | 0.519 | 1.0 | 0.967 | 105 | 0.5% |
| Calibration 3 | 210 | 300.0 | 0.523 | 1.0 | 0.968 | 106 | 0.5% |
| 100% | 210 | 300.0 | 0.521 | 1.0 | 0.967 | 106 | 0.5% |
| 90% | 210 | 300.0 | 0.494 | 0.5 | 0.964 | 99.8 | 0.4% |
| 80% | 210 | 300.0 | 0.463 | 0.5 | 0.959 | 93.3 | 0.4% |
| 70% | 210 | 300.0 | 0.424 | 0.5 | 0.953 | 85.0 | 0.4% |
| 60% | 211 | 300.0 | 0.383 | 0.5 | 0.946 | 76.3 | 0.4% |
| 50% | 210 | 300.0 | 0.345 | 0.5 | 0.936 | 67.9 | 0.4% |
| 40% | 210 | 300.0 | 0.307 | 0.5 | 0.923 | 59.6 | 0.5% |
| 30% | 211 | 300.0 | 0.276 | 0.5 | 0.903 | 52.6 | 0.5% |
| 20% | 210 | 300.0 | 0.248 | 0.5 | 0.873 | 45.6 | 0.6% |
| 10% | 210 | 300.0 | 0.229 | 0.5 | 0.786 | 37.8 | 0.7% |
| Active Idle | 210 | 300.0 | 0.205 | 0.5 | 0.650 | 28.0 | 0.9% |
