SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Quanta Cloud Technology QuantaGrid D44N-1U | SPECpower_ssj2008 = 26,377 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Oct 17, 2023 |
| Hardware Availability: | Nov-2023 | Software Availability: | Jul-2023 | Publication: | Jan 16, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

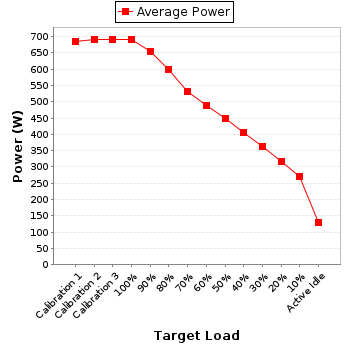

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 685 | 20.8 |
| Calibration 2 | 691 | 20.8 |
| Calibration 3 | 692 | 20.8 |
| 100% | 692 | 20.9 |
| 90% | 653 | 20.9 |
| 80% | 598 | 20.9 |
| 70% | 532 | 20.9 |
| 60% | 489 | 20.9 |
| 50% | 448 | 20.9 |
| 40% | 406 | 20.8 |
| 30% | 363 | 20.8 |
| 20% | 318 | 20.8 |
| 10% | 270 | 20.8 |
| Active Idle | 129 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91MC16750 |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | SGS |
| Accredited by: | Tai Yi Electronics & Surveillance Co, Ltd. Calibration Laboratory,Taiwan |
| Calibration Label: | ECR2317157 |
| Date of Calibration: | 16-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 222 | 300.0 | 3.10 | 5.0 | 0.996 | 685 | 0.4% |
| Calibration 2 | 221 | 300.0 | 3.14 | 5.0 | 0.995 | 691 | 0.4% |
| Calibration 3 | 220 | 300.0 | 3.16 | 5.0 | 0.996 | 692 | 0.4% |
| 100% | 219 | 300.0 | 3.17 | 5.0 | 0.996 | 692 | 0.4% |
| 90% | 219 | 300.0 | 2.99 | 5.0 | 0.995 | 653 | 0.4% |
| 80% | 219 | 300.0 | 2.75 | 5.0 | 0.994 | 598 | 0.4% |
| 70% | 220 | 300.0 | 2.44 | 5.0 | 0.992 | 532 | 0.5% |
| 60% | 220 | 300.0 | 2.25 | 5.0 | 0.990 | 489 | 0.5% |
| 50% | 220 | 300.0 | 2.06 | 5.0 | 0.988 | 448 | 0.5% |
| 40% | 220 | 300.0 | 1.87 | 5.0 | 0.985 | 406 | 0.6% |
| 30% | 220 | 300.0 | 1.68 | 5.0 | 0.982 | 363 | 0.6% |
| 20% | 221 | 300.0 | 1.47 | 5.0 | 0.978 | 318 | 0.7% |
| 10% | 221 | 300.0 | 1.26 | 2.0 | 0.971 | 270 | 0.4% |
| Active Idle | 221 | 300.0 | 0.651 | 2.0 | 0.899 | 129 | 0.7% |
