FALINUX, Inc. AnyStor-700EC-NM SPECpower_ssj2008 = 12,718 overall ssj_ops/watt
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Single Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Nov 1, 2023
Hardware Availability: Aug-2023 Software Availability: Jul-2023 Publication: Jan 17, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 139 29.4
Calibration 2 140 29.5
Calibration 3 141 29.4
100% 140 29.4
90% 125 29.5
80% 114 29.4
70% 106 29.3
60% 98.6 29.2
50% 91.5 29.1
40% 84.6 29.0
30% 78.1 28.9
20% 71.3 28.9
10% 64.1 29.0
Active Idle 53.9 29.1

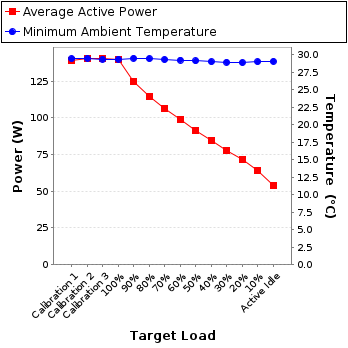

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA
Model: WT310E
Serial Number: C3ZE05055E
Connectivity: USB
Input Connection: Default
Metrology Institute: Standard Calibration Technology Institute Co., LTD
Accredited by: KOLAS (Korea Laboratory Accreditation Scheme)
Calibration Label: SC2305-14214-1
Date of Calibration: 23-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-ed9a21d2-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB(UART)
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 0.725 2.0 0.895 139 0.4%
Calibration 2 214 300.0 0.733 2.0 0.894 140 0.4%
Calibration 3 214 300.0 0.731 2.0 0.896 141 0.4%
100% 214 300.0 0.729 2.0 0.895 140 0.4%
90% 214 300.0 0.667 2.0 0.874 125 0.4%
80% 215 300.0 0.624 2.0 0.854 114 0.5%
70% 214 300.0 0.593 2.0 0.836 106 0.5%
60% 214 300.0 0.565 2.0 0.816 98.6 0.5%
50% 214 300.0 0.538 1.0 0.794 91.5 0.4%
40% 214 300.0 0.513 1.0 0.769 84.6 0.4%
30% 214 300.0 0.491 1.0 0.743 78.1 0.4%
20% 215 300.0 0.466 1.0 0.713 71.3 0.5%
10% 214 300.0 0.442 1.0 0.676 64.1 0.5%
Active Idle 214 300.0 0.411 1.0 0.613 53.9 0.5%

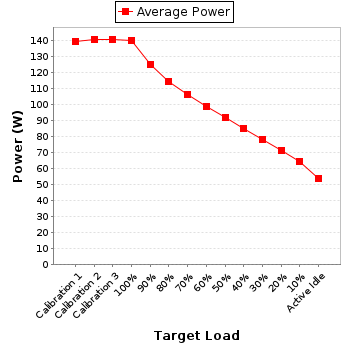

Power details for pwr1
