New H3C Technologies Co., Ltd. H3C UniServer R6700 G6 | ssj_ops@100% = 141,878 | ||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Oct 27, 2023 |
Hardware Availability: | Oct-2023 | Software Availability: | Oct-2023 | Publication: | Nov 22, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

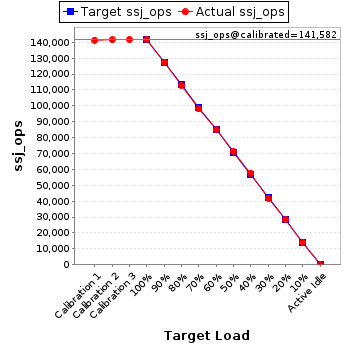

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 141,381 | ||
Calibration 2 | 141,450 | ||
Calibration 3 | 141,714 | ||
ssj_ops@calibrated=141,582 | |||
100% | 100.2% | 141,582 | 141,878 |
90% | 89.9% | 127,424 | 127,328 |
80% | 79.8% | 113,266 | 113,020 |
70% | 69.2% | 99,108 | 97,991 |
60% | 59.9% | 84,949 | 84,798 |
50% | 50.2% | 70,791 | 71,144 |
40% | 40.7% | 56,633 | 57,659 |
30% | 29.6% | 42,475 | 41,925 |
20% | 20.1% | 28,316 | 28,452 |
10% | 9.8% | 14,158 | 13,945 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer R6700 G6 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8490H 1.90GHz |
CPU Characteristics: | 60 Core, 1.90GHz, 112.5MB L3 Cache |
CPU Frequency (MHz): | 1900 |
CPU(s) Enabled: | 240 cores, 4 chips, 60 cores/chip |
Hardware Threads: | 480 (2 / core) |
CPU(s) Orderable: | 1,2,3,4 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 2 MB I+D on chip per core |
Tertiary Cache: | 115200 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 1024 |
# and size of DIMM: | 32 x 32 GB |
Memory Details: | 32 x 32GB 2Rx8 PC5-4800B-R; cpu1-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0; cpu2-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0; cpu3-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0; cpu4-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0; |
Power Supply Quantity and Rating (W): | 2 x 1600 |
Power Supply Details: | GW-CRPS1600D2 |
Disk Drive: | 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Quad-port Intel I350 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 4/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2019 Datacenter |
OS Version: | Version 1809(OS Build 17663.1) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode) |
JVM Command-line Options: | -server -Xmn1500m -Xms1625m -Xmx1625m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /NODE[0-15] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000] |
JVM Instances: | 240 |
JVM Initial Heap (MB): | 1625 |
JVM Maximum Heap (MB): | 1625 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 6.00.27 |
Management Firmware Version: | 1.58 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | None |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 10,318,588 | 1,384 | |
Payment | 10,318,588 | |||
Order Status | 1,031,861 | |||
Delivery | 1,031,859 | |||
Stock Level | 1,031,860 | |||
Customer Report | 10,318,591 | |||
Calibration 2 | New Order | 10,289,433 | 1,384 | |
Payment | 10,289,433 | |||
Order Status | 1,028,945 | |||
Delivery | 1,028,944 | |||
Stock Level | 1,028,942 | |||
Customer Report | 10,289,428 | |||
Calibration 3 | New Order | 10,310,638 | 1,384 | |
Payment | 10,310,636 | |||
Order Status | 1,031,064 | |||
Delivery | 1,031,063 | |||
Stock Level | 1,031,062 | |||
Customer Report | 10,310,639 | |||
100% | 100.2% | New Order | 10,319,545 | 1,384 |
Payment | 10,319,547 | |||
Order Status | 1,031,955 | |||
Delivery | 1,031,955 | |||
Stock Level | 1,031,952 | |||
Customer Report | 10,319,543 | |||
90% | 89.9% | New Order | 9,261,985 | 1,384 |
Payment | 9,261,984 | |||
Order Status | 926,199 | |||
Delivery | 926,198 | |||
Stock Level | 926,199 | |||
Customer Report | 9,261,984 | |||
80% | 79.8% | New Order | 8,222,896 | 1,384 |
Payment | 8,222,892 | |||
Order Status | 822,290 | |||
Delivery | 822,290 | |||
Stock Level | 822,290 | |||
Customer Report | 8,222,899 | |||
70% | 69.2% | New Order | 7,130,401 | 1,384 |
Payment | 7,130,401 | |||
Order Status | 713,040 | |||
Delivery | 713,041 | |||
Stock Level | 713,041 | |||
Customer Report | 7,130,403 | |||
60% | 59.9% | New Order | 6,171,195 | 1,384 |
Payment | 6,171,192 | |||
Order Status | 617,118 | |||
Delivery | 617,119 | |||
Stock Level | 617,119 | |||
Customer Report | 6,171,192 | |||
50% | 50.2% | New Order | 5,176,748 | 1,384 |
Payment | 5,176,745 | |||
Order Status | 517,675 | |||
Delivery | 517,675 | |||
Stock Level | 517,675 | |||
Customer Report | 5,176,746 | |||
40% | 40.7% | New Order | 4,195,882 | 1,384 |
Payment | 4,195,879 | |||
Order Status | 419,589 | |||
Delivery | 419,588 | |||
Stock Level | 419,588 | |||
Customer Report | 4,195,874 | |||
30% | 29.6% | New Order | 3,050,122 | 1,384 |
Payment | 3,050,114 | |||
Order Status | 305,011 | |||
Delivery | 305,012 | |||
Stock Level | 305,011 | |||
Customer Report | 3,050,122 | |||
20% | 20.1% | New Order | 2,069,252 | 1,384 |
Payment | 2,069,253 | |||
Order Status | 206,924 | |||
Delivery | 206,926 | |||
Stock Level | 206,927 | |||
Customer Report | 2,069,254 | |||
10% | 9.8% | New Order | 1,014,205 | 1,384 |
Payment | 1,014,217 | |||
Order Status | 101,422 | |||
Delivery | 101,421 | |||
Stock Level | 101,420 | |||
Customer Report | 1,014,211 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
