New H3C Technologies Co., Ltd. H3C UniServer R6700 G6 | ssj_ops@100% = 140,930 | ||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Oct 27, 2023 |
Hardware Availability: | Oct-2023 | Software Availability: | Oct-2023 | Publication: | Nov 22, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

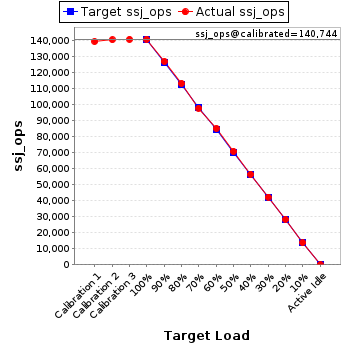

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 139,538 | ||
Calibration 2 | 140,579 | ||
Calibration 3 | 140,908 | ||
ssj_ops@calibrated=140,744 | |||
100% | 100.1% | 140,744 | 140,930 |
90% | 90.3% | 126,669 | 127,057 |
80% | 80.6% | 112,595 | 113,398 |
70% | 69.5% | 98,520 | 97,874 |
60% | 60.5% | 84,446 | 85,210 |
50% | 50.4% | 70,372 | 70,885 |
40% | 40.1% | 56,297 | 56,498 |
30% | 30.1% | 42,223 | 42,300 |
20% | 20.2% | 28,149 | 28,377 |
10% | 9.8% | 14,074 | 13,773 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer R6700 G6 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8490H 1.90GHz |
CPU Characteristics: | 60 Core, 1.90GHz, 112.5MB L3 Cache |
CPU Frequency (MHz): | 1900 |
CPU(s) Enabled: | 240 cores, 4 chips, 60 cores/chip |
Hardware Threads: | 480 (2 / core) |
CPU(s) Orderable: | 1,2,3,4 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 2 MB I+D on chip per core |
Tertiary Cache: | 115200 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 1024 |
# and size of DIMM: | 32 x 32 GB |
Memory Details: | 32 x 32GB 2Rx8 PC5-4800B-R; cpu1-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0; cpu2-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0; cpu3-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0; cpu4-slots 1-D0, 2-D0, 3-D0, 4-D0, 5-D0, 6-D0, 7-D0, 8-D0; |
Power Supply Quantity and Rating (W): | 2 x 1600 |
Power Supply Details: | GW-CRPS1600D2 |
Disk Drive: | 1 x Intel M.2 SSD 240GB SSDSCKKB240GZ |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Quad-port Intel I350 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 4/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2019 Datacenter |
OS Version: | Version 1809(OS Build 17663.1) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode) |
JVM Command-line Options: | -server -Xmn1500m -Xms1625m -Xmx1625m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /NODE[0-15] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000] |
JVM Instances: | 240 |
JVM Initial Heap (MB): | 1625 |
JVM Maximum Heap (MB): | 1625 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 6.00.27 |
Management Firmware Version: | 1.58 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | None |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 10,209,831 | 1,384 | |
Payment | 10,209,822 | |||
Order Status | 1,020,981 | |||
Delivery | 1,020,982 | |||
Stock Level | 1,020,983 | |||
Customer Report | 10,209,826 | |||
Calibration 2 | New Order | 10,226,742 | 1,384 | |
Payment | 10,226,738 | |||
Order Status | 1,022,675 | |||
Delivery | 1,022,673 | |||
Stock Level | 1,022,676 | |||
Customer Report | 10,226,741 | |||
Calibration 3 | New Order | 10,259,167 | 1,384 | |
Payment | 10,259,167 | |||
Order Status | 1,025,915 | |||
Delivery | 1,025,917 | |||
Stock Level | 1,025,915 | |||
Customer Report | 10,259,168 | |||
100% | 100.1% | New Order | 10,253,480 | 1,384 |
Payment | 10,253,486 | |||
Order Status | 1,025,348 | |||
Delivery | 1,025,348 | |||
Stock Level | 1,025,349 | |||
Customer Report | 10,253,480 | |||
90% | 90.3% | New Order | 9,241,293 | 1,384 |
Payment | 9,241,298 | |||
Order Status | 924,130 | |||
Delivery | 924,131 | |||
Stock Level | 924,130 | |||
Customer Report | 9,241,299 | |||
80% | 80.6% | New Order | 8,247,200 | 1,384 |
Payment | 8,247,199 | |||
Order Status | 824,720 | |||
Delivery | 824,720 | |||
Stock Level | 824,721 | |||
Customer Report | 8,247,202 | |||
70% | 69.5% | New Order | 7,123,629 | 1,384 |
Payment | 7,123,626 | |||
Order Status | 712,363 | |||
Delivery | 712,364 | |||
Stock Level | 712,363 | |||
Customer Report | 7,123,614 | |||
60% | 60.5% | New Order | 6,199,586 | 1,384 |
Payment | 6,199,594 | |||
Order Status | 619,958 | |||
Delivery | 619,958 | |||
Stock Level | 619,960 | |||
Customer Report | 6,199,593 | |||
50% | 50.4% | New Order | 5,159,257 | 1,384 |
Payment | 5,159,259 | |||
Order Status | 515,926 | |||
Delivery | 515,926 | |||
Stock Level | 515,926 | |||
Customer Report | 5,159,256 | |||
40% | 40.1% | New Order | 4,115,407 | 1,384 |
Payment | 4,115,406 | |||
Order Status | 411,542 | |||
Delivery | 411,540 | |||
Stock Level | 411,541 | |||
Customer Report | 4,115,409 | |||
30% | 30.1% | New Order | 3,078,921 | 1,384 |
Payment | 3,078,919 | |||
Order Status | 307,891 | |||
Delivery | 307,892 | |||
Stock Level | 307,892 | |||
Customer Report | 3,078,920 | |||
20% | 20.2% | New Order | 2,063,939 | 1,384 |
Payment | 2,063,939 | |||
Order Status | 206,394 | |||
Delivery | 206,395 | |||
Stock Level | 206,394 | |||
Customer Report | 2,063,939 | |||
10% | 9.8% | New Order | 1,001,696 | 1,384 |
Payment | 1,001,696 | |||
Order Status | 100,170 | |||
Delivery | 100,170 | |||
Stock Level | 100,168 | |||
Customer Report | 1,001,695 | |||
Active Idle | New Order | 0 | 1,384 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
