SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. ESC4000-E11 | SPECpower_ssj2008 = 17,190 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Oct 11, 2023 |
| Hardware Availability: | Jul-2023 | Software Availability: | Aug-2023 | Publication: | Nov 8, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

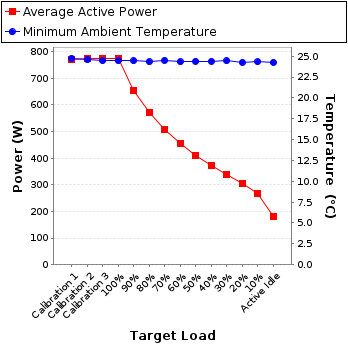

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 770 | 24.8 |
| Calibration 2 | 774 | 24.6 |
| Calibration 3 | 775 | 24.4 |
| 100% | 775 | 24.4 |
| 90% | 654 | 24.4 |
| 80% | 570 | 24.3 |
| 70% | 509 | 24.5 |
| 60% | 454 | 24.3 |
| 50% | 411 | 24.4 |
| 40% | 372 | 24.4 |
| 30% | 339 | 24.4 |
| 20% | 306 | 24.2 |
| 10% | 268 | 24.3 |
| Active Idle | 181 | 24.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-230602F02201 |
| Date of Calibration: | 2-Jun-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |

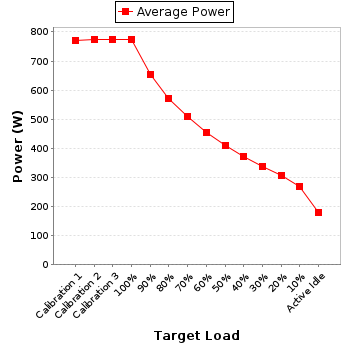

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300.0 | 3.80 | 5.0 | 0.952 | 770 | 0.4% |
| Calibration 2 | 213 | 300.0 | 3.81 | 5.0 | 0.952 | 774 | 0.4% |
| Calibration 3 | 213 | 300.0 | 3.81 | 5.0 | 0.952 | 775 | 0.4% |
| 100% | 213 | 300.0 | 3.81 | 5.0 | 0.953 | 775 | 0.4% |
| 90% | 214 | 300.0 | 3.26 | 5.0 | 0.938 | 654 | 0.5% |
| 80% | 214 | 300.0 | 2.87 | 5.0 | 0.928 | 570 | 0.5% |
| 70% | 214 | 300.0 | 2.59 | 5.0 | 0.920 | 509 | 0.5% |
| 60% | 214 | 300.0 | 2.33 | 5.0 | 0.911 | 454 | 0.6% |
| 50% | 214 | 300.0 | 2.13 | 5.0 | 0.899 | 411 | 0.6% |
| 40% | 215 | 300.0 | 1.96 | 5.0 | 0.886 | 372 | 0.7% |
| 30% | 215 | 300.0 | 1.81 | 2.0 | 0.872 | 339 | 0.4% |
| 20% | 215 | 300.0 | 1.66 | 2.0 | 0.858 | 306 | 0.5% |
| 10% | 215 | 300.0 | 1.49 | 2.0 | 0.836 | 268 | 0.5% |
| Active Idle | 216 | 300.0 | 1.11 | 2.0 | 0.753 | 181 | 0.7% |
