SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. ESC4000-E11 | SPECpower_ssj2008 = 16,603 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Oct 17, 2023 |
| Hardware Availability: | Jul-2023 | Software Availability: | Jan-2023 | Publication: | Nov 8, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

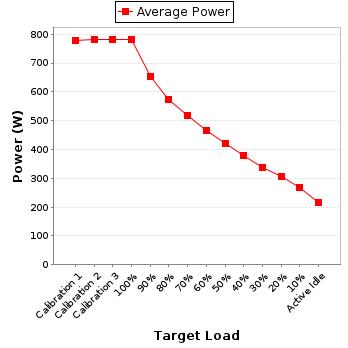

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 779 | 24.9 |
| Calibration 2 | 782 | 24.9 |
| Calibration 3 | 783 | 25.0 |
| 100% | 781 | 24.5 |
| 90% | 654 | 24.3 |
| 80% | 573 | 24.4 |
| 70% | 518 | 24.4 |
| 60% | 466 | 24.3 |
| 50% | 420 | 24.4 |
| 40% | 378 | 24.4 |
| 30% | 339 | 24.6 |
| 20% | 306 | 24.4 |
| 10% | 269 | 24.6 |
| Active Idle | 216 | 23.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-230602F02201 |
| Date of Calibration: | 2-Jun-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 3.77 | 5.0 | 0.956 | 779 | 0.4% |
| Calibration 2 | 216 | 300.0 | 3.79 | 5.0 | 0.957 | 782 | 0.4% |
| Calibration 3 | 216 | 300.0 | 3.79 | 5.0 | 0.957 | 783 | 0.4% |
| 100% | 216 | 300.0 | 3.78 | 5.0 | 0.957 | 781 | 0.4% |
| 90% | 216 | 300.0 | 3.21 | 5.0 | 0.944 | 654 | 0.4% |
| 80% | 216 | 300.0 | 2.84 | 5.0 | 0.936 | 573 | 0.5% |
| 70% | 216 | 300.0 | 2.58 | 5.0 | 0.931 | 518 | 0.5% |
| 60% | 215 | 300.0 | 2.34 | 5.0 | 0.925 | 466 | 0.6% |
| 50% | 216 | 300.0 | 2.13 | 5.0 | 0.916 | 420 | 0.6% |
| 40% | 216 | 300.0 | 1.94 | 5.0 | 0.904 | 378 | 0.6% |
| 30% | 216 | 300.0 | 1.76 | 5.0 | 0.893 | 339 | 0.7% |
| 20% | 215 | 300.0 | 1.61 | 2.0 | 0.882 | 306 | 0.5% |
| 10% | 215 | 300.0 | 1.45 | 2.0 | 0.864 | 269 | 0.5% |
| Active Idle | 215 | 300.0 | 1.22 | 2.0 | 0.822 | 216 | 0.6% |
