Dell Inc. PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz) ssj_ops@100% = 28,513,810
ssj_ops@100% per Host = 7,128,452
ssj_ops@100% per JVM = 222,764
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 1, 2023
Hardware Availability: Dec-2023 Software Availability: Feb-2022 Publication: Oct 30, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     29,120,960
Calibration 2     28,766,662
Calibration 3     28,761,438
ssj_ops@calibrated=28,764,050
100% 99.1% 28,764,050 28,513,810
90% 90.0% 25,887,645 25,899,171
80% 80.0% 23,011,240 23,010,618
70% 70.0% 20,134,835 20,142,459
60% 60.0% 17,258,430 17,252,062
50% 50.0% 14,382,025 14,389,362
40% 40.0% 11,505,620 11,495,658
30% 30.0% 8,629,215 8,618,805
20% 20.0% 5,752,810 5,757,409
10% 10.0% 2,876,405 2,877,305
Active Idle   0 0

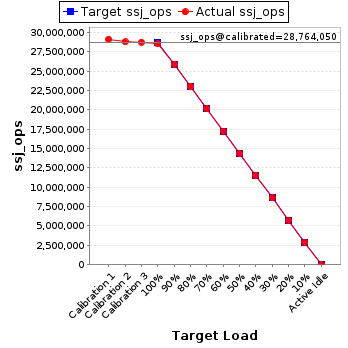

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 4 256 512 384 4 128
System Under Test
Shared Hardware
Shared Hardware
Enclosure: C6600
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1800
Power Supply Details: 1800W, Dell p/n H66J1
Network Switch: None
Network Switch Details: None
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: PowerEdge C6615
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz)
Form Factor: Blade
CPU Name: AMD EPYC 8534P
CPU Characteristics: 64-Core, 2.30GHz, 128 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 128 MB I+D on chip per chip, 16 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 6 x 16 GB
Memory Details: 16GB 1Rx8 PC5-4800-R (Slots A1-6 populated)
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x Dell NVMe PE8010 RI M.2 960GB, Dell p/n 21GXV
Disk Controller: BOSS controller card, Dell p/n 3YGWT
# and type of Network Interface Cards (NICs) Installed: Onboard 1 x Broadcom NetXtreme Gigabit Ethernet (BCM5720)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver power plan enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2(OS Build 20348.558)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -XX:AllocatePrefetchDistance=256 -XX:SurvivorRatio=8 -XX:TargetSurvivorRatio=99 -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=3900 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-7] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 32
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 0.3.3
Management Firmware Version: 7.00.55.00 (Build 10)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
IDRAC Thermal Set to Minimum Power (Performance per Watt Optimized)
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
SC665C2 7,131,095
SC665C4 7,155,392
SP_SUT 7,130,206
WIN-COO07IF35V5 7,097,117
ssj_ops@100% 28,513,810
ssj_ops@100% per Host 7,128,452
ssj_ops@100% per JVM 222,764
Graph of per-host results
Host 'SC665C2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,288,176
Calibration 2     7,201,248
Calibration 3     7,189,851
ssj_ops@calibrated=7,195,549
100% 99.1% 7,195,549 7,131,095
90% 90.1% 6,475,994 6,482,070
80% 79.9% 5,756,439 5,749,293
70% 70.1% 5,036,885 5,043,582
60% 59.9% 4,317,330 4,310,383
50% 50.0% 3,597,775 3,597,013
40% 39.9% 2,878,220 2,872,968
30% 30.0% 2,158,665 2,157,944
20% 20.1% 1,439,110 1,442,915
10% 10.0% 719,555 719,131
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SC665C4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,303,630
Calibration 2     7,195,333
Calibration 3     7,210,605
ssj_ops@calibrated=7,202,969
100% 99.3% 7,202,969 7,155,392
90% 90.0% 6,482,672 6,485,873
80% 80.1% 5,762,375 5,766,542
70% 70.1% 5,042,078 5,046,333
60% 59.9% 4,321,781 4,316,897
50% 50.0% 3,601,484 3,604,734
40% 40.0% 2,881,187 2,881,195
30% 30.0% 2,160,891 2,160,441
20% 20.0% 1,440,594 1,440,553
10% 10.0% 720,297 720,975
Active Idle   0 0

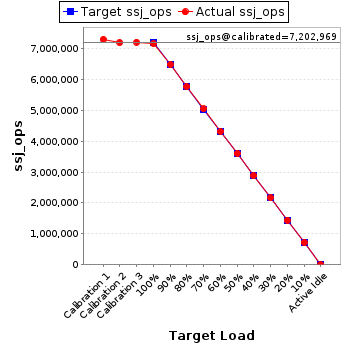

Graph of results
See the Host Performance Report for additional details.
Host 'SP_SUT' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,268,523
Calibration 2     7,197,233
Calibration 3     7,188,383
ssj_ops@calibrated=7,192,808
100% 99.1% 7,192,808 7,130,206
90% 90.0% 6,473,527 6,471,151
80% 79.9% 5,754,246 5,750,328
70% 70.0% 5,034,965 5,032,460
60% 60.0% 4,315,685 4,318,938
50% 50.0% 3,596,404 3,598,824
40% 40.0% 2,877,123 2,879,804
30% 30.0% 2,157,842 2,154,684
20% 20.0% 1,438,562 1,437,070
10% 10.0% 719,281 719,284
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-COO07IF35V5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,260,632
Calibration 2     7,172,848
Calibration 3     7,172,600
ssj_ops@calibrated=7,172,724
100% 98.9% 7,172,724 7,097,117
90% 90.1% 6,455,452 6,460,076
80% 80.1% 5,738,179 5,744,454
70% 70.0% 5,020,907 5,020,085
60% 60.0% 4,303,635 4,305,844
50% 50.0% 3,586,362 3,588,790
40% 39.9% 2,869,090 2,861,690
30% 29.9% 2,151,817 2,145,736
20% 20.0% 1,434,545 1,436,871
10% 10.0% 717,272 717,916
Active Idle   0 0

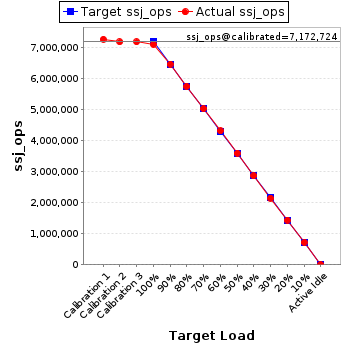

Graph of results
See the Host Performance Report for additional details.
