SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| New H3C Technologies Co., Ltd. H3C UniServer R6900 G6 | SPECpower_ssj2008 = 14,715 overall ssj_ops/watt | ||||
| Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
| Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Aug 23, 2023 |
| Hardware Availability: | Aug-2023 | Software Availability: | Aug-2023 | Publication: | Oct 10, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

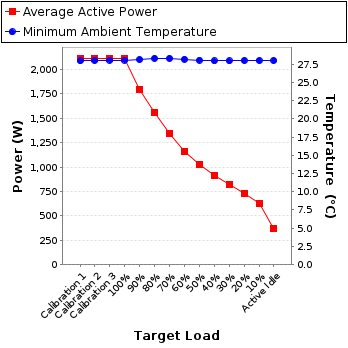

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 2,108 | 27.9 |
| Calibration 2 | 2,114 | 28.0 |
| Calibration 3 | 2,115 | 28.1 |
| 100% | 2,115 | 28.1 |
| 90% | 1,800 | 28.1 |
| 80% | 1,555 | 28.3 |
| 70% | 1,348 | 28.3 |
| 60% | 1,162 | 28.2 |
| 50% | 1,026 | 28.1 |
| 40% | 916 | 27.9 |
| 30% | 818 | 27.9 |
| 20% | 728 | 28.0 |
| 10% | 628 | 28.0 |
| Active Idle | 373 | 28.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | CHROMA |
| Model: | 66203 |
| Serial Number: | 662030000500 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | CEPREI Calibration and Testing Center |
| Calibration Label: | B210202003 |
| Date of Calibration: | 23-Nov-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU1 & PSU2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | DIGI |
| Model: | Watchport/H |
| Driver Version: | 6.2.1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Placed in front the main airflow inlet of the SUT less than 50mm |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 237 | 300.0 | 8.91 | 20.0 | 0.996 | 2,108 | 0.4% |
| Calibration 2 | 237 | 300.0 | 8.94 | 20.0 | 0.997 | 2,114 | 0.4% |
| Calibration 3 | 237 | 300.0 | 8.94 | 20.0 | 0.997 | 2,115 | 0.4% |
| 100% | 238 | 300.0 | 8.92 | 20.0 | 0.998 | 2,115 | 0.4% |
| 90% | 237 | 300.0 | 7.62 | 20.0 | 0.996 | 1,800 | 0.4% |
| 80% | 238 | 300.0 | 6.57 | 20.0 | 0.995 | 1,555 | 0.5% |
| 70% | 239 | 300.0 | 5.68 | 20.0 | 0.992 | 1,348 | 0.5% |
| 60% | 240 | 300.0 | 4.89 | 20.0 | 0.992 | 1,162 | 0.6% |
| 50% | 239 | 300.0 | 4.33 | 20.0 | 0.991 | 1,026 | 0.7% |
| 40% | 240 | 300.0 | 3.84 | 20.0 | 0.995 | 916 | 0.8% |
| 30% | 240 | 300.0 | 3.43 | 20.0 | 0.993 | 818 | 0.8% |
| 20% | 240 | 300.0 | 3.06 | 5.0 | 0.991 | 728 | 0.3% |
| 10% | 240 | 300.0 | 2.64 | 2.0 | 0.988 | 628 | 0.2% |
| Active Idle | 241 | 300.0 | 1.60 | 2.0 | 0.969 | 373 | 0.3% |
