Dell Inc. PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz) ssj_ops@100% = 28,297,523
ssj_ops@100% per Host = 7,074,381
ssj_ops@100% per JVM = 221,074
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 12, 2023
Hardware Availability: Dec-2023 Software Availability: Feb-2022 Publication: Sep 27, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     28,990,350
Calibration 2     28,611,795
Calibration 3     28,583,681
ssj_ops@calibrated=28,597,738
100% 99.0% 28,597,738 28,297,523
90% 90.0% 25,737,964 25,747,619
80% 80.0% 22,878,190 22,883,838
70% 70.0% 20,018,416 20,026,531
60% 60.0% 17,158,643 17,155,399
50% 50.0% 14,298,869 14,307,164
40% 40.0% 11,439,095 11,426,877
30% 30.0% 8,579,321 8,576,741
20% 20.0% 5,719,548 5,717,129
10% 10.0% 2,859,774 2,862,916
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 4 256 512 384 4 128
System Under Test
Shared Hardware
Shared Hardware
Enclosure: C6615
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1800
Power Supply Details: 1800W, Dell p/n H66J1
Network Switch: None
Network Switch Details: None
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: PowerEdge C6615
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz)
Form Factor: Blade
CPU Name: AMD EPYC 8534P
CPU Characteristics: 64-Core, 2.30GHz, 128 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 128 MB I+D on chip per chip, 16 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 6 x 16 GB
Memory Details: 16GB 1Rx8 PC5-4800-R (Slots A1-6 populated)
Power Supply Quantity and Rating (W): 1 x 1800
Power Supply Details: 1800W, Dell p/n H66J1
Disk Drive: 1 x Dell NVMe PE8010 RI M.2 960GB, Dell p/n 21GXV
Disk Controller: BOSS controller card, Dell p/n 3YGWT
# and type of Network Interface Cards (NICs) Installed: Onboard 1 x Broadcom NetXtreme Gigabit Ethernet (BCM5720)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver power plan enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2(OS Build 20348.558)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -XX:AllocatePrefetchDistance=256 -XX:SurvivorRatio=8 -XX:TargetSurvivorRatio=99 -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=3900 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-7] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 32
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 0.3.3
Management Firmware Version: 7.00.55.00 (Build 10)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
IDRAC Thermal Set to Minimum Power (Performance per Watt Optimized)
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
SC665C2 7,099,575
SC665C4 7,053,023
SP_SUT 7,105,993
WIN-COO07IF35V5 7,038,932
ssj_ops@100% 28,297,523
ssj_ops@100% per Host 7,074,381
ssj_ops@100% per JVM 221,074

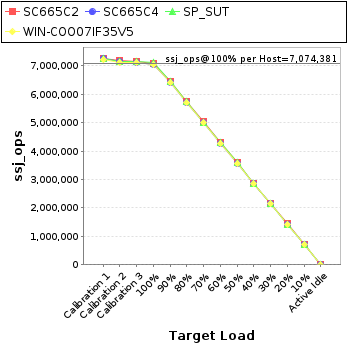

Graph of per-host results
Host 'SC665C2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,266,947
Calibration 2     7,173,157
Calibration 3     7,166,313
ssj_ops@calibrated=7,169,735
100% 99.0% 7,169,735 7,099,575
90% 90.1% 6,452,761 6,456,675
80% 80.0% 5,735,788 5,738,429
70% 70.1% 5,018,814 5,025,032
60% 60.0% 4,301,841 4,299,792
50% 50.1% 3,584,867 3,590,277
40% 40.0% 2,867,894 2,865,005
30% 30.0% 2,150,920 2,151,389
20% 20.0% 1,433,947 1,435,794
10% 10.0% 716,973 715,662
Active Idle   0 0

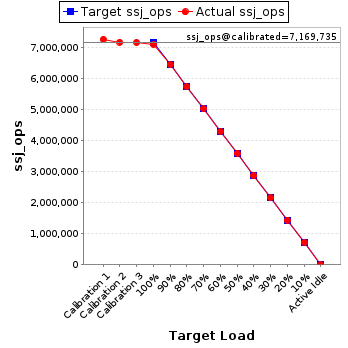

Graph of results
See the Host Performance Report for additional details.
Host 'SC665C4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,245,200
Calibration 2     7,139,485
Calibration 3     7,131,156
ssj_ops@calibrated=7,135,321
100% 98.8% 7,135,321 7,053,023
90% 90.0% 6,421,789 6,419,431
80% 80.1% 5,708,257 5,712,663
70% 70.0% 4,994,725 4,995,769
60% 59.9% 4,281,192 4,277,040
50% 50.0% 3,567,660 3,568,342
40% 39.9% 2,854,128 2,845,329
30% 30.0% 2,140,596 2,137,031
20% 20.0% 1,427,064 1,425,559
10% 10.0% 713,532 716,448
Active Idle   0 0

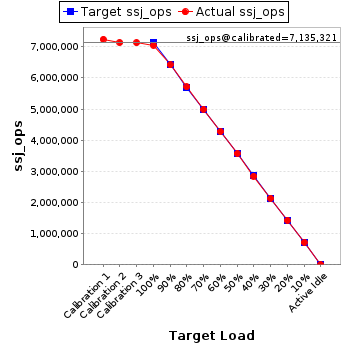

Graph of results
See the Host Performance Report for additional details.
Host 'SP_SUT' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,261,348
Calibration 2     7,169,666
Calibration 3     7,167,494
ssj_ops@calibrated=7,168,580
100% 99.1% 7,168,580 7,105,993
90% 90.1% 6,451,722 6,455,865
80% 80.0% 5,734,864 5,731,699
70% 69.8% 5,018,006 5,007,173
60% 60.0% 4,301,148 4,303,325
50% 50.0% 3,584,290 3,580,910
40% 40.0% 2,867,432 2,868,075
30% 30.0% 2,150,574 2,150,748
20% 20.0% 1,433,716 1,431,551
10% 10.0% 716,858 718,260
Active Idle   0 0

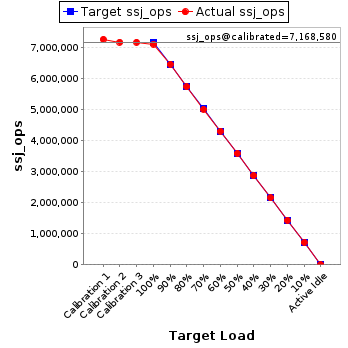

Graph of results
See the Host Performance Report for additional details.
Host 'WIN-COO07IF35V5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,216,855
Calibration 2     7,129,486
Calibration 3     7,118,718
ssj_ops@calibrated=7,124,102
100% 98.8% 7,124,102 7,038,932
90% 90.1% 6,411,692 6,415,647
80% 80.0% 5,699,281 5,701,047
70% 70.2% 4,986,871 4,998,556
60% 60.0% 4,274,461 4,275,242
50% 50.1% 3,562,051 3,567,635
40% 40.0% 2,849,641 2,848,468
30% 30.0% 2,137,231 2,137,574
20% 20.0% 1,424,820 1,424,224
10% 10.0% 712,410 712,546
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
