SPECpower_ssj2008

Supermicro AS-1015SV-WTNRT			SPECpower_ssj2008 = 13,599 overall ssj_ops/watt
Test Sponsor:	Supermicro	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro	Test Location:	San Jose, CA, USA	Test Date:	Sep 11, 2023
Hardware Availability:	Sep-2023	Software Availability:	Apr-2023	Publication:	Sep 27, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Supermicro
Model:	AS-1015SV-WTNRT
Form Factor:	1U
CPU Name:	AMD EPYC 8224PN
CPU Characteristics:	24-Core, 2.05 GHz, 64MB L3 Cache
CPU Frequency (MHz):	2050
CPU(s) Enabled:	24 cores, 1 chip, 24 cores/chip
Hardware Threads:	48 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	768 KB I + 768 KB D on chip per core
Secondary Cache:	24 MB I+D on chip per core
Tertiary Cache:	64 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	96
# and size of DIMM:	6 x 16 GB
Memory Details:	6 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W):	1 x 860
Power Supply Details:	PWS-861A-1R
Disk Drive:	1 x 1TB Samsung SSD 980 PRO
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual LAN BCM 57416 10GbE BaseT Ethernet Controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2 (OS Build 20348.1668)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options:	-server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	start/NODE[0] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000, 0xF00000000, 0xF000000000, 0xF0000000000, 0xF00000000000 ]
JVM Instances:	12
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	1.0
Management Firmware Version:	01.01.01
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5025230

Fan Mode: Standard Speed

SPECpower_ssj.props input.load_level.number_warehouses set to 48 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was affinitized to four threads.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0F02A00A00000000 for the AMD EPYC 8224PN processor

Software
Operating System (OS):	Microsoft Windows Server 2019 Standard
JVM Vendor:	OpenJDK
JVM Version:	OpenJDK 64-Bit Server VM 18.9 (build 11.0.2+9, mixed mode)
CCS Version:	1.2.6

None

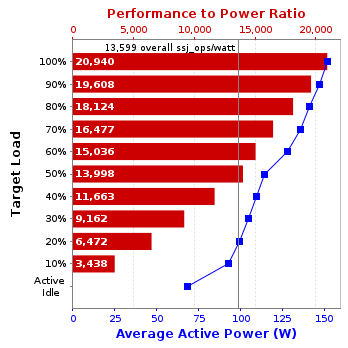

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	152	23.1
90%	147	23.1
80%	141	23.1
70%	136	23.1
60%	128	23.1
50%	114	23.1
40%	110	23.1
30%	105	23.0
20%	99.1	23.0
10%	93.1	23.0
Active Idle	68.1	22.9

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	22.9	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
