SPECpower_ssj2008 JVM Instance 'WIN-NLANLN8CQ1G.007' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-NLANLN8CQ1G.007' Performance Report

Supermicro AS-1115SV-WTNRT			ssj_ops@100% = 290,717
Test Sponsor:	Supermicro	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro	Test Location:	San Jose, CA, USA	Test Date:	Aug 21, 2023
Hardware Availability:	Sep-2023	Software Availability:	Apr-2023	Publication:	Sep 19, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

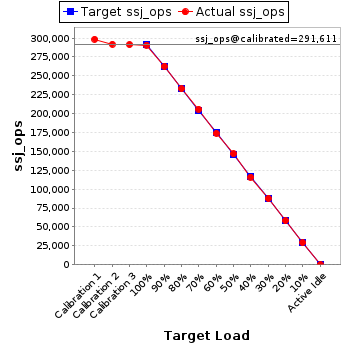

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			298,423
Calibration 2			291,891
Calibration 3			291,332
ssj_ops@calibrated=291,611
100%	99.7%	291,611	290,717
90%	90.1%	262,450	262,670
80%	79.8%	233,289	232,811
70%	70.6%	204,128	205,872
60%	59.6%	174,967	173,939
50%	50.3%	145,806	146,635
40%	39.8%	116,645	116,053
30%	30.1%	87,483	87,789
20%	20.0%	58,322	58,242
10%	10.0%	29,161	29,269
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Supermicro
Model:	AS-1115SV-WTNRT
Form Factor:	1U
CPU Name:	AMD EPYC 8124P
CPU Characteristics:	16-Core, 2.45 GHz, 64MB L3 Cache
CPU Frequency (MHz):	2450
CPU(s) Enabled:	16 cores, 1 chip, 16 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	512 KB I + 512 KB D on chip per core
Secondary Cache:	16 MB I+D on chip per core
Tertiary Cache:	64 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	96
# and size of DIMM:	6 x 16 GB
Memory Details:	6 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W):	1 x 860
Power Supply Details:	PWS-861A-1R
Disk Drive:	1 x 1TB Samsung SSD 980 PRO
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual LAN BCM 57416 10GbE BaseT Ethernet Controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2 (OS Build 20348.1668)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options:	-server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	start/NODE[0] /AFFINITY [ [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000 ]
JVM Instances:	8
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	1.0
Management Firmware Version:	01.01.01
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5025230

Boot Firmware Settings

L2 Stream HW Prefetcher: Disabled
Memory Target Speed: 3600
Power Profile: Efficiency Mode

Management Firmware Settings

Fan Mode: Standard Speed

System Under Test Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was affinitized to four threads.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Windows Balanced Power Plan Settings:
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor CPMINCORES 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 60
Powercfg /setacvalueindex scheme_current sub_processor PERFBOOSTMODE 2
powercfg /setactive scheme_current

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0F02A00A00000000 for the AMD EPYC 8124P processor

Notes

None

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	21,706,696	2,030
		Payment	21,706,694
		Order Status	2,170,668
		Delivery	2,170,671
		Stock Level	2,170,671
		Customer Report	21,706,686
Calibration 2		New Order	21,230,829	2,030
		Payment	21,230,837
		Order Status	2,123,083
		Delivery	2,123,083
		Stock Level	2,123,082
		Customer Report	21,230,830
Calibration 3		New Order	21,192,575	2,030
		Payment	21,192,582
		Order Status	2,119,257
		Delivery	2,119,257
		Stock Level	2,119,259
		Customer Report	21,192,570
100%	99.7%	New Order	21,146,391	2,030
		Payment	21,146,386
		Order Status	2,114,639
		Delivery	2,114,637
		Stock Level	2,114,637
		Customer Report	21,146,391
90%	90.1%	New Order	19,104,546	2,030
		Payment	19,104,553
		Order Status	1,910,457
		Delivery	1,910,456
		Stock Level	1,910,456
		Customer Report	19,104,553
80%	79.8%	New Order	16,934,551	2,030
		Payment	16,934,546
		Order Status	1,693,455
		Delivery	1,693,453
		Stock Level	1,693,454
		Customer Report	16,934,545
70%	70.6%	New Order	14,974,305	2,028
		Payment	14,974,305
		Order Status	1,497,429
		Delivery	1,497,431
		Stock Level	1,497,428
		Customer Report	14,974,296
60%	59.6%	New Order	12,650,162	2,030
		Payment	12,650,163
		Order Status	1,265,016
		Delivery	1,265,015
		Stock Level	1,265,015
		Customer Report	12,650,169
50%	50.3%	New Order	10,664,758	2,030
		Payment	10,664,752
		Order Status	1,066,474
		Delivery	1,066,478
		Stock Level	1,066,475
		Customer Report	10,664,763
40%	39.8%	New Order	8,440,310	2,030
		Payment	8,440,307
		Order Status	844,031
		Delivery	844,031
		Stock Level	844,029
		Customer Report	8,440,302
30%	30.1%	New Order	6,384,751	2,030
		Payment	6,384,747
		Order Status	638,476
		Delivery	638,476
		Stock Level	638,474
		Customer Report	6,384,751
20%	20.0%	New Order	4,236,055	2,030
		Payment	4,236,063
		Order Status	423,607
		Delivery	423,607
		Stock Level	423,608
		Customer Report	4,236,061
10%	10.0%	New Order	2,128,794	2,030
		Payment	2,128,783
		Order Status	212,879
		Delivery	212,879
		Stock Level	212,879
		Customer Report	2,128,787
Active Idle		New Order	0	2,030
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
