SPECpower_ssj2008 JVM Instance 'WIN-NLANLN8CQ1G.004' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-NLANLN8CQ1G.004' Performance Report

Supermicro AS-1115SV-WTNRT			ssj_ops@100% = 262,142
Test Sponsor:	Supermicro	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro	Test Location:	San Jose, CA, USA	Test Date:	Aug 21, 2023
Hardware Availability:	Sep-2023	Software Availability:	Apr-2023	Publication:	Sep 19, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

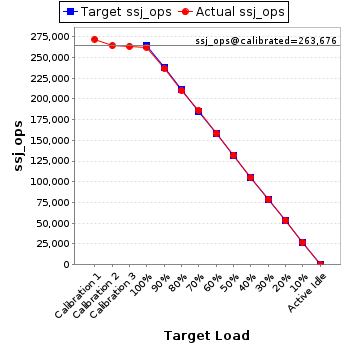

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			271,825
Calibration 2			264,107
Calibration 3			263,245
ssj_ops@calibrated=263,676
100%	99.4%	263,676	262,142
90%	89.8%	237,309	236,762
80%	79.6%	210,941	209,979
70%	70.5%	184,573	185,988
60%	60.1%	158,206	158,410
50%	50.1%	131,838	132,098
40%	39.8%	105,470	104,825
30%	29.9%	79,103	78,868
20%	20.1%	52,735	52,934
10%	10.1%	26,368	26,586
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Supermicro
Model:	AS-1115SV-WTNRT
Form Factor:	1U
CPU Name:	AMD EPYC 8124P
CPU Characteristics:	16-Core, 2.45 GHz, 64MB L3 Cache
CPU Frequency (MHz):	2450
CPU(s) Enabled:	16 cores, 1 chip, 16 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	512 KB I + 512 KB D on chip per core
Secondary Cache:	16 MB I+D on chip per core
Tertiary Cache:	64 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	96
# and size of DIMM:	6 x 16 GB
Memory Details:	6 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W):	1 x 860
Power Supply Details:	PWS-861A-1R
Disk Drive:	1 x 1TB Samsung SSD 980 PRO
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual LAN BCM 57416 10GbE BaseT Ethernet Controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2 (OS Build 20348.1668)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options:	-server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	start/NODE[0] /AFFINITY [ [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000 ]
JVM Instances:	8
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	1.0
Management Firmware Version:	01.01.01
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5025230

Boot Firmware Settings

L2 Stream HW Prefetcher: Disabled
Memory Target Speed: 3600
Power Profile: Efficiency Mode

Management Firmware Settings

Fan Mode: Standard Speed

System Under Test Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was affinitized to four threads.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Windows Balanced Power Plan Settings:
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor CPMINCORES 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 60
Powercfg /setacvalueindex scheme_current sub_processor PERFBOOSTMODE 2
powercfg /setactive scheme_current

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0F02A00A00000000 for the AMD EPYC 8124P processor

Notes

None

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	19,782,311	2,030
		Payment	19,782,309
		Order Status	1,978,232
		Delivery	1,978,231
		Stock Level	1,978,232
		Customer Report	19,782,306
Calibration 2		New Order	19,211,240	2,030
		Payment	19,211,237
		Order Status	1,921,123
		Delivery	1,921,124
		Stock Level	1,921,120
		Customer Report	19,211,241
Calibration 3		New Order	19,156,902	2,030
		Payment	19,156,901
		Order Status	1,915,687
		Delivery	1,915,690
		Stock Level	1,915,691
		Customer Report	19,156,889
100%	99.4%	New Order	19,066,745	2,030
		Payment	19,066,740
		Order Status	1,906,675
		Delivery	1,906,674
		Stock Level	1,906,675
		Customer Report	19,066,736
90%	89.8%	New Order	17,219,501	2,030
		Payment	17,219,503
		Order Status	1,721,949
		Delivery	1,721,949
		Stock Level	1,721,950
		Customer Report	17,219,502
80%	79.6%	New Order	15,272,007	2,028
		Payment	15,272,014
		Order Status	1,527,201
		Delivery	1,527,201
		Stock Level	1,527,201
		Customer Report	15,272,012
70%	70.5%	New Order	13,526,910	2,030
		Payment	13,526,912
		Order Status	1,352,691
		Delivery	1,352,691
		Stock Level	1,352,690
		Customer Report	13,526,906
60%	60.1%	New Order	11,521,244	2,028
		Payment	11,521,243
		Order Status	1,152,124
		Delivery	1,152,124
		Stock Level	1,152,123
		Customer Report	11,521,239
50%	50.1%	New Order	9,607,594	2,030
		Payment	9,607,594
		Order Status	960,759
		Delivery	960,758
		Stock Level	960,759
		Customer Report	9,607,591
40%	39.8%	New Order	7,624,098	2,030
		Payment	7,624,089
		Order Status	762,410
		Delivery	762,408
		Stock Level	762,412
		Customer Report	7,624,086
30%	29.9%	New Order	5,735,840	2,030
		Payment	5,735,840
		Order Status	573,583
		Delivery	573,583
		Stock Level	573,586
		Customer Report	5,735,830
20%	20.1%	New Order	3,849,975	2,030
		Payment	3,849,967
		Order Status	384,998
		Delivery	384,997
		Stock Level	384,996
		Customer Report	3,849,960
10%	10.1%	New Order	1,933,641	2,030
		Payment	1,933,636
		Order Status	193,362
		Delivery	193,363
		Stock Level	193,364
		Customer Report	1,933,634
Active Idle		New Order	0	2,030
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
