SPECpower_ssj2008 JVM Instance 'WIN-NLANLN8CQ1G.003' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-NLANLN8CQ1G.003' Performance Report

Supermicro AS-1115SV-WTNRT			ssj_ops@100% = 288,188
Test Sponsor:	Supermicro	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro	Test Location:	San Jose, CA, USA	Test Date:	Aug 21, 2023
Hardware Availability:	Sep-2023	Software Availability:	Apr-2023	Publication:	Sep 19, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

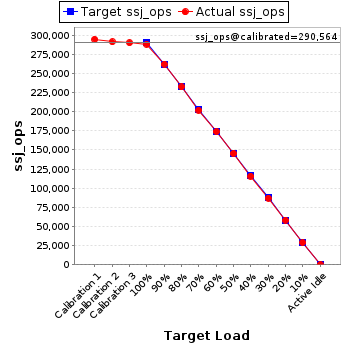

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			294,731
Calibration 2			291,144
Calibration 3			289,985
ssj_ops@calibrated=290,564
100%	99.2%	290,564	288,188
90%	90.3%	261,508	262,249
80%	80.0%	232,451	232,314
70%	69.5%	203,395	201,892
60%	59.9%	174,338	173,932
50%	50.0%	145,282	145,203
40%	39.8%	116,226	115,677
30%	30.0%	87,169	87,079
20%	20.1%	58,113	58,375
10%	10.0%	29,056	28,957
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Supermicro
Model:	AS-1115SV-WTNRT
Form Factor:	1U
CPU Name:	AMD EPYC 8124P
CPU Characteristics:	16-Core, 2.45 GHz, 64MB L3 Cache
CPU Frequency (MHz):	2450
CPU(s) Enabled:	16 cores, 1 chip, 16 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	512 KB I + 512 KB D on chip per core
Secondary Cache:	16 MB I+D on chip per core
Tertiary Cache:	64 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	96
# and size of DIMM:	6 x 16 GB
Memory Details:	6 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W):	1 x 860
Power Supply Details:	PWS-861A-1R
Disk Drive:	1 x 1TB Samsung SSD 980 PRO
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual LAN BCM 57416 10GbE BaseT Ethernet Controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2 (OS Build 20348.1668)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options:	-server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	start/NODE[0] /AFFINITY [ [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000 ]
JVM Instances:	8
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	1.0
Management Firmware Version:	01.01.01
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5025230

Boot Firmware Settings

L2 Stream HW Prefetcher: Disabled
Memory Target Speed: 3600
Power Profile: Efficiency Mode

Management Firmware Settings

Fan Mode: Standard Speed

System Under Test Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was affinitized to four threads.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Windows Balanced Power Plan Settings:
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor CPMINCORES 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 60
Powercfg /setacvalueindex scheme_current sub_processor PERFBOOSTMODE 2
powercfg /setactive scheme_current

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0F02A00A00000000 for the AMD EPYC 8124P processor

Notes

None

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	21,439,584	2,030
		Payment	21,439,573
		Order Status	2,143,957
		Delivery	2,143,957
		Stock Level	2,143,956
		Customer Report	21,439,573
Calibration 2		New Order	21,183,382	2,030
		Payment	21,183,394
		Order Status	2,118,339
		Delivery	2,118,338
		Stock Level	2,118,337
		Customer Report	21,183,389
Calibration 3		New Order	21,092,512	2,030
		Payment	21,092,514
		Order Status	2,109,249
		Delivery	2,109,252
		Stock Level	2,109,250
		Customer Report	21,092,510
100%	99.2%	New Order	20,966,079	2,030
		Payment	20,966,074
		Order Status	2,096,608
		Delivery	2,096,610
		Stock Level	2,096,607
		Customer Report	20,966,084
90%	90.3%	New Order	19,073,522	2,030
		Payment	19,073,515
		Order Status	1,907,350
		Delivery	1,907,352
		Stock Level	1,907,353
		Customer Report	19,073,513
80%	80.0%	New Order	16,897,686	2,030
		Payment	16,897,688
		Order Status	1,689,768
		Delivery	1,689,769
		Stock Level	1,689,769
		Customer Report	16,897,687
70%	69.5%	New Order	14,683,089	2,028
		Payment	14,683,099
		Order Status	1,468,309
		Delivery	1,468,311
		Stock Level	1,468,310
		Customer Report	14,683,089
60%	59.9%	New Order	12,650,529	2,030
		Payment	12,650,533
		Order Status	1,265,054
		Delivery	1,265,054
		Stock Level	1,265,052
		Customer Report	12,650,528
50%	50.0%	New Order	10,560,614	2,030
		Payment	10,560,613
		Order Status	1,056,062
		Delivery	1,056,063
		Stock Level	1,056,062
		Customer Report	10,560,614
40%	39.8%	New Order	8,412,928	2,030
		Payment	8,412,927
		Order Status	841,294
		Delivery	841,291
		Stock Level	841,294
		Customer Report	8,412,926
30%	30.0%	New Order	6,333,077	2,030
		Payment	6,333,082
		Order Status	633,308
		Delivery	633,308
		Stock Level	633,308
		Customer Report	6,333,074
20%	20.1%	New Order	4,245,759	2,030
		Payment	4,245,756
		Order Status	424,575
		Delivery	424,576
		Stock Level	424,575
		Customer Report	4,245,759
10%	10.0%	New Order	2,106,113	2,030
		Payment	2,106,118
		Order Status	210,612
		Delivery	210,611
		Stock Level	210,609
		Customer Report	2,106,114
Active Idle		New Order	0	2,030
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
