Supermicro AS-1015SV-WTNRT SPECpower_ssj2008 = 24,434 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Aug 26, 2023
Hardware Availability: Sep-2023 Software Availability: Aug-2023 Publication: Sep 20, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 6,305,316 202 31,164
90% 89.9% 5,693,687 181 31,440
80% 79.9% 5,058,915 162 31,319
70% 70.0% 4,431,055 150 29,592
60% 60.0% 3,802,100 136 27,962
50% 50.1% 3,172,025 127 24,943
40% 40.0% 2,533,087 118 21,490
30% 30.0% 1,898,525 108 17,568
20% 20.0% 1,269,887 97.8 12,985
10% 9.9% 630,182 86.6 7,273
Active Idle 0 55.8 0
∑ssj_ops / ∑power = 24,434

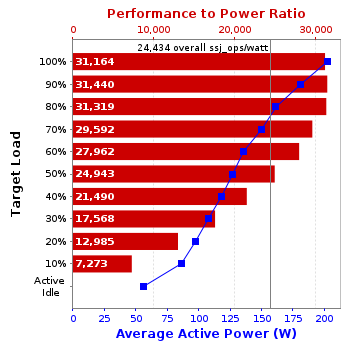

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: AS-1015SV-WTNRT
Form Factor: 1U
CPU Name: AMD EPYC 8534PN
CPU Characteristics: 64 Core, 2.30GHz, 128MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 2 MB I + 2 MB D on chip per core
Secondary Cache: 64 MB I+D on chip per core
Tertiary Cache: 128 MB I+D on chip per chip, 32 MB shared
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 6 x 32 GB
Memory Details: 32GB 2Rx8 PC5-4800B-R; slots A1, B1, C1, D1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 860
Power Supply Details: PWS-861A-1R
Disk Drive: 1x480GB M.2 NVMe GEN4 Micron,HDS-MMN-MTFDKBA480TFR1BC
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual Broadcom 57416 10Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 10.0.20348 Build 20348
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
JVM Command-line Options: -server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0,0x300, 0xC00, 0x3000, 0xC000]
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 1.0
Management Firmware Version: 01.01.01
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5029250
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Supermicro
Model: X11DPG
CPU Description: Intel(R) Xeon(R) Gold 6142 2.60G
Memory amount (GB): 96
Software
Operating System (OS): Microsoft Windows Server 2019 Datacenter
JVM Vendor: Oracle Corporation
JVM Version: Jave(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3RF27027E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-230203F01008
Date of Calibration: 03-Feb-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 202 27.1
90% 181 26.8
80% 162 26.3
70% 150 26.1
60% 136 25.8
50% 127 25.6
40% 118 25.4
30% 108 25.2
20% 97.8 25.1
10% 86.6 24.8
Active Idle 55.8 24.4
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 24.4 10
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,421,818
Calibration 2     6,336,412
Calibration 3     6,330,972
ssj_ops@calibrated=6,333,692
100% 99.6% 6,333,692 6,305,316
90% 89.9% 5,700,323 5,693,687
80% 79.9% 5,066,954 5,058,915
70% 70.0% 4,433,584 4,431,055
60% 60.0% 3,800,215 3,802,100
50% 50.1% 3,166,846 3,172,025
40% 40.0% 2,533,477 2,533,087
30% 30.0% 1,900,108 1,898,525
20% 20.0% 1,266,738 1,269,887
10% 9.9% 633,369 630,182
Active Idle   0 0

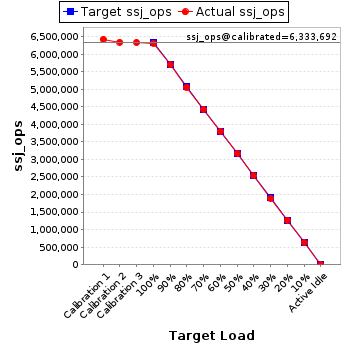

Graph of results
See the Host Performance Report for additional details.
