Supermicro AS-1115SV-WTNRT SPECpower_ssj2008 = 20,100 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Aug 23, 2023
Hardware Availability: Sep-2023 Software Availability: Apr-2023 Publication: Sep 19, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 5,976,612 211 28,310
90% 89.9% 5,400,141 201 26,854
80% 80.0% 4,807,870 191 25,137
70% 70.0% 4,203,741 180 23,395
60% 60.1% 3,610,495 158 22,896
50% 50.0% 3,002,667 147 20,475
40% 40.1% 2,407,558 137 17,579
30% 30.0% 1,805,531 127 14,220
20% 20.0% 1,202,247 115 10,410
10% 10.0% 602,978 104 5,814
Active Idle 0 72.2 0
∑ssj_ops / ∑power = 20,100

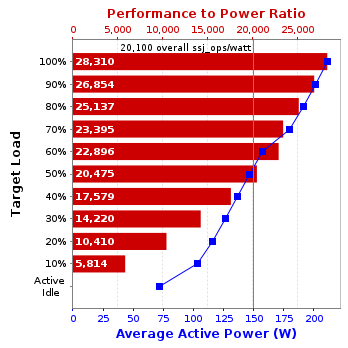

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: AS-1115SV-WTNRT
Form Factor: 1U
CPU Name: AMD EPYC 8434P
CPU Characteristics: 48-Core, 2.5 GHz, 128MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 48 cores, 1 chip, 48 cores/chip
Hardware Threads: 96 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 1536 KB I + 1536 KB D on chip per core
Secondary Cache: 48 MB I+D on chip per core
Tertiary Cache: 128 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 6 x 16 GB
Memory Details: 6 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W): 1 x 860
Power Supply Details: PWS-861A-1R
Disk Drive: 1 x 1TB Samsung SSD 980 PRO
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual LAN BCM 57416 10GbE BaseT Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1668)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options: -server -Xms1625m -Xmx1625m -Xmn1500m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start/NODE[0, 1] /AFFINITY [ [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000, 0xC0000000, 0x300000000, 0xC00000000, 0x3000000000, 0xC000000000, 0x30000000000, 0xC0000000000, 0x300000000000, 0xC00000000000 ]
JVM Instances: 48
JVM Initial Heap (MB): 1625
JVM Maximum Heap (MB): 1625
JVM Address Bits: 64
Boot Firmware Version: 1.0
Management Firmware Version: 01.01.01
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5025230
Boot Firmware Settings
Management Firmware Settings
Fan Mode: Standard Speed
System Under Test Notes
Controller System
Hardware
Hardware Vendor: HP
Model: HP EliteBook 745 G6
CPU Description: AMD Ryzen 7 PRO 3700U
Memory amount (GB): 32
Software
Operating System (OS): Microsoft Windows Server 2019 Standard
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM 18.9 (build 11.0.2+9, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: TESCOM
Accredited by: 12-May-2023
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 211 27.9
90% 201 27.8
80% 191 27.8
70% 180 27.8
60% 158 27.8
50% 147 27.7
40% 137 27.7
30% 127 27.7
20% 115 27.7
10% 104 27.7
Active Idle 72.2 27.8
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 27.7 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,120,313
Calibration 2     6,024,942
Calibration 3     5,992,980
ssj_ops@calibrated=6,008,961
100% 99.5% 6,008,961 5,976,612
90% 89.9% 5,408,065 5,400,141
80% 80.0% 4,807,169 4,807,870
70% 70.0% 4,206,272 4,203,741
60% 60.1% 3,605,376 3,610,495
50% 50.0% 3,004,480 3,002,667
40% 40.1% 2,403,584 2,407,558
30% 30.0% 1,802,688 1,805,531
20% 20.0% 1,201,792 1,202,247
10% 10.0% 600,896 602,978
Active Idle   0 0

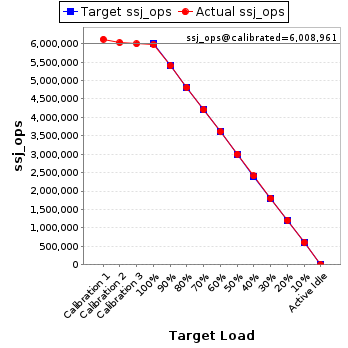

Graph of results
See the Host Performance Report for additional details.
