Supermicro AS-1015SV-WTNRT SPECpower_ssj2008 = 17,246 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Aug 28, 2023
Hardware Availability: Sep-2023 Software Availability: Apr-2023 Publication: Sep 19, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 171 22.9
Calibration 2 172 23.0
Calibration 3 172 23.1
100% 172 23.1
90% 166 23.1
80% 159 23.2
70% 152 23.2
60% 142 23.2
50% 124 23.2
40% 118 23.2
30% 112 23.3
20% 106 23.4
10% 97.4 23.6
Active Idle 71.2 23.7

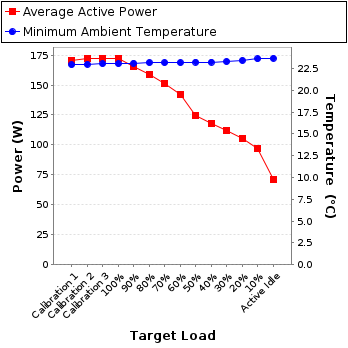

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: TESCOM
Accredited by: 12-May-2023
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 0.914 1.0 0.883 171 0.3%
Calibration 2 211 300.0 0.923 1.0 0.884 172 0.3%
Calibration 3 211 300.0 0.924 1.0 0.884 172 0.3%
100% 211 300.0 0.924 1.0 0.884 172 0.3%
90% 211 300.0 0.893 1.0 0.880 166 0.3%
80% 211 300.0 0.864 1.0 0.874 159 0.3%
70% 210 300.0 0.832 1.0 0.866 152 0.3%
60% 211 300.0 0.792 1.0 0.854 142 0.3%
50% 211 300.0 0.718 1.0 0.823 124 0.3%
40% 210 300.0 0.689 1.0 0.812 118 0.4%
30% 211 300.0 0.662 1.0 0.801 112 0.4%
20% 212 300.0 0.632 0.5 0.789 106 0.3%
10% 212 300.0 0.596 0.5 0.771 97.4 0.3%
Active Idle 212 300.0 0.493 0.5 0.681 71.2 0.4%

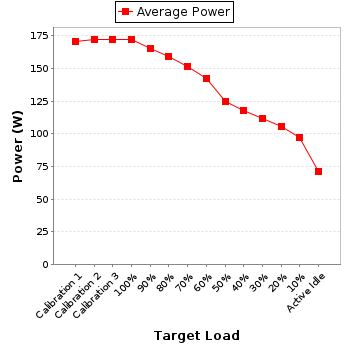

Power details for pwr1
