SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Supermicro AS-1015SV-WTNRT | SPECpower_ssj2008 = 14,128 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | San Jose, CA, USA | Test Date: | Aug 24, 2023 |
| Hardware Availability: | Sep-2023 | Software Availability: | Apr-2023 | Publication: | Sep 19, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

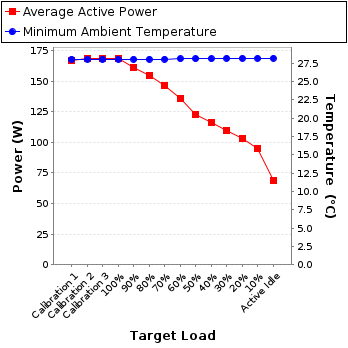

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 167 | 28.1 |
| Calibration 2 | 169 | 28.1 |
| Calibration 3 | 169 | 28.1 |
| 100% | 169 | 28.1 |
| 90% | 161 | 28.1 |
| 80% | 155 | 28.1 |
| 70% | 147 | 28.1 |
| 60% | 136 | 28.1 |
| 50% | 122 | 28.1 |
| 40% | 116 | 28.1 |
| 30% | 110 | 28.2 |
| 20% | 103 | 28.2 |
| 10% | 94.9 | 28.2 |
| Active Idle | 68.8 | 28.2 |

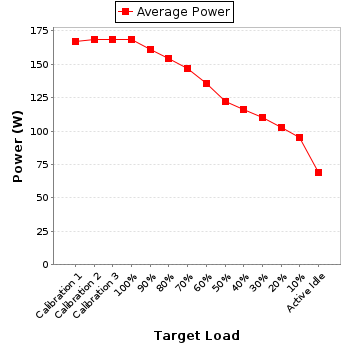

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C2XM03068V |
| Connectivity: | USB2 |
| Input Connection: | Default |
| Metrology Institute: | TESCOM |
| Accredited by: | 12-May-2023 |
| Calibration Label: | T114528 |
| Date of Calibration: | 12-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButtonLink, Inc. |
| Model: | LinkUSBi + T-Probe |
| Driver Version: | FTDI USB Serial Device 1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 212 | 300.0 | 0.892 | 1.0 | 0.880 | 167 | 0.3% |
| Calibration 2 | 212 | 300.0 | 0.900 | 1.0 | 0.883 | 169 | 0.3% |
| Calibration 3 | 213 | 300.0 | 0.900 | 1.0 | 0.882 | 169 | 0.3% |
| 100% | 213 | 300.0 | 0.899 | 1.0 | 0.882 | 169 | 0.3% |
| 90% | 213 | 300.0 | 0.867 | 1.0 | 0.876 | 161 | 0.3% |
| 80% | 213 | 300.0 | 0.837 | 1.0 | 0.870 | 155 | 0.3% |
| 70% | 213 | 300.0 | 0.803 | 1.0 | 0.860 | 147 | 0.3% |
| 60% | 213 | 300.0 | 0.757 | 1.0 | 0.843 | 136 | 0.3% |
| 50% | 213 | 300.0 | 0.702 | 1.0 | 0.819 | 122 | 0.3% |
| 40% | 213 | 300.0 | 0.675 | 1.0 | 0.808 | 116 | 0.4% |
| 30% | 213 | 300.0 | 0.649 | 1.0 | 0.797 | 110 | 0.4% |
| 20% | 213 | 300.0 | 0.618 | 1.0 | 0.783 | 103 | 0.4% |
| 10% | 213 | 300.0 | 0.583 | 0.5 | 0.765 | 94.9 | 0.3% |
| Active Idle | 213 | 300.0 | 0.482 | 0.5 | 0.670 | 68.8 | 0.4% |
