SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL110 Gen11 | SPECpower_ssj2008 = 10,182 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 25, 2023 |
| Hardware Availability: | Oct-2023 | Software Availability: | Aug-2023 | Publication: | Sep 13, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

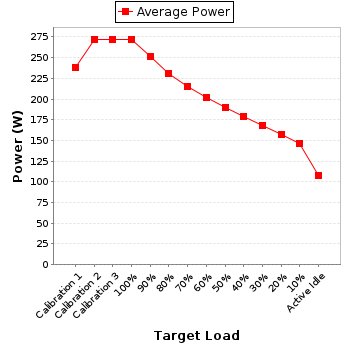

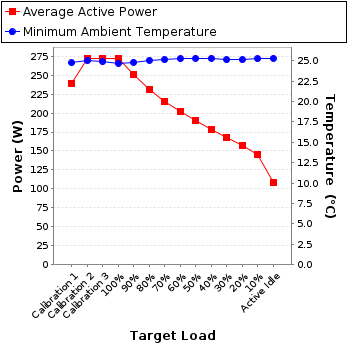

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 238 | 24.8 |
| Calibration 2 | 272 | 25.0 |
| Calibration 3 | 272 | 24.9 |
| 100% | 272 | 24.7 |
| 90% | 251 | 24.8 |
| 80% | 231 | 25.1 |
| 70% | 216 | 25.1 |
| 60% | 202 | 25.2 |
| 50% | 190 | 25.3 |
| 40% | 179 | 25.3 |
| 30% | 168 | 25.1 |
| 20% | 157 | 25.1 |
| 10% | 146 | 25.2 |
| Active Idle | 108 | 25.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-HC75N-60-1 |
| Date of Calibration: | 16-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.36 | 2.0 | 0.836 | 238 | 0.5% |
| Calibration 2 | 209 | 300.0 | 1.51 | 2.0 | 0.863 | 272 | 0.5% |
| Calibration 3 | 209 | 300.0 | 1.51 | 2.0 | 0.864 | 272 | 0.5% |
| 100% | 209 | 300.0 | 1.51 | 2.0 | 0.863 | 272 | 0.5% |
| 90% | 209 | 300.0 | 1.42 | 2.0 | 0.849 | 251 | 0.5% |
| 80% | 209 | 300.0 | 1.33 | 2.0 | 0.832 | 231 | 0.5% |
| 70% | 209 | 300.0 | 1.26 | 2.0 | 0.820 | 216 | 0.6% |
| 60% | 209 | 300.0 | 1.19 | 2.0 | 0.805 | 202 | 0.6% |
| 50% | 210 | 300.0 | 1.14 | 2.0 | 0.792 | 190 | 0.6% |
| 40% | 209 | 300.0 | 1.09 | 2.0 | 0.779 | 179 | 0.6% |
| 30% | 209 | 300.0 | 1.05 | 2.0 | 0.765 | 168 | 0.7% |
| 20% | 209 | 300.0 | 1.00 | 1.0 | 0.751 | 157 | 0.5% |
| 10% | 209 | 300.0 | 0.950 | 1.0 | 0.735 | 146 | 0.5% |
| Active Idle | 209 | 300.0 | 0.758 | 1.0 | 0.682 | 108 | 0.6% |
