Supermicro Inc SuperServer SYS-521E-WR ssj_ops@100% = 4,511,740
ssj_ops@100% per JVM = 140,992
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: Aug 10, 2023
Hardware Availability: Jan-2023 Software Availability: Apr-2023 Publication: Sep 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,567,762
Calibration 2     4,529,960
Calibration 3     4,520,341
ssj_ops@calibrated=4,525,151
100% 99.7% 4,525,151 4,511,740
90% 90.2% 4,072,636 4,080,106
80% 80.0% 3,620,120 3,618,935
70% 70.1% 3,167,605 3,170,510
60% 60.0% 2,715,090 2,715,263
50% 50.0% 2,262,575 2,263,077
40% 39.9% 1,810,060 1,807,665
30% 30.0% 1,357,545 1,358,450
20% 20.0% 905,030 904,504
10% 10.0% 452,515 454,093
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: sut
Hardware
Hardware Vendor: Supermicro Inc
Model: SuperServer SYS-521E-WR
Form Factor: 2U
CPU Name: Intel Xeon Gold 6414U 2.0 GHz (Intel Turbo Boost Technology up to 3.40 GHz)
CPU Characteristics: 32-Core, 2.0 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 32 cores, 1 chip, 32 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 8 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1,G1,H1 populated.
Power Supply Quantity and Rating (W): 1 x 920
Power Supply Details: P/N: PWS-920P-1R2
Disk Drive: 1 x 960GB Micron M500 2.5" SATA SSD, P/N: MTFDDAK960MAV
Disk Controller: onboard SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual LAN Intel I210 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1668)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=3900 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:BiasedLockingStartupDelay=30000 -XX:+UseNUMA -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start/NODE[0-3] /AFFINITY [ [0x3, 0xC, 0x30, 0xC0, 0x300, 0xc00, 0x3000, 0xc000]
JVM Instances: 32
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.3a
Management Firmware Version: 1.00.52
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5025230
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SM9CBV5QG8T.001 141,221
WIN-SM9CBV5QG8T.002 140,198
WIN-SM9CBV5QG8T.003 141,475
WIN-SM9CBV5QG8T.004 140,581
WIN-SM9CBV5QG8T.005 140,790
WIN-SM9CBV5QG8T.006 142,570
WIN-SM9CBV5QG8T.007 142,146
WIN-SM9CBV5QG8T.008 140,922
WIN-SM9CBV5QG8T.009 140,525
WIN-SM9CBV5QG8T.010 140,975
WIN-SM9CBV5QG8T.011 142,623
WIN-SM9CBV5QG8T.012 140,852
WIN-SM9CBV5QG8T.013 140,697
WIN-SM9CBV5QG8T.014 141,118
WIN-SM9CBV5QG8T.015 139,232
WIN-SM9CBV5QG8T.016 141,297
WIN-SM9CBV5QG8T.017 139,598
WIN-SM9CBV5QG8T.018 139,720
WIN-SM9CBV5QG8T.019 141,021
WIN-SM9CBV5QG8T.020 139,705
WIN-SM9CBV5QG8T.021 143,025
WIN-SM9CBV5QG8T.022 141,927
WIN-SM9CBV5QG8T.023 140,204
WIN-SM9CBV5QG8T.024 140,931
WIN-SM9CBV5QG8T.025 140,766
WIN-SM9CBV5QG8T.026 142,050
WIN-SM9CBV5QG8T.027 141,610
WIN-SM9CBV5QG8T.028 141,546
WIN-SM9CBV5QG8T.029 142,941
WIN-SM9CBV5QG8T.030 138,736
WIN-SM9CBV5QG8T.031 140,348
WIN-SM9CBV5QG8T.032 140,392
ssj_ops@100% 4,511,740
ssj_ops@100% per JVM 140,992
Graph of per-instance results

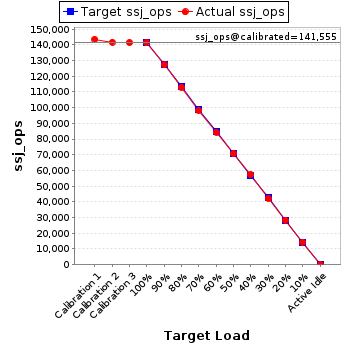

JVM 'WIN-SM9CBV5QG8T.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,538
Calibration 2     141,672
Calibration 3     141,439
ssj_ops@calibrated=141,555
100% 99.8% 141,555 141,221
90% 89.8% 127,400 127,170
80% 79.8% 113,244 113,031
70% 69.4% 99,089 98,205
60% 59.6% 84,933 84,415
50% 49.9% 70,778 70,613
40% 40.6% 56,622 57,448
30% 29.8% 42,467 42,156
20% 20.1% 28,311 28,411
10% 10.2% 14,156 14,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,470
Calibration 2     141,056
Calibration 3     140,595
ssj_ops@calibrated=140,825
100% 99.6% 140,825 140,198
90% 89.9% 126,743 126,649
80% 79.8% 112,660 112,409
70% 69.6% 98,578 97,981
60% 61.1% 84,495 86,100
50% 49.9% 70,413 70,216
40% 39.8% 56,330 56,077
30% 30.2% 42,248 42,590
20% 19.6% 28,165 27,548
10% 10.1% 14,083 14,170
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,320
Calibration 2     142,456
Calibration 3     141,696
ssj_ops@calibrated=142,076
100% 99.6% 142,076 141,475
90% 90.0% 127,869 127,858
80% 79.7% 113,661 113,262
70% 69.8% 99,453 99,108
60% 59.6% 85,246 84,609
50% 49.4% 71,038 70,171
40% 40.0% 56,830 56,767
30% 30.2% 42,623 42,846
20% 20.1% 28,415 28,522
10% 9.9% 14,208 14,099
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,911
Calibration 2     141,259
Calibration 3     141,202
ssj_ops@calibrated=141,230
100% 99.5% 141,230 140,581
90% 89.8% 127,107 126,793
80% 80.2% 112,984 113,238
70% 69.5% 98,861 98,134
60% 59.7% 84,738 84,324
50% 49.8% 70,615 70,328
40% 40.1% 56,492 56,680
30% 30.0% 42,369 42,397
20% 19.5% 28,246 27,550
10% 10.0% 14,123 14,072
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,953
Calibration 2     141,393
Calibration 3     140,872
ssj_ops@calibrated=141,133
100% 99.8% 141,133 140,790
90% 90.2% 127,019 127,332
80% 80.1% 112,906 113,043
70% 70.2% 98,793 99,048
60% 59.8% 84,680 84,350
50% 49.3% 70,566 69,597
40% 39.6% 56,453 55,956
30% 30.1% 42,340 42,471
20% 19.9% 28,227 28,097
10% 10.2% 14,113 14,357
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,803
Calibration 2     143,222
Calibration 3     142,745
ssj_ops@calibrated=142,984
100% 99.7% 142,984 142,570
90% 91.1% 128,685 130,281
80% 80.4% 114,387 114,930
70% 70.1% 100,089 100,167
60% 59.6% 85,790 85,171
50% 50.4% 71,492 72,045
40% 39.7% 57,193 56,833
30% 30.0% 42,895 42,949
20% 20.1% 28,597 28,724
10% 9.7% 14,298 13,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

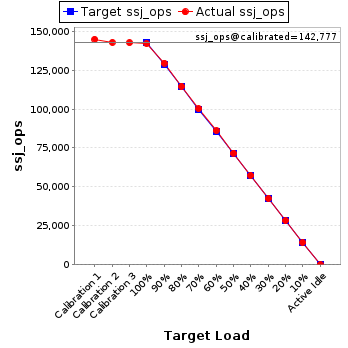

JVM 'WIN-SM9CBV5QG8T.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,912
Calibration 2     142,869
Calibration 3     142,685
ssj_ops@calibrated=142,777
100% 99.6% 142,777 142,146
90% 90.8% 128,499 129,619
80% 80.3% 114,222 114,651
70% 70.2% 99,944 100,300
60% 60.4% 85,666 86,174
50% 50.2% 71,388 71,721
40% 40.1% 57,111 57,319
30% 29.8% 42,833 42,615
20% 19.8% 28,555 28,330
10% 10.1% 14,278 14,356
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,524
Calibration 2     141,343
Calibration 3     141,538
ssj_ops@calibrated=141,440
100% 99.6% 141,440 140,922
90% 91.1% 127,296 128,806
80% 79.9% 113,152 113,046
70% 70.3% 99,008 99,397
60% 59.8% 84,864 84,572
50% 50.3% 70,720 71,164
40% 40.1% 56,576 56,650
30% 29.7% 42,432 41,970
20% 20.1% 28,288 28,407
10% 10.2% 14,144 14,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,473
Calibration 2     141,089
Calibration 3     141,096
ssj_ops@calibrated=141,093
100% 99.6% 141,093 140,525
90% 89.0% 126,983 125,616
80% 79.5% 112,874 112,103
70% 70.0% 98,765 98,746
60% 60.0% 84,656 84,664
50% 50.2% 70,546 70,828
40% 40.2% 56,437 56,705
30% 30.2% 42,328 42,544
20% 19.7% 28,219 27,782
10% 9.9% 14,109 13,974
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,756
Calibration 2     141,003
Calibration 3     140,956
ssj_ops@calibrated=140,980
100% 100.0% 140,980 140,975
90% 89.9% 126,882 126,797
80% 80.3% 112,784 113,171
70% 70.0% 98,686 98,743
60% 60.3% 84,588 84,942
50% 50.0% 70,490 70,494
40% 39.4% 56,392 55,571
30% 30.1% 42,294 42,497
20% 20.4% 28,196 28,802
10% 10.2% 14,098 14,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

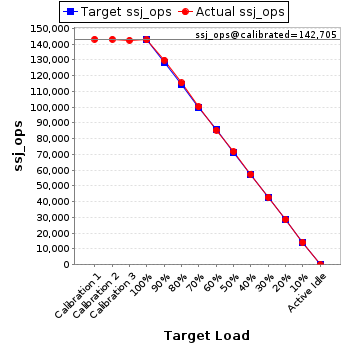

JVM 'WIN-SM9CBV5QG8T.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,049
Calibration 2     142,995
Calibration 3     142,416
ssj_ops@calibrated=142,705
100% 99.9% 142,705 142,623
90% 91.0% 128,435 129,825
80% 80.8% 114,164 115,326
70% 70.2% 99,894 100,221
60% 59.9% 85,623 85,413
50% 50.2% 71,353 71,683
40% 40.2% 57,082 57,419
30% 30.0% 42,812 42,774
20% 20.1% 28,541 28,660
10% 10.0% 14,271 14,261
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

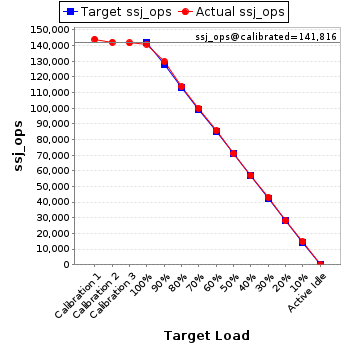

JVM 'WIN-SM9CBV5QG8T.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,952
Calibration 2     142,075
Calibration 3     141,557
ssj_ops@calibrated=141,816
100% 99.3% 141,816 140,852
90% 91.4% 127,634 129,674
80% 80.3% 113,453 113,837
70% 70.3% 99,271 99,764
60% 60.3% 85,090 85,504
50% 50.0% 70,908 70,959
40% 40.2% 56,726 57,046
30% 30.2% 42,545 42,855
20% 19.8% 28,363 28,080
10% 10.3% 14,182 14,626
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,831
Calibration 2     141,495
Calibration 3     140,488
ssj_ops@calibrated=140,992
100% 99.8% 140,992 140,697
90% 89.6% 126,892 126,389
80% 79.9% 112,793 112,692
70% 69.3% 98,694 97,775
60% 60.7% 84,595 85,512
50% 49.7% 70,496 70,089
40% 40.3% 56,397 56,786
30% 29.9% 42,297 42,174
20% 19.9% 28,198 28,121
10% 10.2% 14,099 14,343
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,145
Calibration 2     141,510
Calibration 3     141,182
ssj_ops@calibrated=141,346
100% 99.8% 141,346 141,118
90% 90.2% 127,211 127,515
80% 78.8% 113,077 111,354
70% 69.9% 98,942 98,822
60% 59.2% 84,808 83,693
50% 49.7% 70,673 70,291
40% 39.6% 56,538 55,986
30% 30.2% 42,404 42,691
20% 20.2% 28,269 28,611
10% 9.8% 14,135 13,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,152
Calibration 2     139,529
Calibration 3     139,295
ssj_ops@calibrated=139,412
100% 99.9% 139,412 139,232
90% 90.7% 125,471 126,461
80% 80.6% 111,530 112,396
70% 70.2% 97,588 97,844
60% 60.0% 83,647 83,656
50% 50.5% 69,706 70,420
40% 40.3% 55,765 56,128
30% 30.1% 41,824 41,923
20% 20.5% 27,882 28,572
10% 9.9% 13,941 13,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,243
Calibration 2     141,073
Calibration 3     140,951
ssj_ops@calibrated=141,012
100% 100.2% 141,012 141,297
90% 89.6% 126,911 126,295
80% 80.2% 112,810 113,123
70% 69.9% 98,709 98,499
60% 58.9% 84,607 83,123
50% 50.3% 70,506 70,983
40% 40.3% 56,405 56,865
30% 29.7% 42,304 41,896
20% 19.9% 28,202 28,078
10% 10.1% 14,101 14,184
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,392
Calibration 2     140,165
Calibration 3     139,381
ssj_ops@calibrated=139,773
100% 99.9% 139,773 139,598
90% 89.9% 125,796 125,712
80% 79.8% 111,818 111,494
70% 70.1% 97,841 97,977
60% 60.6% 83,864 84,666
50% 49.5% 69,886 69,151
40% 40.1% 55,909 56,036
30% 30.2% 41,932 42,243
20% 20.2% 27,955 28,247
10% 9.8% 13,977 13,742
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,970
Calibration 2     139,741
Calibration 3     139,526
ssj_ops@calibrated=139,634
100% 100.1% 139,634 139,720
90% 91.2% 125,670 127,370
80% 79.2% 111,707 110,534
70% 69.9% 97,743 97,601
60% 60.9% 83,780 84,979
50% 49.4% 69,817 68,917
40% 39.5% 55,853 55,190
30% 29.9% 41,890 41,686
20% 20.0% 27,927 27,892
10% 9.9% 13,963 13,768
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,939
Calibration 2     141,512
Calibration 3     141,317
ssj_ops@calibrated=141,415
100% 99.7% 141,415 141,021
90% 89.9% 127,273 127,113
80% 79.9% 113,132 113,029
70% 70.4% 98,990 99,485
60% 59.8% 84,849 84,609
50% 50.8% 70,707 71,828
40% 40.3% 56,566 56,995
30% 29.9% 42,424 42,215
20% 20.1% 28,283 28,467
10% 9.9% 14,141 14,007
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,473
Calibration 2     140,876
Calibration 3     140,810
ssj_ops@calibrated=140,843
100% 99.2% 140,843 139,705
90% 90.4% 126,758 127,390
80% 80.0% 112,674 112,732
70% 69.6% 98,590 98,001
60% 59.4% 84,506 83,708
50% 49.8% 70,421 70,124
40% 39.6% 56,337 55,822
30% 30.3% 42,253 42,669
20% 20.0% 28,169 28,211
10% 10.2% 14,084 14,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,941
Calibration 2     143,319
Calibration 3     143,746
ssj_ops@calibrated=143,533
100% 99.6% 143,533 143,025
90% 90.2% 129,179 129,454
80% 80.5% 114,826 115,598
70% 69.8% 100,473 100,173
60% 60.3% 86,120 86,493
50% 50.5% 71,766 72,454
40% 40.1% 57,413 57,590
30% 30.0% 43,060 43,000
20% 19.9% 28,707 28,600
10% 10.0% 14,353 14,378
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

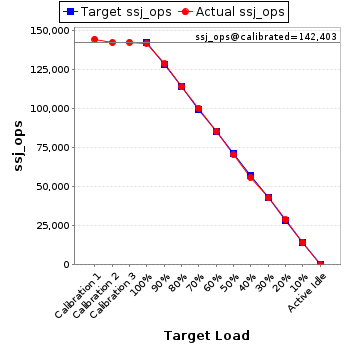

JVM 'WIN-SM9CBV5QG8T.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,402
Calibration 2     142,287
Calibration 3     142,518
ssj_ops@calibrated=142,403
100% 99.7% 142,403 141,927
90% 90.3% 128,162 128,618
80% 80.0% 113,922 113,862
70% 70.3% 99,682 100,166
60% 60.1% 85,442 85,548
50% 49.4% 71,201 70,334
40% 39.3% 56,961 55,929
30% 30.1% 42,721 42,805
20% 20.1% 28,481 28,664
10% 10.0% 14,240 14,245
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,408
Calibration 2     140,801
Calibration 3     140,573
ssj_ops@calibrated=140,687
100% 99.7% 140,687 140,204
90% 89.9% 126,618 126,438
80% 80.9% 112,550 113,827
70% 70.3% 98,481 98,852
60% 60.4% 84,412 84,973
50% 49.8% 70,343 70,110
40% 39.6% 56,275 55,659
30% 30.3% 42,206 42,641
20% 19.7% 28,137 27,766
10% 10.3% 14,069 14,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,127
Calibration 2     142,243
Calibration 3     141,825
ssj_ops@calibrated=142,034
100% 99.2% 142,034 140,931
90% 91.0% 127,831 129,251
80% 80.0% 113,627 113,603
70% 70.1% 99,424 99,532
60% 60.2% 85,220 85,467
50% 50.1% 71,017 71,193
40% 39.7% 56,814 56,389
30% 30.1% 42,610 42,736
20% 20.2% 28,407 28,663
10% 10.1% 14,203 14,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,163
Calibration 2     141,204
Calibration 3     140,591
ssj_ops@calibrated=140,898
100% 99.9% 140,898 140,766
90% 89.4% 126,808 125,930
80% 79.3% 112,718 111,795
70% 70.3% 98,628 99,045
60% 60.6% 84,539 85,361
50% 49.7% 70,449 70,052
40% 40.1% 56,359 56,446
30% 30.4% 42,269 42,860
20% 20.1% 28,180 28,328
10% 10.1% 14,090 14,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,002
Calibration 2     142,562
Calibration 3     142,080
ssj_ops@calibrated=142,321
100% 99.8% 142,321 142,050
90% 90.4% 128,089 128,628
80% 79.9% 113,857 113,719
70% 70.1% 99,625 99,819
60% 59.7% 85,393 85,009
50% 50.3% 71,160 71,602
40% 39.9% 56,928 56,759
30% 30.3% 42,696 43,157
20% 19.8% 28,464 28,145
10% 9.8% 14,232 14,015
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,204
Calibration 2     142,161
Calibration 3     142,390
ssj_ops@calibrated=142,276
100% 99.5% 142,276 141,610
90% 89.1% 128,048 126,768
80% 79.5% 113,821 113,144
70% 70.8% 99,593 100,672
60% 60.2% 85,365 85,672
50% 50.0% 71,138 71,174
40% 40.3% 56,910 57,300
30% 29.9% 42,683 42,547
20% 20.0% 28,455 28,416
10% 10.3% 14,228 14,607
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

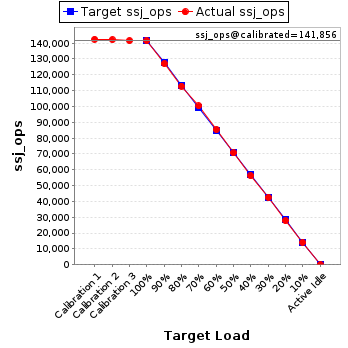

JVM 'WIN-SM9CBV5QG8T.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,477
Calibration 2     142,159
Calibration 3     141,552
ssj_ops@calibrated=141,856
100% 99.8% 141,856 141,546
90% 89.5% 127,670 126,982
80% 79.6% 113,485 112,879
70% 70.7% 99,299 100,316
60% 60.3% 85,113 85,511
50% 49.8% 70,928 70,585
40% 39.5% 56,742 56,074
30% 30.0% 42,557 42,512
20% 19.5% 28,371 27,730
10% 10.0% 14,186 14,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,066
Calibration 2     143,658
Calibration 3     142,978
ssj_ops@calibrated=143,318
100% 99.7% 143,318 142,941
90% 89.4% 128,986 128,119
80% 80.5% 114,654 115,392
70% 70.2% 100,322 100,586
60% 60.0% 85,991 85,927
50% 50.1% 71,659 71,865
40% 40.0% 57,327 57,397
30% 29.9% 42,995 42,890
20% 20.4% 28,664 29,248
10% 9.8% 14,332 14,110
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

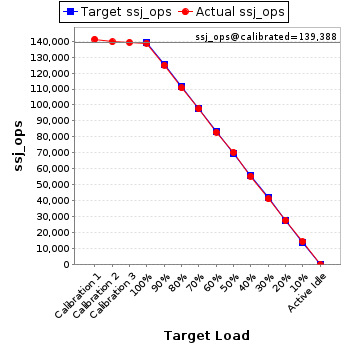

JVM 'WIN-SM9CBV5QG8T.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,166
Calibration 2     139,530
Calibration 3     139,246
ssj_ops@calibrated=139,388
100% 99.5% 139,388 138,736
90% 89.6% 125,449 124,903
80% 79.4% 111,510 110,695
70% 70.0% 97,572 97,552
60% 59.5% 83,633 83,002
50% 50.5% 69,694 70,330
40% 39.8% 55,755 55,417
30% 29.6% 41,816 41,232
20% 20.0% 27,878 27,809
10% 10.3% 13,939 14,372
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,779
Calibration 2     140,762
Calibration 3     140,440
ssj_ops@calibrated=140,601
100% 99.8% 140,601 140,348
90% 90.3% 126,541 126,965
80% 79.8% 112,481 112,253
70% 70.8% 98,421 99,511
60% 59.8% 84,361 84,040
50% 50.3% 70,300 70,686
40% 39.9% 56,240 56,136
30% 30.2% 42,180 42,433
20% 19.9% 28,120 27,911
10% 10.0% 14,060 14,038
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,220
Calibration 2     140,941
Calibration 3     140,655
ssj_ops@calibrated=140,798
100% 99.7% 140,798 140,392
90% 90.5% 126,718 127,385
80% 80.1% 112,638 112,767
70% 69.9% 98,559 98,468
60% 59.7% 84,479 84,076
50% 50.5% 70,399 71,069
40% 40.0% 56,319 56,291
30% 29.5% 42,239 41,476
20% 20.0% 28,160 28,114
10% 10.1% 14,080 14,160
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
