Supermicro Inc SuperServer SYS-521E-WR SPECpower_ssj2008 = 10,322 overall ssj_ops/watt
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: Aug 10, 2023
Hardware Availability: Jan-2023 Software Availability: Apr-2023 Publication: Sep 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 346 22.6
Calibration 2 348 22.8
Calibration 3 348 23.4
100% 347 23.8
90% 345 24.2
80% 317 24.4
70% 261 24.6
60% 213 24.8
50% 196 24.7
40% 181 24.7
30% 167 24.7
20% 155 24.6
10% 142 24.6
Active Idle 87.6 24.4

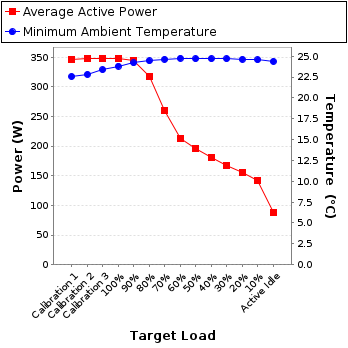

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: TESCOM
Accredited by: 12-May-2023
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 1.67 2.0 0.979 346 0.2%
Calibration 2 212 300.0 1.68 2.0 0.979 348 0.2%
Calibration 3 212 300.0 1.68 2.0 0.979 348 0.2%
100% 212 300.0 1.68 2.0 0.979 347 0.2%
90% 211 300.0 1.67 2.0 0.979 345 0.2%
80% 211 300.0 1.54 2.0 0.977 317 0.2%
70% 211 300.0 1.28 2.0 0.969 261 0.3%
60% 210 300.0 1.05 2.0 0.961 213 0.3%
50% 210 300.0 0.974 2.0 0.956 196 0.3%
40% 211 300.0 0.903 2.0 0.952 181 0.3%
30% 211 300.0 0.839 1.0 0.947 167 0.3%
20% 211 300.0 0.780 1.0 0.941 155 0.3%
10% 211 300.0 0.721 1.0 0.932 142 0.3%
Active Idle 211 300.0 0.483 1.0 0.860 87.6 0.4%

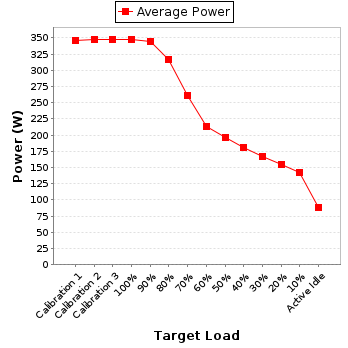

Power details for pwr1
