Supermicro Inc SuperServer SYS-521E-WR ssj_ops@100% = 6,749,219
ssj_ops@100% per JVM = 129,793
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: Aug 11, 2023
Hardware Availability: Jan-2023 Software Availability: Apr-2023 Publication: Sep 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,838,063
Calibration 2     6,775,877
Calibration 3     6,761,606
ssj_ops@calibrated=6,768,741
100% 99.7% 6,768,741 6,749,219
90% 89.9% 6,091,867 6,087,544
80% 80.0% 5,414,993 5,412,850
70% 70.0% 4,738,119 4,740,047
60% 59.9% 4,061,245 4,055,722
50% 49.9% 3,384,371 3,379,463
40% 40.0% 2,707,497 2,706,785
30% 30.0% 2,030,622 2,030,233
20% 20.0% 1,353,748 1,354,473
10% 10.0% 676,874 677,783
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: sut
Hardware
Hardware Vendor: Supermicro Inc
Model: SuperServer SYS-521E-WR
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8471N 1.8 GHz (Intel Turbo Boost Technology up to 3.60 GHz)
CPU Characteristics: 52-Core, 1.8 GHz, 97.5MB L3 Cache
CPU Frequency (MHz): 1800
CPU(s) Enabled: 52 cores, 1 chip, 52 cores/chip
Hardware Threads: 104 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 99840 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 8 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1,G1,H1 populated.
Power Supply Quantity and Rating (W): 1 x 920
Power Supply Details: P/N: PWS-920P-1R2
Disk Drive: 1 x 960GB Micron M500 2.5" SATA SSD, P/N: MTFDDAK960MAV
Disk Controller: onboard SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual LAN Intel I210 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1668)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=3900 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:BiasedLockingStartupDelay=30000 -XX:+UseNUMA -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start/NODE[0-3] /AFFINITY [ [0x3, 0xC, 0x30, 0xC0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000]
JVM Instances: 52
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.3a
Management Firmware Version: 1.00.52
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5025230
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SM9CBV5QG8T.001 129,491
WIN-SM9CBV5QG8T.002 129,318
WIN-SM9CBV5QG8T.003 131,730
WIN-SM9CBV5QG8T.004 129,648
WIN-SM9CBV5QG8T.005 131,667
WIN-SM9CBV5QG8T.006 130,628
WIN-SM9CBV5QG8T.007 129,923
WIN-SM9CBV5QG8T.008 129,377
WIN-SM9CBV5QG8T.009 129,092
WIN-SM9CBV5QG8T.010 131,039
WIN-SM9CBV5QG8T.011 129,902
WIN-SM9CBV5QG8T.012 129,791
WIN-SM9CBV5QG8T.013 127,806
WIN-SM9CBV5QG8T.014 129,416
WIN-SM9CBV5QG8T.015 127,713
WIN-SM9CBV5QG8T.016 127,596
WIN-SM9CBV5QG8T.017 130,651
WIN-SM9CBV5QG8T.018 129,623
WIN-SM9CBV5QG8T.019 129,217
WIN-SM9CBV5QG8T.020 130,027
WIN-SM9CBV5QG8T.021 128,834
WIN-SM9CBV5QG8T.022 130,559
WIN-SM9CBV5QG8T.023 129,650
WIN-SM9CBV5QG8T.024 131,104
WIN-SM9CBV5QG8T.025 127,875
WIN-SM9CBV5QG8T.026 128,815
WIN-SM9CBV5QG8T.027 129,557
WIN-SM9CBV5QG8T.028 128,895
WIN-SM9CBV5QG8T.029 130,737
WIN-SM9CBV5QG8T.030 128,765
WIN-SM9CBV5QG8T.031 129,917
WIN-SM9CBV5QG8T.032 131,315
WIN-SM9CBV5QG8T.033 130,719
WIN-SM9CBV5QG8T.034 128,135
WIN-SM9CBV5QG8T.035 130,891
WIN-SM9CBV5QG8T.036 131,574
WIN-SM9CBV5QG8T.037 129,571
WIN-SM9CBV5QG8T.038 130,557
WIN-SM9CBV5QG8T.039 129,049
WIN-SM9CBV5QG8T.040 129,605
WIN-SM9CBV5QG8T.041 127,956
WIN-SM9CBV5QG8T.042 131,348
WIN-SM9CBV5QG8T.043 129,846
WIN-SM9CBV5QG8T.044 130,321
WIN-SM9CBV5QG8T.045 131,076
WIN-SM9CBV5QG8T.046 130,066
WIN-SM9CBV5QG8T.047 129,405
WIN-SM9CBV5QG8T.048 131,193
WIN-SM9CBV5QG8T.049 128,314
WIN-SM9CBV5QG8T.050 129,992
WIN-SM9CBV5QG8T.051 129,022
WIN-SM9CBV5QG8T.052 130,898
ssj_ops@100% 6,749,219
ssj_ops@100% per JVM 129,793
Graph of per-instance results
JVM 'WIN-SM9CBV5QG8T.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,496
Calibration 2     129,363
Calibration 3     129,739
ssj_ops@calibrated=129,551
100% 100.0% 129,551 129,491
90% 90.2% 116,596 116,876
80% 79.8% 103,641 103,436
70% 70.0% 90,686 90,734
60% 60.0% 77,731 77,754
50% 50.5% 64,776 65,388
40% 39.7% 51,821 51,469
30% 30.4% 38,865 39,333
20% 20.4% 25,910 26,488
10% 10.0% 12,955 12,948
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,659
Calibration 2     130,173
Calibration 3     129,054
ssj_ops@calibrated=129,613
100% 99.8% 129,613 129,318
90% 89.9% 116,652 116,533
80% 79.9% 103,691 103,594
70% 70.3% 90,729 91,116
60% 59.8% 77,768 77,470
50% 50.1% 64,807 64,939
40% 39.6% 51,845 51,263
30% 30.0% 38,884 38,856
20% 20.0% 25,923 25,983
10% 10.1% 12,961 13,144
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,500
Calibration 2     132,314
Calibration 3     131,674
ssj_ops@calibrated=131,994
100% 99.8% 131,994 131,730
90% 88.6% 118,795 116,986
80% 79.1% 105,595 104,444
70% 70.0% 92,396 92,423
60% 59.7% 79,196 78,744
50% 50.6% 65,997 66,813
40% 39.4% 52,798 51,985
30% 29.8% 39,598 39,398
20% 20.1% 26,399 26,479
10% 10.4% 13,199 13,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,961
Calibration 2     130,097
Calibration 3     130,294
ssj_ops@calibrated=130,195
100% 99.6% 130,195 129,648
90% 88.9% 117,176 115,738
80% 80.0% 104,156 104,197
70% 70.1% 91,137 91,268
60% 60.7% 78,117 78,984
50% 49.6% 65,098 64,524
40% 40.1% 52,078 52,154
30% 29.9% 39,059 38,908
20% 19.6% 26,039 25,558
10% 10.2% 13,020 13,252
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,429
Calibration 2     131,705
Calibration 3     131,683
ssj_ops@calibrated=131,694
100% 100.0% 131,694 131,667
90% 90.0% 118,525 118,546
80% 79.4% 105,355 104,547
70% 69.7% 92,186 91,788
60% 60.0% 79,016 78,979
50% 50.3% 65,847 66,254
40% 39.8% 52,678 52,408
30% 29.9% 39,508 39,328
20% 20.0% 26,339 26,273
10% 9.8% 13,169 12,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,951
Calibration 2     131,421
Calibration 3     130,842
ssj_ops@calibrated=131,131
100% 99.6% 131,131 130,628
90% 90.2% 118,018 118,332
80% 79.5% 104,905 104,255
70% 71.0% 91,792 93,088
60% 60.3% 78,679 79,123
50% 49.9% 65,566 65,390
40% 40.1% 52,453 52,611
30% 29.8% 39,339 39,132
20% 19.7% 26,226 25,845
10% 10.0% 13,113 13,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,634
Calibration 2     130,512
Calibration 3     129,746
ssj_ops@calibrated=130,129
100% 99.8% 130,129 129,923
90% 90.4% 117,116 117,699
80% 80.3% 104,104 104,439
70% 69.2% 91,091 90,055
60% 60.3% 78,078 78,493
50% 50.0% 65,065 65,064
40% 40.1% 52,052 52,163
30% 30.7% 39,039 39,944
20% 20.3% 26,026 26,432
10% 10.0% 13,013 12,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,750
Calibration 2     130,133
Calibration 3     129,647
ssj_ops@calibrated=129,890
100% 99.6% 129,890 129,377
90% 90.5% 116,901 117,522
80% 80.4% 103,912 104,468
70% 69.9% 90,923 90,839
60% 59.6% 77,934 77,474
50% 49.5% 64,945 64,302
40% 40.7% 51,956 52,834
30% 30.2% 38,967 39,203
20% 20.2% 25,978 26,192
10% 10.0% 12,989 13,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

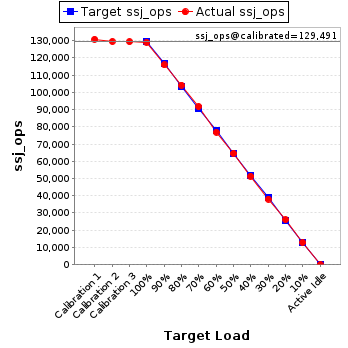

JVM 'WIN-SM9CBV5QG8T.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,869
Calibration 2     129,566
Calibration 3     129,416
ssj_ops@calibrated=129,491
100% 99.7% 129,491 129,092
90% 89.5% 116,542 115,954
80% 80.5% 103,593 104,285
70% 70.9% 90,644 91,761
60% 59.4% 77,695 76,937
50% 49.9% 64,746 64,578
40% 39.6% 51,796 51,330
30% 29.4% 38,847 38,095
20% 20.2% 25,898 26,115
10% 10.0% 12,949 12,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

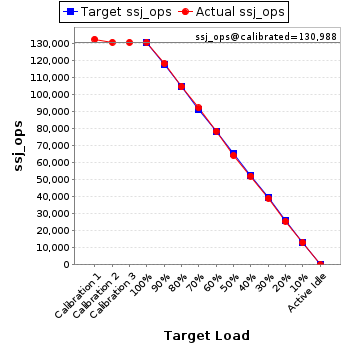

JVM 'WIN-SM9CBV5QG8T.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,800
Calibration 2     131,007
Calibration 3     130,970
ssj_ops@calibrated=130,988
100% 100.0% 130,988 131,039
90% 90.5% 117,889 118,559
80% 80.0% 104,791 104,815
70% 70.5% 91,692 92,298
60% 60.1% 78,593 78,668
50% 49.1% 65,494 64,295
40% 39.8% 52,395 52,197
30% 29.8% 39,296 39,096
20% 19.5% 26,198 25,553
10% 10.0% 13,099 13,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,684
Calibration 2     129,778
Calibration 3     129,504
ssj_ops@calibrated=129,641
100% 100.2% 129,641 129,902
90% 90.7% 116,677 117,544
80% 80.5% 103,713 104,310
70% 70.1% 90,749 90,875
60% 59.3% 77,785 76,915
50% 50.2% 64,821 65,143
40% 40.2% 51,857 52,065
30% 29.5% 38,892 38,258
20% 20.0% 25,928 25,992
10% 10.0% 12,964 12,993
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,753
Calibration 2     130,723
Calibration 3     130,315
ssj_ops@calibrated=130,519
100% 99.4% 130,519 129,791
90% 89.3% 117,467 116,586
80% 80.3% 104,415 104,857
70% 69.8% 91,363 91,165
60% 59.7% 78,311 77,860
50% 49.7% 65,259 64,849
40% 39.8% 52,208 51,891
30% 30.4% 39,156 39,699
20% 20.2% 26,104 26,365
10% 9.9% 13,052 12,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,934
Calibration 2     129,084
Calibration 3     128,233
ssj_ops@calibrated=128,659
100% 99.3% 128,659 127,806
90% 89.6% 115,793 115,279
80% 79.9% 102,927 102,848
70% 70.6% 90,061 90,825
60% 59.3% 77,195 76,237
50% 50.6% 64,329 65,123
40% 39.8% 51,463 51,231
30% 29.9% 38,598 38,447
20% 19.9% 25,732 25,577
10% 9.8% 12,866 12,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,134
Calibration 2     130,845
Calibration 3     130,731
ssj_ops@calibrated=130,788
100% 99.0% 130,788 129,416
90% 90.3% 117,709 118,087
80% 80.0% 104,630 104,690
70% 70.3% 91,552 91,919
60% 60.3% 78,473 78,801
50% 49.8% 65,394 65,146
40% 40.5% 52,315 53,000
30% 30.1% 39,236 39,427
20% 20.0% 26,158 26,165
10% 9.9% 13,079 12,928
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,939
Calibration 2     128,817
Calibration 3     128,256
ssj_ops@calibrated=128,537
100% 99.4% 128,537 127,713
90% 89.4% 115,683 114,853
80% 80.3% 102,829 103,192
70% 70.4% 89,976 90,435
60% 60.3% 77,122 77,510
50% 50.1% 64,268 64,342
40% 39.9% 51,415 51,287
30% 30.1% 38,561 38,696
20% 19.8% 25,707 25,472
10% 10.0% 12,854 12,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,339
Calibration 2     128,640
Calibration 3     128,051
ssj_ops@calibrated=128,346
100% 99.4% 128,346 127,596
90% 90.7% 115,511 116,441
80% 80.1% 102,677 102,786
70% 70.2% 89,842 90,077
60% 59.7% 77,007 76,686
50% 49.6% 64,173 63,722
40% 40.2% 51,338 51,546
30% 30.0% 38,504 38,468
20% 20.0% 25,669 25,674
10% 9.9% 12,835 12,742
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,088
Calibration 2     131,541
Calibration 3     130,710
ssj_ops@calibrated=131,126
100% 99.6% 131,126 130,651
90% 90.1% 118,013 118,180
80% 79.5% 104,901 104,292
70% 70.0% 91,788 91,739
60% 59.4% 78,675 77,867
50% 49.8% 65,563 65,296
40% 39.5% 52,450 51,742
30% 30.0% 39,338 39,363
20% 20.1% 26,225 26,346
10% 10.3% 13,113 13,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,523
Calibration 2     129,763
Calibration 3     129,746
ssj_ops@calibrated=129,754
100% 99.9% 129,754 129,623
90% 89.8% 116,779 116,456
80% 80.1% 103,804 103,883
70% 69.8% 90,828 90,547
60% 59.4% 77,853 77,013
50% 50.3% 64,877 65,267
40% 39.5% 51,902 51,294
30% 30.6% 38,926 39,722
20% 20.2% 25,951 26,219
10% 10.1% 12,975 13,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,798
Calibration 2     129,765
Calibration 3     129,377
ssj_ops@calibrated=129,571
100% 99.7% 129,571 129,217
90% 90.2% 116,614 116,916
80% 78.6% 103,657 101,830
70% 69.3% 90,700 89,781
60% 59.8% 77,743 77,535
50% 50.1% 64,786 64,867
40% 40.1% 51,829 51,924
30% 29.8% 38,871 38,610
20% 20.1% 25,914 25,987
10% 10.0% 12,957 12,990
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,882
Calibration 2     131,004
Calibration 3     130,978
ssj_ops@calibrated=130,991
100% 99.3% 130,991 130,027
90% 89.9% 117,892 117,773
80% 80.6% 104,793 105,627
70% 70.1% 91,694 91,860
60% 59.4% 78,595 77,854
50% 50.4% 65,495 65,999
40% 40.6% 52,396 53,215
30% 30.4% 39,297 39,768
20% 20.2% 26,198 26,522
10% 10.0% 13,099 13,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,499
Calibration 2     129,037
Calibration 3     128,946
ssj_ops@calibrated=128,992
100% 99.9% 128,992 128,834
90% 90.8% 116,093 117,063
80% 79.4% 103,193 102,446
70% 70.3% 90,294 90,699
60% 60.7% 77,395 78,358
50% 50.2% 64,496 64,714
40% 39.7% 51,597 51,206
30% 29.5% 38,698 38,104
20% 20.1% 25,798 25,962
10% 10.1% 12,899 12,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,242
Calibration 2     130,791
Calibration 3     130,436
ssj_ops@calibrated=130,613
100% 100.0% 130,613 130,559
90% 89.7% 117,552 117,133
80% 80.0% 104,491 104,484
70% 70.7% 91,429 92,354
60% 59.7% 78,368 77,924
50% 49.5% 65,307 64,654
40% 40.3% 52,245 52,693
30% 29.9% 39,184 39,022
20% 19.9% 26,123 25,990
10% 10.0% 13,061 13,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,518
Calibration 2     129,326
Calibration 3     129,553
ssj_ops@calibrated=129,439
100% 100.2% 129,439 129,650
90% 90.3% 116,495 116,834
80% 80.0% 103,551 103,551
70% 70.3% 90,607 91,002
60% 59.9% 77,663 77,540
50% 49.2% 64,720 63,676
40% 40.7% 51,776 52,641
30% 30.1% 38,832 39,010
20% 20.2% 25,888 26,122
10% 10.4% 12,944 13,467
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,963
Calibration 2     131,466
Calibration 3     130,986
ssj_ops@calibrated=131,226
100% 99.9% 131,226 131,104
90% 89.7% 118,103 117,699
80% 79.8% 104,981 104,660
70% 69.8% 91,858 91,568
60% 60.1% 78,736 78,840
50% 49.1% 65,613 64,483
40% 40.0% 52,490 52,469
30% 30.1% 39,368 39,518
20% 20.0% 26,245 26,253
10% 10.2% 13,123 13,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,926
Calibration 2     128,739
Calibration 3     127,949
ssj_ops@calibrated=128,344
100% 99.6% 128,344 127,875
90% 89.5% 115,509 114,832
80% 79.5% 102,675 102,019
70% 69.9% 89,841 89,733
60% 60.2% 77,006 77,324
50% 50.4% 64,172 64,719
40% 40.2% 51,337 51,657
30% 30.1% 38,503 38,609
20% 19.9% 25,669 25,567
10% 10.0% 12,834 12,777
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,617
Calibration 2     130,139
Calibration 3     129,787
ssj_ops@calibrated=129,963
100% 99.1% 129,963 128,815
90% 90.1% 116,967 117,139
80% 79.9% 103,971 103,820
70% 70.2% 90,974 91,280
60% 60.5% 77,978 78,621
50% 49.8% 64,982 64,717
40% 39.4% 51,985 51,204
30% 30.5% 38,989 39,611
20% 19.6% 25,993 25,454
10% 10.1% 12,996 13,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,166
Calibration 2     129,871
Calibration 3     129,182
ssj_ops@calibrated=129,526
100% 100.0% 129,526 129,557
90% 90.0% 116,574 116,534
80% 80.4% 103,621 104,080
70% 69.4% 90,668 89,912
60% 59.2% 77,716 76,719
50% 50.1% 64,763 64,875
40% 39.9% 51,810 51,656
30% 29.7% 38,858 38,478
20% 19.9% 25,905 25,786
10% 9.9% 12,953 12,831
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,767
Calibration 2     129,122
Calibration 3     128,958
ssj_ops@calibrated=129,040
100% 99.9% 129,040 128,895
90% 90.1% 116,136 116,294
80% 79.6% 103,232 102,723
70% 70.4% 90,328 90,857
60% 60.0% 77,424 77,452
50% 50.0% 64,520 64,558
40% 39.7% 51,616 51,253
30% 29.9% 38,712 38,543
20% 20.1% 25,808 25,967
10% 9.8% 12,904 12,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,481
Calibration 2     131,876
Calibration 3     131,647
ssj_ops@calibrated=131,762
100% 99.2% 131,762 130,737
90% 88.9% 118,586 117,119
80% 79.5% 105,409 104,776
70% 70.4% 92,233 92,717
60% 59.4% 79,057 78,210
50% 49.6% 65,881 65,308
40% 39.6% 52,705 52,157
30% 30.0% 39,529 39,523
20% 19.9% 26,352 26,253
10% 9.9% 13,176 13,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,228
Calibration 2     128,871
Calibration 3     128,796
ssj_ops@calibrated=128,833
100% 99.9% 128,833 128,765
90% 88.9% 115,950 114,546
80% 80.4% 103,067 103,546
70% 69.7% 90,183 89,799
60% 59.4% 77,300 76,560
50% 49.6% 64,417 63,878
40% 40.0% 51,533 51,556
30% 30.1% 38,650 38,726
20% 20.0% 25,767 25,767
10% 10.2% 12,883 13,118
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,717
Calibration 2     129,940
Calibration 3     129,512
ssj_ops@calibrated=129,726
100% 100.1% 129,726 129,917
90% 89.9% 116,754 116,616
80% 80.5% 103,781 104,389
70% 69.8% 90,808 90,525
60% 59.8% 77,836 77,598
50% 49.2% 64,863 63,846
40% 40.1% 51,891 52,037
30% 29.9% 38,918 38,821
20% 20.2% 25,945 26,167
10% 9.8% 12,973 12,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

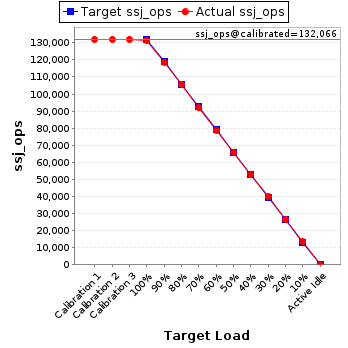

JVM 'WIN-SM9CBV5QG8T.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,917
Calibration 2     132,010
Calibration 3     132,122
ssj_ops@calibrated=132,066
100% 99.4% 132,066 131,315
90% 89.8% 118,859 118,632
80% 80.0% 105,653 105,692
70% 69.7% 92,446 92,101
60% 59.8% 79,240 78,925
50% 49.9% 66,033 65,923
40% 39.8% 52,826 52,560
30% 30.1% 39,620 39,792
20% 20.0% 26,413 26,390
10% 10.1% 13,207 13,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

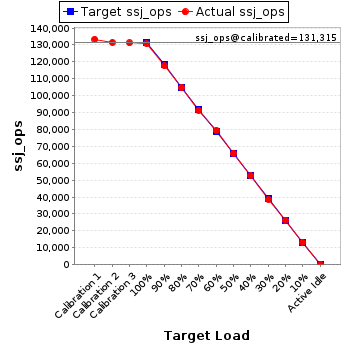

JVM 'WIN-SM9CBV5QG8T.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,377
Calibration 2     131,457
Calibration 3     131,173
ssj_ops@calibrated=131,315
100% 99.5% 131,315 130,719
90% 89.6% 118,183 117,625
80% 79.7% 105,052 104,634
70% 69.5% 91,920 91,255
60% 60.6% 78,789 79,522
50% 50.2% 65,657 65,974
40% 40.0% 52,526 52,550
30% 29.5% 39,394 38,676
20% 20.1% 26,263 26,418
10% 10.1% 13,131 13,278
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,595
Calibration 2     128,942
Calibration 3     129,058
ssj_ops@calibrated=129,000
100% 99.3% 129,000 128,135
90% 89.6% 116,100 115,540
80% 79.8% 103,200 102,960
70% 70.0% 90,300 90,269
60% 60.3% 77,400 77,736
50% 49.9% 64,500 64,433
40% 40.3% 51,600 51,961
30% 30.2% 38,700 38,933
20% 20.1% 25,800 25,949
10% 10.2% 12,900 13,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,906
Calibration 2     131,168
Calibration 3     131,210
ssj_ops@calibrated=131,189
100% 99.8% 131,189 130,891
90% 90.5% 118,070 118,720
80% 80.5% 104,951 105,659
70% 70.0% 91,832 91,836
60% 60.0% 78,713 78,659
50% 49.6% 65,594 65,071
40% 39.7% 52,476 52,140
30% 30.3% 39,357 39,757
20% 19.9% 26,238 26,156
10% 9.7% 13,119 12,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

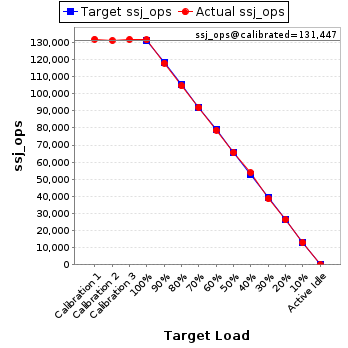

JVM 'WIN-SM9CBV5QG8T.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,894
Calibration 2     131,156
Calibration 3     131,738
ssj_ops@calibrated=131,447
100% 100.1% 131,447 131,574
90% 89.7% 118,302 117,885
80% 79.5% 105,158 104,548
70% 69.9% 92,013 91,942
60% 59.8% 78,868 78,667
50% 49.8% 65,723 65,526
40% 40.9% 52,579 53,787
30% 29.3% 39,434 38,556
20% 20.0% 26,289 26,271
10% 9.9% 13,145 12,974
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,636
Calibration 2     130,258
Calibration 3     130,007
ssj_ops@calibrated=130,132
100% 99.6% 130,132 129,571
90% 89.5% 117,119 116,435
80% 80.1% 104,106 104,299
70% 69.9% 91,092 90,933
60% 60.4% 78,079 78,582
50% 49.7% 65,066 64,666
40% 39.9% 52,053 51,932
30% 30.1% 39,040 39,134
20% 19.4% 26,026 25,246
10% 10.1% 13,013 13,136
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,437
Calibration 2     131,444
Calibration 3     130,780
ssj_ops@calibrated=131,112
100% 99.6% 131,112 130,557
90% 89.5% 118,001 117,385
80% 79.7% 104,890 104,454
70% 70.2% 91,778 92,085
60% 60.3% 78,667 79,075
50% 49.6% 65,556 65,067
40% 40.0% 52,445 52,457
30% 30.1% 39,334 39,471
20% 19.7% 26,222 25,765
10% 9.7% 13,111 12,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,007
Calibration 2     129,654
Calibration 3     129,693
ssj_ops@calibrated=129,673
100% 99.5% 129,673 129,049
90% 90.5% 116,706 117,344
80% 79.5% 103,739 103,080
70% 69.8% 90,771 90,486
60% 59.6% 77,804 77,242
50% 49.7% 64,837 64,508
40% 39.5% 51,869 51,194
30% 30.1% 38,902 39,095
20% 20.4% 25,935 26,420
10% 9.8% 12,967 12,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,924
Calibration 2     130,657
Calibration 3     129,818
ssj_ops@calibrated=130,238
100% 99.5% 130,238 129,605
90% 90.6% 117,214 117,944
80% 79.0% 104,190 102,930
70% 70.2% 91,166 91,371
60% 59.9% 78,143 78,058
50% 50.3% 65,119 65,496
40% 40.3% 52,095 52,535
30% 29.9% 39,071 38,976
20% 19.9% 26,048 25,898
10% 10.2% 13,024 13,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,088
Calibration 2     128,309
Calibration 3     128,247
ssj_ops@calibrated=128,278
100% 99.7% 128,278 127,956
90% 90.5% 115,450 116,046
80% 80.1% 102,622 102,691
70% 70.5% 89,794 90,474
60% 59.5% 76,967 76,265
50% 50.7% 64,139 65,066
40% 40.0% 51,311 51,356
30% 30.0% 38,483 38,467
20% 20.1% 25,656 25,808
10% 10.1% 12,828 12,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,649
Calibration 2     131,094
Calibration 3     130,954
ssj_ops@calibrated=131,024
100% 100.2% 131,024 131,348
90% 90.7% 117,922 118,836
80% 80.3% 104,819 105,155
70% 70.1% 91,717 91,877
60% 60.8% 78,615 79,652
50% 50.4% 65,512 66,022
40% 40.3% 52,410 52,775
30% 29.9% 39,307 39,148
20% 20.0% 26,205 26,248
10% 10.1% 13,102 13,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,383
Calibration 2     130,343
Calibration 3     130,033
ssj_ops@calibrated=130,188
100% 99.7% 130,188 129,846
90% 90.0% 117,169 117,122
80% 80.1% 104,150 104,338
70% 70.8% 91,131 92,164
60% 60.2% 78,113 78,377
50% 49.9% 65,094 64,964
40% 40.0% 52,075 52,051
30% 30.5% 39,056 39,663
20% 20.1% 26,038 26,161
10% 10.1% 13,019 13,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,135
Calibration 2     130,817
Calibration 3     130,924
ssj_ops@calibrated=130,870
100% 99.6% 130,870 130,321
90% 89.9% 117,783 117,643
80% 79.7% 104,696 104,275
70% 69.6% 91,609 91,112
60% 59.5% 78,522 77,901
50% 50.1% 65,435 65,551
40% 40.0% 52,348 52,352
30% 29.8% 39,261 38,959
20% 20.3% 26,174 26,548
10% 9.9% 13,087 12,986
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,707
Calibration 2     131,451
Calibration 3     131,088
ssj_ops@calibrated=131,269
100% 99.9% 131,269 131,076
90% 90.8% 118,142 119,196
80% 80.6% 105,015 105,799
70% 69.9% 91,889 91,737
60% 60.5% 78,762 79,457
50% 50.0% 65,635 65,680
40% 40.3% 52,508 52,937
30% 29.7% 39,381 38,996
20% 19.8% 26,254 26,038
10% 9.9% 13,127 13,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,173
Calibration 2     130,335
Calibration 3     130,035
ssj_ops@calibrated=130,185
100% 99.9% 130,185 130,066
90% 89.6% 117,167 116,675
80% 79.8% 104,148 103,883
70% 70.3% 91,130 91,583
60% 60.4% 78,111 78,640
50% 49.8% 65,093 64,817
40% 39.9% 52,074 51,895
30% 30.0% 39,056 39,026
20% 20.0% 26,037 26,041
10% 10.1% 13,019 13,107
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,898
Calibration 2     129,440
Calibration 3     129,607
ssj_ops@calibrated=129,523
100% 99.9% 129,523 129,405
90% 90.0% 116,571 116,546
80% 80.5% 103,619 104,285
70% 69.5% 90,666 90,023
60% 59.7% 77,714 77,326
50% 49.6% 64,762 64,250
40% 39.7% 51,809 51,415
30% 30.1% 38,857 38,984
20% 20.1% 25,905 25,980
10% 9.9% 12,952 12,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,795
Calibration 2     131,218
Calibration 3     131,704
ssj_ops@calibrated=131,461
100% 99.8% 131,461 131,193
90% 89.4% 118,315 117,522
80% 81.1% 105,169 106,608
70% 69.8% 92,023 91,821
60% 60.3% 78,877 79,241
50% 49.4% 65,730 64,994
40% 40.5% 52,584 53,204
30% 29.7% 39,438 39,061
20% 20.2% 26,292 26,574
10% 10.0% 13,146 13,160
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,842
Calibration 2     129,544
Calibration 3     128,776
ssj_ops@calibrated=129,160
100% 99.3% 129,160 128,314
90% 89.5% 116,244 115,552
80% 80.1% 103,328 103,497
70% 69.9% 90,412 90,309
60% 59.0% 77,496 76,151
50% 50.5% 64,580 65,167
40% 40.1% 51,664 51,819
30% 30.4% 38,748 39,262
20% 20.4% 25,832 26,369
10% 9.8% 12,916 12,656
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,949
Calibration 2     130,276
Calibration 3     129,887
ssj_ops@calibrated=130,081
100% 99.9% 130,081 129,992
90% 89.9% 117,073 116,920
80% 80.4% 104,065 104,527
70% 69.5% 91,057 90,362
60% 59.4% 78,049 77,317
50% 49.7% 65,041 64,665
40% 40.0% 52,033 52,044
30% 30.1% 39,024 39,148
20% 20.0% 26,016 26,011
10% 10.1% 13,008 13,142
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,016
Calibration 2     130,189
Calibration 3     129,217
ssj_ops@calibrated=129,703
100% 99.5% 129,703 129,022
90% 91.2% 116,733 118,225
80% 79.8% 103,762 103,465
70% 70.1% 90,792 90,934
60% 60.0% 77,822 77,883
50% 49.7% 64,852 64,521
40% 39.6% 51,881 51,399
30% 29.4% 38,911 38,172
20% 19.8% 25,941 25,628
10% 10.0% 12,970 12,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SM9CBV5QG8T.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,489
Calibration 2     130,689
Calibration 3     130,815
ssj_ops@calibrated=130,752
100% 100.1% 130,752 130,898
90% 89.5% 117,677 117,084
80% 80.1% 104,601 104,780
70% 69.1% 91,526 90,336
60% 60.4% 78,451 78,991
50% 50.8% 65,376 66,373
40% 40.0% 52,301 52,283
30% 30.0% 39,226 39,239
20% 19.9% 26,150 26,029
10% 10.2% 13,075 13,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
