SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 | SPECpower_ssj2008 = 16,978 overall ssj_ops/watt | ||||
| Test Sponsor: | xFusion Digital Technologies Co., Ltd | SPEC License #: | 6488 | Test Method: | Single Node |
| Tested By: | xFusion Digital Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Aug 3, 2023 |
| Hardware Availability: | Jan-2023 | Software Availability: | Aug-2022 | Publication: | Aug 30, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

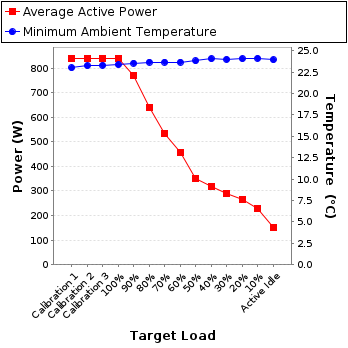

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 838 | 23.0 |
| Calibration 2 | 840 | 23.2 |
| Calibration 3 | 839 | 23.3 |
| 100% | 840 | 23.4 |
| 90% | 770 | 23.6 |
| 80% | 640 | 23.7 |
| 70% | 532 | 23.7 |
| 60% | 456 | 23.7 |
| 50% | 351 | 23.8 |
| 40% | 319 | 24.1 |
| 30% | 291 | 24.0 |
| 20% | 266 | 24.1 |
| 10% | 231 | 24.1 |
| Active Idle | 153 | 23.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA Inc. |
| Model: | WT210 |
| Serial Number: | 91M412343 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 1GA23009139-0009 |
| Date of Calibration: | 31-Jul-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | PCSensor.com |
| Model: | USB9097 + DS18B20 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |

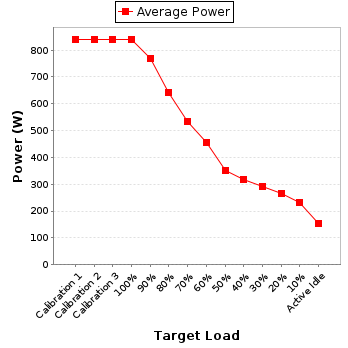

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 223 | 300.0 | 3.79 | 5.0 | 0.990 | 838 | 0.4% |
| Calibration 2 | 223 | 300.0 | 3.80 | 5.0 | 0.990 | 840 | 0.4% |
| Calibration 3 | 224 | 300.0 | 3.79 | 5.0 | 0.990 | 839 | 0.4% |
| 100% | 223 | 300.0 | 3.80 | 5.0 | 0.990 | 840 | 0.4% |
| 90% | 224 | 300.0 | 3.51 | 5.0 | 0.989 | 770 | 0.4% |
| 80% | 224 | 300.0 | 2.92 | 5.0 | 0.986 | 640 | 0.4% |
| 70% | 224 | 300.0 | 2.41 | 5.0 | 0.983 | 532 | 0.5% |
| 60% | 225 | 300.0 | 2.07 | 5.0 | 0.979 | 456 | 0.5% |
| 50% | 225 | 300.0 | 1.61 | 2.0 | 0.968 | 351 | 0.4% |
| 40% | 225 | 300.0 | 1.47 | 2.0 | 0.963 | 319 | 0.4% |
| 30% | 226 | 300.0 | 1.35 | 2.0 | 0.958 | 291 | 0.4% |
| 20% | 225 | 300.0 | 1.24 | 2.0 | 0.952 | 266 | 0.4% |
| 10% | 225 | 300.0 | 1.09 | 2.0 | 0.942 | 231 | 0.5% |
| Active Idle | 226 | 300.0 | 0.767 | 2.0 | 0.885 | 153 | 0.6% |
