SPECpower_ssj2008

Supermicro SuperServer SYS-F511E2-RT			SPECpower_ssj2008 = 12,491 overall ssj_ops/watt
Test Sponsor:	Supermicro	SPEC License #:	1176	Test Method:	Multi Node
Tested By:	Supermicro	Test Location:	Zhonghe Dist, New Taipei City, Taiwan (R.O.C.)	Test Date:	Jul 25, 2023
Hardware Availability:	Jan-2023	Software Availability:	Jul-2023	Publication:	Aug 23, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
4	4	224	448	1,024	4	224

Shared Hardware
Enclosure:	CSE-F418BC4-R2K08BP
Form Factor:	4U
Power Supply Quantity and Rating (W):	2 x 2000
Power Supply Details:	SUPERMICRO,PWS-2K08A
Network Switch:	NETGEAR GS324 Gigabit Switch
Network Switch Details:	24 Port 1Gb Ethernet Switch
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	None

Hardware per Node
Hardware Vendor:	Supermicro
Model:	SuperServer SYS-F511E2-RT
Form Factor:	Blade
CPU Name:	Intel(R) Xeon(R) 8480+,2.00GHz
CPU Characteristics:	56 Core, 2.0GHz, 105 MB cache
CPU Frequency (MHz):	2000
CPU(s) Enabled:	56 cores, 1 chip, 56 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	105 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	8 x 32 GB
Memory Details:	32GB 2Rx4 DDR5-4800; CPU1 A1,B1,C1,D1,E1,F1,G1,H1 populated.
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1x480GB M.2 NVMe GEN4 Micron,MTFDKBA480TFR-1BC1ZABYY
Disk Controller:	onboard SCU controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual Intel I350 Gigabit Ethernet controller, AOC-AG-i2M
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Power Saver (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 10.0.20348 Build 20348
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
JVM Command-line Options:	-server-Xms1995m -Xmx1995m -Xmn1825m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE [0,1] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x3000, 0xc0000, 0x30000, 0xc00000, 0x300000, 0xc000000]
JVM Instances:	56
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	1.1
Management Firmware Version:	01.00.31
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5028171

None

SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was bound to two logical processors
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

The system ROM used for this result contains intel microcode version 00000000B001002B for the Intel Xeon Platinum 8480+ processor.

Software
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
JVM Vendor:	Oracle Corporation
JVM Version:	Jave(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation.
Model:	WT310
Serial Number:	C3RF27027E
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	NML (National Measurement Laboratory)
Accredited by:	Omnio Calibration Lab. Co., Ltd.
Calibration Label:	OCL-230203F01008
Date of Calibration:	03-Feb-2023
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	SUT Power Supply

Power Analyzer pwr2
Hardware Vendor:	Yokogawa Meters and Instruments Corporation.
Model:	WT310E
Serial Number:	C3TH01001E
Connectivity:	Serial
Input Connection:	Default
Metrology Institute:	NML (National Measurement Laboratory)
Accredited by:	Omnio Calibration Lab. Co., Ltd.
Calibration Label:	OCL-230203F00802
Date of Calibration:	10-Feb-2023
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	SUT Power Supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	10 mm in front of SUT main air intake

None

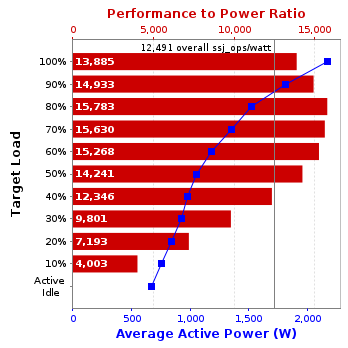

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	2,169	25.9
90%	1,811	26.0
80%	1,525	25.6
70%	1,351	25.3
60%	1,179	25.4
50%	1,058	25.1
40%	979	25.0
30%	925	25.1
20%	839	25.1
10%	755	25.1
Active Idle	669	25.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	25.0	10

See the Power/Temperature Details Report for additional details.

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
