SPECpower_ssj2008

Dell Inc. PowerEdge R7615 (AMD EPYC 9754, 2.25 GHz)			SPECpower_ssj2008 = 29,782 overall ssj_ops/watt
Test Sponsor:	Dell Inc.	SPEC License #:	6573	Test Method:	Single Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Jul 13, 2023
Hardware Availability:	Jul-2023	Software Availability:	Feb-2023	Publication:	Aug 2, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Dell Inc.
Model:	PowerEdge R7615 (AMD EPYC 9754, 2.25 GHz)
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25 GHz
CPU Characteristics:	128 core, 2.25 GHz, 256 MB L3 Cache, Max Boost Clock up to 3.10 GHz
CPU Frequency (MHz):	2250
CPU(s) Enabled:	128 cores, 1 chip, 128 cores/chip
Hardware Threads:	256 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16 GB
Memory Details:	16GB 1Rx8 PC5-4800-R running at 4000. Slots A1-12 populated.
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	1100W Titanium Efficiency (DPN FR0KX)
Disk Drive:	1 x 960GB NVMe SSD DPN [400-BMTJ]
Disk Controller:	n/a
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Broadcom 5720
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced power plan in OS (see SUT notes)
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
OS Version:	Version 1809 (Build 17763.4010)
Filesystem:	NTFS
JVM Vendor:	Oracle
JVM Version:	Open JDK 64-Bit Server VM Microsoft-30338(build 17.0.2+8-LTS, mixed mode, sharing)
JVM Command-line Options:	-server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	start /NODE[0-15] /AFFINITY [0xF - 0xF000]
JVM Instances:	64
JVM Initial Heap (MB):	1500
JVM Maximum Heap (MB):	1500
JVM Address Bits:	64
Boot Firmware Version:	1.4.1
Management Firmware Version:	6.10.30.00 A00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	n/a

Minimum Power (Performance per Watt Optimized)

Each JVM instance was bound to 4 logical processors
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
SPECpower_ssj.props input.load_level.number_warehouses set to 256 since processor has 128 cores
Power Plan Minimum processor state set to 0%
Power Plan Maximum processor state set to 100%
Using Windows PowerShell, set the following powercfg properties:

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version GenoaPI-SP5 1.0.0.7:Microcode 0E02A00A00000000.

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise Edition Service Pack 1
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.8.0_121
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91J936840
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TesCom
Calibration Label:	T76419
Date of Calibration:	25-Oct-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

None

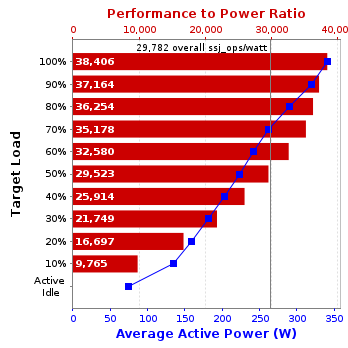

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	341	20.7
90%	319	20.7
80%	290	20.7
70%	262	20.7
60%	242	20.6
50%	223	20.6
40%	203	20.6
30%	181	20.6
20%	158	20.6
10%	134	20.6
Active Idle	74.0	20.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	20.6	255

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
