SPECpower_ssj2008

Supermicro Server AS-2125HS-TNR			SPECpower_ssj2008 = 29,572 overall ssj_ops/watt
Test Sponsor:	Supermicro	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro	Test Location:	Zhonghe Dist, New Taipei City, Taiwan (R.O.C.)	Test Date:	Jun 11, 2023
Hardware Availability:	Jan-2023	Software Availability:	May-2023	Publication:	Jul 6, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Supermicro
Model:	Server AS-2125HS-TNR
Form Factor:	2U
CPU Name:	AMD EPYC 9754,2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	2 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	768
# and size of DIMM:	24 x 32 GB
Memory Details:	32GB 2Rx8 PC5-4800B-R; slots A1,B1,C1,D1,E1,F1,G1,H1,I1,J1,K1,L1 populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	PWS-1K63A-1R, 1600W, Titanium
Disk Drive:	1x480GB M.2 NVMe GEN4 Micron,MTFDKBA480TFR-1BC1ZABYY
Disk Controller:	onboard SCU controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual Intel I350 Gigabit Ethernet controller, AOC-AG-i2M
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 10.0.20348 Build 20348
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options:	-server -Xms2048m -Xmx2048m -Xmn1900m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	1.4
Management Firmware Version:	01.00.17
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

None

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was bound to 4 logical processors
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

YES: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0802A00A00000000 for the AMD EPYC 9754 processor

Software
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
JVM Vendor:	Oracle Corporation
JVM Version:	Jave(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation.
Model:	WT310
Serial Number:	C3RF27027E
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	NML (National Measurement Laboratory)
Accredited by:	Omnio Calibration Lab. Co., Ltd.
Calibration Label:	OCL-230203F01008
Date of Calibration:	03-Feb-2023
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	SUT Power Supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	10 mm in front of SUT main air intake

None

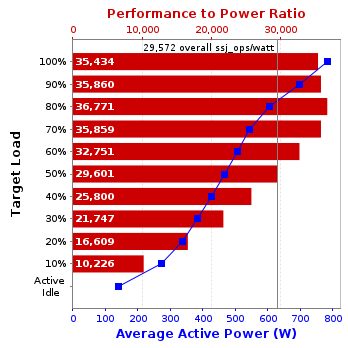

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	783	25.9
90%	699	25.9
80%	606	25.8
70%	544	25.8
60%	507	25.7
50%	467	25.6
40%	426	25.6
30%	384	25.5
20%	336	25.4
10%	273	25.4
Active Idle	141	25.3

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	25.3	10

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
