Lenovo Global Technology Think System SR635 V3 SPECpower_ssj2008 = 31,604 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 19, 2023
Hardware Availability: Aug-2023 Software Availability: May-2023 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 328 22.1
Calibration 2 330 22.2
Calibration 3 330 22.4
100% 329 22.5
90% 300 22.3
80% 252 22.4
70% 234 22.3
60% 218 22.1
50% 198 21.9
40% 181 21.8
30% 160 21.6
20% 140 21.5
10% 118 21.4
Active Idle 59.9 21.0

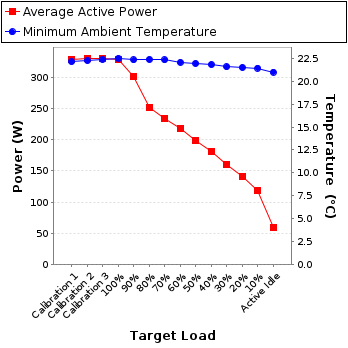

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202210116758A-0004
Date of Calibration: 19-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 1.51 5.0 0.989 328 0.4%
Calibration 2 220 300.0 1.52 5.0 0.989 330 0.4%
Calibration 3 220 300.0 1.52 5.0 0.988 330 0.4%
100% 220 300.0 1.51 5.0 0.989 329 0.4%
90% 220 300.0 1.38 5.0 0.988 300 0.4%
80% 220 300.0 1.16 5.0 0.985 252 0.4%
70% 220 300.0 1.08 5.0 0.983 234 0.5%
60% 220 300.0 1.01 5.0 0.981 218 0.5%
50% 220 300.0 0.923 5.0 0.977 198 0.5%
40% 220 300.0 0.846 5.0 0.973 181 0.6%
30% 220 300.0 0.743 5.0 0.979 160 0.6%
20% 220 300.0 0.657 2.0 0.972 140 0.4%
10% 220 300.0 0.560 2.0 0.959 118 0.4%
Active Idle 220 300.0 0.318 2.0 0.857 59.9 0.7%
Power details for pwr1
