Hewlett Packard Enterprise ProLiant DL380 Gen11 SPECpower_ssj2008 = 9,593 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 6, 2023
Hardware Availability: Jan-2023 Software Availability: Apr-2023 Publication: Jun 21, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.4% 7,825,517 584 13,394
90% 89.9% 7,152,485 547 13,082
80% 79.9% 6,357,160 504 12,625
70% 70.0% 5,565,934 469 11,874
60% 59.9% 4,764,597 436 10,924
50% 50.0% 3,973,405 409 9,726
40% 40.0% 3,183,169 382 8,325
30% 30.1% 2,390,304 356 6,708
20% 19.9% 1,586,096 330 4,811
10% 10.0% 798,500 303 2,632
Active Idle 0 225 0
∑ssj_ops / ∑power = 9,593

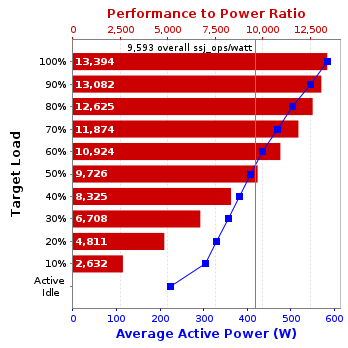

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL380 Gen11
Form Factor: 2U
CPU Name: Intel Xeon Gold 6438Y+ Processor
CPU Characteristics: 32 core, 2.00 GHz, 60 MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: HPE 32GB Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit
Power Supply Quantity and Rating (W): 2 x 800
Power Supply Details: HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Disk Drive: 2 x HPE 480GB SATA 6G SSD; 4 x HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD
Disk Controller: 1 x HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter; 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter
NICs Enabled in Firmware / OS / Connected: 6/6/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.19+9-LTS-224, mixed mode)
JVM Command-line Options: -server -Xmn1500m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U54 v1.20 (11/24/2022)
Management Firmware Version: 1.10 pass 70 Nov 17 2022
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
  • Benchmark started via ssh
  • SPECpower_ssj.props input.load_level.number_warehouses set to 128 to detect the full number of available processors on the SUT
  • OS tunes:
    • Controller System
    Hardware
    Hardware Vendor: Hewlett Packard Enterprise
    Model: ProLiant DL360 Gen9
    CPU Description: 2 x Intel Xeon E5-2660 v3
    Memory amount (GB): 128
    Software
    Operating System (OS): Windows Server 2019
    JVM Vendor: Oracle Corporation
    JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
    CCS Version: 1.2.6
    Measurement Devices
    Power Analyzer pwr1
    Hardware Vendor: Yokogawa
    Model: WT310E
    Serial Number: C2SF14001V
    Connectivity: GPIB vi NI GPIB-USB-HS
    Input Connection: Default
    Metrology Institute: NIST
    Accredited by: TRANSCAT
    Calibration Label: 5-G38EE-20-1
    Date of Calibration: 15-Dec-2022
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    PTDaemon Version: 1.10.0-82175bac-20220817
    Setup Description: SUT Power Supplies 1 and 2
    Temperature Sensor temp1
    Hardware Vendor: Digi International Inc.
    Model: Watchport/H
    Driver Version: 5.70.105.0
    Connectivity: USB
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    Setup Description: 5 mm in front of SUT main intake
    Notes
    None
    Aggregate Electrical and Environmental Data
    Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
    100% 584 24.2
    90% 547 24.3
    80% 504 24.8
    70% 469 23.7
    60% 436 23.7
    50% 409 24.2
    40% 382 24.6
    30% 356 24.9
    20% 330 25.1
    10% 303 24.3
    Active Idle 225 23.8
    Line Standard Minimum Temperature (°C) Elevation (m)
    208V / 60 Hz / 1 phase / 2 wires 23.7 132
    See the Power/Temperature Details Report for additional details.
    Aggregate Performance Data
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     6,540,023
    Calibration 2     7,877,018
    Calibration 3     8,029,364
    ssj_ops@calibrated=7,953,191
    100% 98.4% 7,953,191 7,825,517
    90% 89.9% 7,157,872 7,152,485
    80% 79.9% 6,362,553 6,357,160
    70% 70.0% 5,567,234 5,565,934
    60% 59.9% 4,771,915 4,764,597
    50% 50.0% 3,976,596 3,973,405
    40% 40.0% 3,181,277 3,183,169
    30% 30.1% 2,385,957 2,390,304
    20% 19.9% 1,590,638 1,586,096
    10% 10.0% 795,319 798,500
    Active Idle   0 0

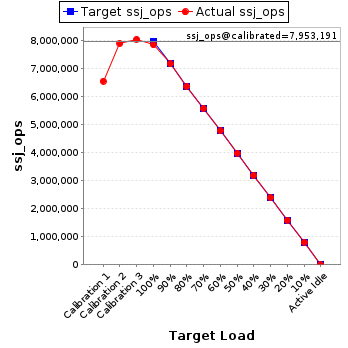

    Graph of results
    See the Host Performance Report for additional details.
