SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL365 Gen11 | SPECpower_ssj2008 = 26,371 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | May 23, 2023 |
| Hardware Availability: | Jul-2023 | Software Availability: | Jul-2023 | Publication: | Jun 13, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

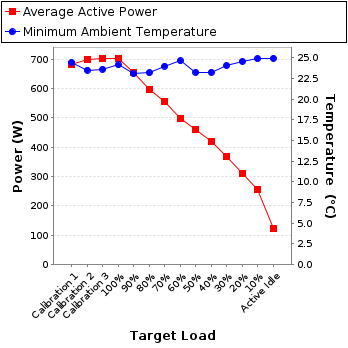

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 683 | 24.4 |
| Calibration 2 | 699 | 23.5 |
| Calibration 3 | 703 | 23.6 |
| 100% | 701 | 24.1 |
| 90% | 655 | 23.1 |
| 80% | 597 | 23.2 |
| 70% | 555 | 24.0 |
| 60% | 499 | 24.6 |
| 50% | 460 | 23.2 |
| 40% | 418 | 23.2 |
| 30% | 368 | 24.1 |
| 20% | 311 | 24.6 |
| 10% | 254 | 24.9 |
| Active Idle | 123 | 24.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | C2M22001V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-G38EE-40-1 |
| Date of Calibration: | 15-Dec-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

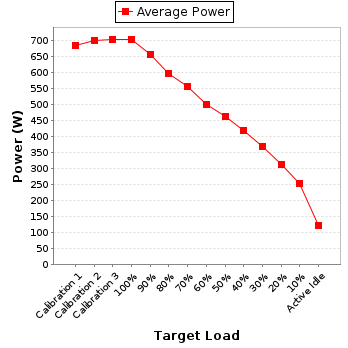

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 3.32 | 5.0 | 0.979 | 683 | 0.4% |
| Calibration 2 | 211 | 300.0 | 3.39 | 5.0 | 0.980 | 699 | 0.4% |
| Calibration 3 | 210 | 300.0 | 3.41 | 5.0 | 0.980 | 703 | 0.4% |
| 100% | 210 | 300.0 | 3.40 | 5.0 | 0.980 | 701 | 0.4% |
| 90% | 210 | 300.0 | 3.19 | 5.0 | 0.977 | 655 | 0.4% |
| 80% | 210 | 300.0 | 2.91 | 5.0 | 0.975 | 597 | 0.4% |
| 70% | 210 | 300.0 | 2.72 | 5.0 | 0.971 | 555 | 0.4% |
| 60% | 210 | 300.0 | 2.46 | 5.0 | 0.965 | 499 | 0.4% |
| 50% | 210 | 300.0 | 2.28 | 5.0 | 0.957 | 460 | 0.5% |
| 40% | 211 | 300.0 | 2.10 | 5.0 | 0.945 | 418 | 0.5% |
| 30% | 210 | 300.0 | 1.88 | 5.0 | 0.930 | 368 | 0.6% |
| 20% | 210 | 300.0 | 1.62 | 5.0 | 0.916 | 311 | 0.6% |
| 10% | 210 | 300.0 | 1.36 | 2.0 | 0.892 | 254 | 0.4% |
| Active Idle | 210 | 300.0 | 0.836 | 2.0 | 0.701 | 123 | 0.7% |
