FOXCONN (FII) Mt. Collins SPECpower_ssj2008 = 12,195 overall ssj_ops/watt
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 22, 2023
Hardware Availability: Feb-2023 Software Availability: Jan-2022 Publication: Jun 9, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 281 22.9
Calibration 2 282 22.9
Calibration 3 282 22.9
100% 282 22.9
90% 268 23.0
80% 255 23.0
70% 242 23.0
60% 230 22.9
50% 217 23.0
40% 204 23.0
30% 190 23.0
20% 177 23.0
10% 164 23.0
Active Idle 143 23.1

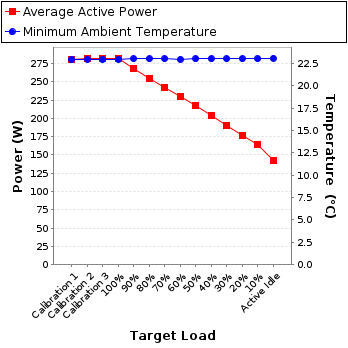

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: TESCOM
Accredited by: 12-May-2023
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 1.38 2.0 0.965 281 0.3%
Calibration 2 211 300.0 1.38 2.0 0.966 282 0.3%
Calibration 3 211 300.0 1.38 2.0 0.966 282 0.3%
100% 211 300.0 1.38 2.0 0.966 282 0.3%
90% 211 300.0 1.32 2.0 0.963 268 0.3%
80% 211 300.0 1.26 2.0 0.961 255 0.3%
70% 211 300.0 1.20 2.0 0.958 242 0.3%
60% 211 300.0 1.14 2.0 0.956 230 0.3%
50% 211 300.0 1.08 2.0 0.952 217 0.3%
40% 212 300.0 1.02 1.0 0.949 204 0.2%
30% 212 300.0 0.952 1.0 0.945 190 0.2%
20% 212 300.0 0.889 1.0 0.940 177 0.3%
10% 211 300.0 0.828 1.0 0.935 164 0.3%
Active Idle 211 300.0 0.730 1.0 0.925 143 0.3%

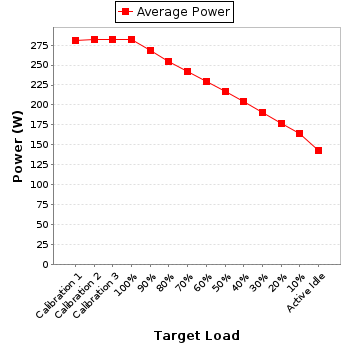

Power details for pwr1
