SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX8770 M7 | SPECpower_ssj2008 = 11,898 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Apr 25, 2023 |
| Hardware Availability: | May-2023 | Software Availability: | Aug-2022 | Publication: | Jun 7, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

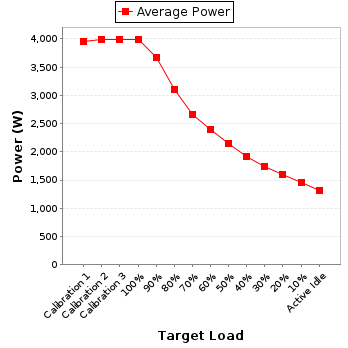

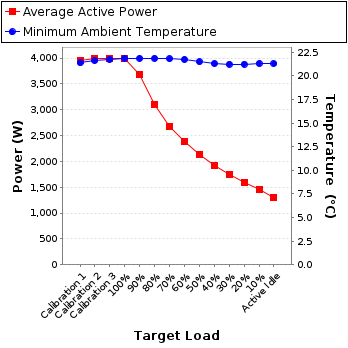

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 3,949 | 21.4 |
| Calibration 2 | 3,994 | 21.6 |
| Calibration 3 | 3,996 | 21.8 |
| 100% | 3,995 | 21.9 |
| 90% | 3,680 | 21.9 |
| 80% | 3,109 | 21.9 |
| 70% | 2,666 | 21.8 |
| 60% | 2,391 | 21.8 |
| 50% | 2,142 | 21.5 |
| 40% | 1,917 | 21.3 |
| 30% | 1,748 | 21.2 |
| 20% | 1,596 | 21.2 |
| 10% | 1,449 | 21.3 |
| Active Idle | 1,308 | 21.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | CY226004830 |
| Date of Calibration: | 28-Jun-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | 300.0 | 19.6 | 20.0 | 0.996 | 3,949 | 0.2% |
| Calibration 2 | 203 | 300.0 | 19.8 | 20.0 | 0.996 | 3,994 | 0.2% |
| Calibration 3 | 203 | 300.0 | 19.8 | 20.0 | 0.996 | 3,996 | 0.2% |
| 100% | 203 | 300.0 | 19.8 | 20.0 | 0.996 | 3,995 | 0.2% |
| 90% | 203 | 300.0 | 18.2 | 20.0 | 0.996 | 3,680 | 0.2% |
| 80% | 203 | 300.0 | 15.4 | 20.0 | 0.996 | 3,109 | 0.2% |
| 70% | 204 | 300.0 | 13.1 | 20.0 | 0.996 | 2,666 | 0.2% |
| 60% | 203 | 300.0 | 11.8 | 20.0 | 0.996 | 2,391 | 0.2% |
| 50% | 204 | 300.0 | 10.6 | 20.0 | 0.995 | 2,142 | 0.3% |
| 40% | 204 | 300.0 | 9.46 | 20.0 | 0.994 | 1,917 | 0.3% |
| 30% | 204 | 300.0 | 8.63 | 20.0 | 0.993 | 1,748 | 0.3% |
| 20% | 204 | 300.0 | 7.89 | 20.0 | 0.992 | 1,596 | 0.3% |
| 10% | 204 | 300.0 | 7.17 | 10.0 | 0.990 | 1,449 | 0.2% |
| Active Idle | 204 | 300.0 | 6.48 | 10.0 | 0.988 | 1,308 | 0.2% |
