SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge XR8620T (Intel Xeon Gold 6421N, 1.80 GHz) | SPECpower_ssj2008 = 10,045 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Multi Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Apr 3, 2023 |
| Hardware Availability: | May-2023 | Software Availability: | Aug-2022 | Publication: | May 11, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

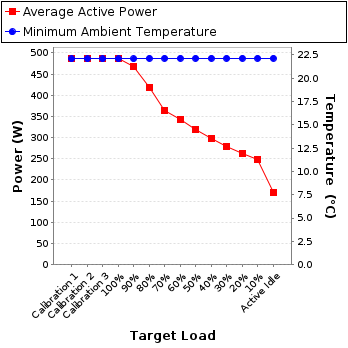

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 487 | 22.1 |
| Calibration 2 | 487 | 22.1 |
| Calibration 3 | 487 | 22.1 |
| 100% | 487 | 22.1 |
| 90% | 467 | 22.1 |
| 80% | 417 | 22.1 |
| 70% | 365 | 22.1 |
| 60% | 342 | 22.1 |
| 50% | 319 | 22.1 |
| 40% | 298 | 22.1 |
| 30% | 279 | 22.1 |
| 20% | 261 | 22.1 |
| 10% | 247 | 22.1 |
| Active Idle | 170 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91JB09482 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T97126 |
| Date of Calibration: | 25-Oct-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 6.5.1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

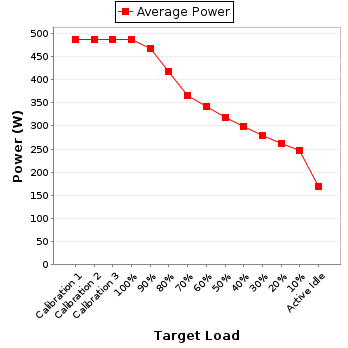

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 202 | 300.0 | 2.48 | 5.0 | 0.972 | 487 | 0.5% |
| Calibration 2 | 202 | 300.0 | 2.48 | 5.0 | 0.972 | 487 | 0.5% |
| Calibration 3 | 202 | 300.0 | 2.48 | 5.0 | 0.972 | 487 | 0.5% |
| 100% | 202 | 300.0 | 2.48 | 5.0 | 0.972 | 487 | 0.5% |
| 90% | 202 | 300.0 | 2.38 | 5.0 | 0.971 | 467 | 0.5% |
| 80% | 202 | 300.0 | 2.14 | 2.0 | 0.965 | 417 | 0.4% |
| 70% | 202 | 300.0 | 1.89 | 2.0 | 0.958 | 365 | 0.4% |
| 60% | 202 | 300.0 | 1.77 | 2.0 | 0.954 | 342 | 0.4% |
| 50% | 202 | 300.0 | 1.66 | 2.0 | 0.949 | 319 | 0.4% |
| 40% | 202 | 300.0 | 1.56 | 2.0 | 0.944 | 298 | 0.4% |
| 30% | 202 | 300.0 | 1.47 | 2.0 | 0.940 | 279 | 0.4% |
| 20% | 202 | 300.0 | 1.38 | 2.0 | 0.934 | 261 | 0.5% |
| 10% | 202 | 300.0 | 1.32 | 2.0 | 0.928 | 247 | 0.5% |
| Active Idle | 202 | 300.0 | 0.951 | 1.0 | 0.882 | 170 | 0.4% |
