SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY CX2560 M7			SPECpower_ssj2008 = 11,580 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Multi Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Apr 12, 2023
Hardware Availability:	May-2023	Software Availability:	Aug-2022	Publication:	Apr 27, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
4	8	256	512	1,024	4	256

Shared Hardware
Enclosure:	PRIMERGY CX400 M6
Form Factor:	2U
Power Supply Quantity and Rating (W):	2 x 2600
Power Supply Details:	2 x S26113-E649-V90-1
Network Switch:	Fujitsu SR-X324T2
Network Switch Details:	24-Port Gigabit Switch
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	Gigabit switch was not measured for power.

Hardware per Node
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY CX2560 M7
Form Factor:	Blade
CPU Name:	Intel Xeon Gold 6428N
CPU Characteristics:	32-Core, 1.8GHz, 60MB L3 Cache
CPU Frequency (MHz):	1800
CPU(s) Enabled:	64 cores, 2 chips, 32 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	60 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16 GB 1Rx8 PC5-4800B; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Power saver
Operating System (OS):	Windows Server 2022 Standard
OS Version:	Version 21H2, OS build 20348.169
Filesystem:	ntfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1500m -Xms1625m -Xmx1625m -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:-UseAdaptiveSizePolicy -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:-ThreadLocalHandshakes -XX:UseAVX=0
JVM Affinity:	start /NODE [0,1,2,3] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000
JVM Instances:	64
JVM Initial Heap (MB):	1625
JVM Maximum Heap (MB):	1625
JVM Address Bits:	64
Boot Firmware Version:	R1.10.0
Management Firmware Version:	2.21S
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

None

"Turn off hard disk after = 1 Minute"
"PCI Express Link State Power Management = Maximum power savings"
"Minimum processor state = 0%"
"Maximum processor state = 100%"
"Turn off display after = 1 Minute"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFBOOSTMODE 4"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFINCTHRESHOLD 95"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFDECTHRESHOLD 93"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFDECTIME 1"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR IDLESCALING 1"
"POWERCFG /S SCHEME_CURRENT"
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains Intel microcode version 000000009001002B for the Intel Xeon Gold 6428N processor.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.3 (build 10+46, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	PW3336
Serial Number:	170213562
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	AIST (National Institute of Advanced Science and Technology)
Accredited by:	Kyosai Technos Co.,Ltd.
Calibration Label:	CY226004830
Date of Calibration:	28-Jun-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

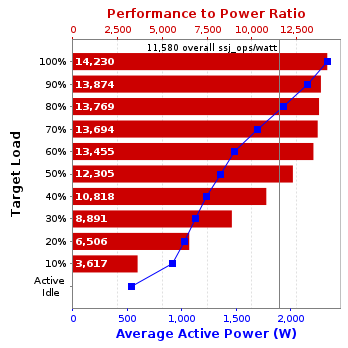

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	2,336	20.6
90%	2,157	20.7
80%	1,934	20.8
70%	1,700	20.8
60%	1,484	20.9
50%	1,351	20.9
40%	1,229	21.0
30%	1,123	21.1
20%	1,024	21.1
10%	919	21.1
Active Idle	541	21.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	20.6	11

See the Power/Temperature Details Report for additional details.

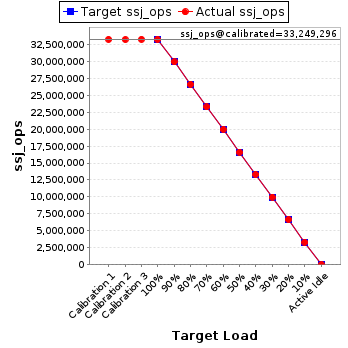

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
