Hewlett Packard Enterprise ProLiant DL560 Gen11 SPECpower_ssj2008 = 12,674 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 5, 2023
Hardware Availability: Jun-2023 Software Availability: Jun-2023 Publication: May 3, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 22,151,384 1,280 17,307
90% 90.0% 20,004,653 1,209 16,549
80% 80.0% 17,779,204 1,113 15,979
70% 70.0% 15,565,422 1,021 15,242
60% 60.0% 13,338,405 939 14,198
50% 50.1% 11,130,013 867 12,833
40% 40.1% 8,904,650 799 11,145
30% 30.0% 6,673,482 733 9,105
20% 20.0% 4,441,028 666 6,664
10% 10.0% 2,228,781 600 3,715
Active Idle 0 415 0
∑ssj_ops / ∑power = 12,674

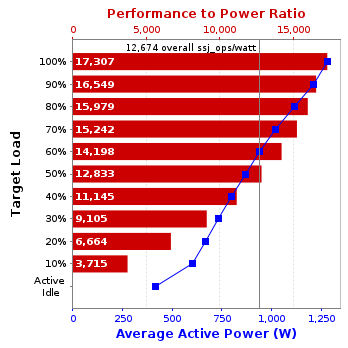

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL560 Gen11
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H 1.90 GHz
CPU Characteristics: 60-Core, 1.90 GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 240 cores, 4 chips, 60 cores/chip
Hardware Threads: 480 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 32 x 16384 MB
Memory Details: 16GB 1Rx8 PC5-4800; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: HPE 2200W Flex Slot Titanium Hot Plug Power Supply Kit (P44712-B21)
Disk Drive: 1 x HPE 480GB SATA 6G M.2 5300 SSD (P19888-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet Network Adapter I350-T4 for OCP 3.0
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2 (Build 20348.707)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment 18.9 (build 11.0.17+10-LTS-269, mixed mode), version 11.0.16.1
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0-15] /AFFINITY [0x3, 0xC-0xC000000, 0x30000000]
JVM Instances: 240
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U59 v1.32 (03/09/2023)
Management Firmware Version: 1.30 Feb 28 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for Windows x64
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 G9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019 - Version 1809
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_251-b08 (build 25.251-b08, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QM22005V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GU3Q4-60-1
Date of Calibration: 13-Jun-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,280 28.6
90% 1,209 28.7
80% 1,113 28.8
70% 1,021 28.9
60% 939 29.2
50% 867 29.2
40% 799 29.3
30% 733 29.6
20% 666 29.6
10% 600 29.6
Active Idle 415 29.7
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 28.6 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,132,894
Calibration 2     22,216,961
Calibration 3     22,240,130
ssj_ops@calibrated=22,228,546
100% 99.7% 22,228,546 22,151,384
90% 90.0% 20,005,691 20,004,653
80% 80.0% 17,782,836 17,779,204
70% 70.0% 15,559,982 15,565,422
60% 60.0% 13,337,127 13,338,405
50% 50.1% 11,114,273 11,130,013
40% 40.1% 8,891,418 8,904,650
30% 30.0% 6,668,564 6,673,482
20% 20.0% 4,445,709 4,441,028
10% 10.0% 2,222,855 2,228,781
Active Idle   0 0

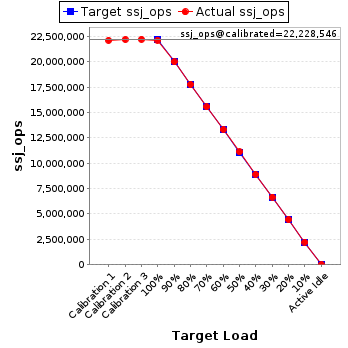

Graph of results
See the Host Performance Report for additional details.
