SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant ML110 Gen11 | SPECpower_ssj2008 = 9,765 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Apr 4, 2023 |
| Hardware Availability: | Jun-2023 | Software Availability: | Jun-2023 | Publication: | May 3, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

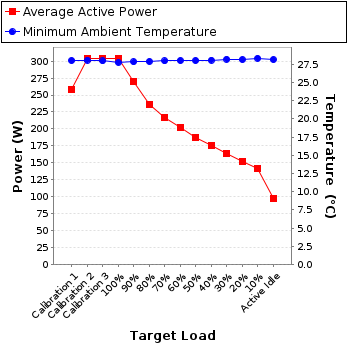

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 258 | 28.0 |
| Calibration 2 | 304 | 28.1 |
| Calibration 3 | 303 | 27.9 |
| 100% | 304 | 27.8 |
| 90% | 271 | 27.8 |
| 80% | 237 | 27.9 |
| 70% | 217 | 27.9 |
| 60% | 202 | 28.0 |
| 50% | 188 | 28.0 |
| 40% | 176 | 28.1 |
| 30% | 165 | 28.2 |
| 20% | 153 | 28.1 |
| 10% | 141 | 28.3 |
| Active Idle | 98.2 | 28.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GR9ET-100-1 |
| Date of Calibration: | 17-May-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

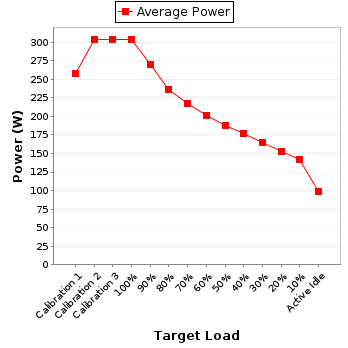

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 1.32 | 2.0 | 0.952 | 258 | 0.5% |
| Calibration 2 | 207 | 300.0 | 1.52 | 2.0 | 0.965 | 304 | 0.4% |
| Calibration 3 | 207 | 300.0 | 1.52 | 2.0 | 0.966 | 303 | 0.4% |
| 100% | 207 | 300.0 | 1.52 | 2.0 | 0.965 | 304 | 0.4% |
| 90% | 208 | 300.0 | 1.36 | 2.0 | 0.958 | 271 | 0.4% |
| 80% | 208 | 300.0 | 1.20 | 2.0 | 0.951 | 237 | 0.5% |
| 70% | 206 | 300.0 | 1.12 | 2.0 | 0.940 | 217 | 0.5% |
| 60% | 207 | 300.0 | 1.05 | 2.0 | 0.932 | 202 | 0.5% |
| 50% | 207 | 300.0 | 0.982 | 2.0 | 0.924 | 188 | 0.6% |
| 40% | 207 | 300.0 | 0.929 | 2.0 | 0.916 | 176 | 0.6% |
| 30% | 208 | 300.0 | 0.876 | 2.0 | 0.905 | 165 | 0.6% |
| 20% | 208 | 300.0 | 0.822 | 1.0 | 0.894 | 153 | 0.4% |
| 10% | 208 | 300.0 | 0.777 | 1.0 | 0.877 | 141 | 0.5% |
| Active Idle | 208 | 300.0 | 0.599 | 1.0 | 0.791 | 98.2 | 0.6% |
