Dell Inc. PowerEdge XR4510c (Intel Xeon D-2776NT, 2.10 GHz) ssj_ops@100% = 5,879,025
ssj_ops@100% per Host = 1,469,756
ssj_ops@100% per JVM = 1,469,756
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Feb 18, 2023
Hardware Availability: Nov-2022 Software Availability: Nov-2022 Publication: Mar 29, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,908,330
Calibration 2     5,891,181
Calibration 3     5,889,273
ssj_ops@calibrated=5,890,227
100% 99.8% 5,890,227 5,879,025
90% 90.1% 5,301,204 5,304,913
80% 80.1% 4,712,182 4,717,445
70% 69.9% 4,123,159 4,120,029
60% 60.1% 3,534,136 3,537,794
50% 50.0% 2,945,113 2,943,902
40% 40.1% 2,356,091 2,361,110
30% 30.0% 1,767,068 1,766,567
20% 20.0% 1,178,045 1,175,995
10% 10.1% 589,023 593,624
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 4 64 128 256 4 4
System Under Test
Shared Hardware
Shared Hardware
Enclosure: XR4000
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1800
Power Supply Details: 1800W Platinum, Dell p/n 5222N
Network Switch: None
Network Switch Details: None
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: PowerEdge XR4510c
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge XR4510c (Intel Xeon D-2776NT, 2.10 GHz)
Form Factor: 2U
CPU Name: Intel Xeon-D 2776NT
CPU Characteristics: 16-Core, 2.10GHz, 25MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 4 x 16 GB
Memory Details: 16GB 1Rx8 PC4-3200AA-ED2. Slots A1-4,populated.
Power Supply Quantity and Rating (W): 1 x 1800
Power Supply Details: 1800W Platinum, Dell p/n 5222N
Disk Drive: 1 x 480 GB NVMe M.2 stick, Dell p/n 08M01
Disk Controller: BOSS controller card, Dell p/n M88HH
# and type of Network Interface Cards (NICs) Installed: Onboard 1 x Quad Port 10G Intel E800
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver power plan enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Standard 21H2
OS Version: 20348.1487
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode)
JVM Command-line Options: -server -Xmn26g -Xms29g -Xmx29g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=32 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE 0
JVM Instances: 1
JVM Initial Heap (MB): 29696
JVM Maximum Heap (MB): 29696
JVM Address Bits: 64
Boot Firmware Version: 1.0.1
Management Firmware Version: 6.00.19.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
iDRAC Thermal set to Min Power and Fan Offset to 14% PWM
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
node1 1,467,845
node2 1,480,206
node3 1,457,479
node4 1,473,495
ssj_ops@100% 5,879,025
ssj_ops@100% per Host 1,469,756
ssj_ops@100% per JVM 1,469,756

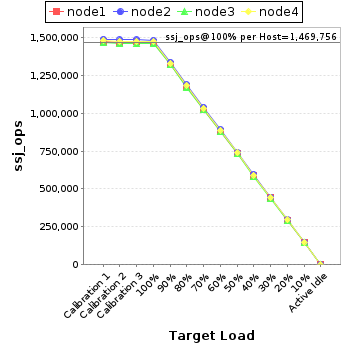

Graph of per-host results

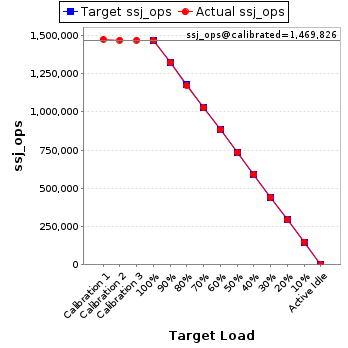

Host 'node1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,475,116
Calibration 2     1,469,636
Calibration 3     1,470,015
ssj_ops@calibrated=1,469,826
100% 99.9% 1,469,826 1,467,845
90% 90.0% 1,322,843 1,322,638
80% 79.9% 1,175,861 1,174,021
70% 69.8% 1,028,878 1,025,614
60% 60.0% 881,895 881,952
50% 49.8% 734,913 732,495
40% 40.2% 587,930 591,182
30% 30.1% 440,948 442,064
20% 19.9% 293,965 293,083
10% 10.1% 146,983 148,118
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,488,015
Calibration 2     1,483,067
Calibration 3     1,483,095
ssj_ops@calibrated=1,483,081
100% 99.8% 1,483,081 1,480,206
90% 90.1% 1,334,773 1,336,148
80% 80.1% 1,186,465 1,187,546
70% 70.1% 1,038,157 1,039,110
60% 60.0% 889,849 890,506
50% 50.0% 741,541 740,935
40% 40.1% 593,232 595,118
30% 30.1% 444,924 445,836
20% 19.9% 296,616 295,775
10% 10.0% 148,308 148,827
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,464,303
Calibration 2     1,462,651
Calibration 3     1,460,710
ssj_ops@calibrated=1,461,681
100% 99.7% 1,461,681 1,457,479
90% 90.2% 1,315,512 1,318,369
80% 80.1% 1,169,344 1,171,138
70% 69.9% 1,023,176 1,022,292
60% 60.0% 877,008 876,911
50% 50.0% 730,840 731,519
40% 39.9% 584,672 583,863
30% 29.9% 438,504 437,172
20% 20.0% 292,336 292,173
10% 10.1% 146,168 147,501
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

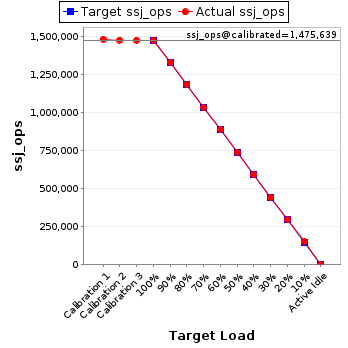

Host 'node4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,480,895
Calibration 2     1,475,827
Calibration 3     1,475,452
ssj_ops@calibrated=1,475,639
100% 99.9% 1,475,639 1,473,495
90% 90.0% 1,328,076 1,327,758
80% 80.3% 1,180,512 1,184,740
70% 70.0% 1,032,948 1,033,014
60% 60.2% 885,384 888,424
50% 50.1% 737,820 738,952
40% 40.0% 590,256 590,946
30% 29.9% 442,692 441,495
20% 20.0% 295,128 294,963
10% 10.1% 147,564 149,178
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
