xFusion Digital Technologies Co., Ltd FusionServer 5288 V7 SPECpower_ssj2008 = 16,285 overall ssj_ops/watt
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Dec 7, 2022
Hardware Availability: Jan-2023 Software Availability: Aug-2022 Publication: Jan 10, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 831 24.9
Calibration 2 834 24.9
Calibration 3 835 25.2
100% 835 24.4
90% 748 24.6
80% 570 24.6
70% 428 24.6
60% 390 24.5
50% 357 24.6
40% 329 24.9
30% 294 24.9
20% 268 25.0
10% 230 25.1
Active Idle 147 25.1

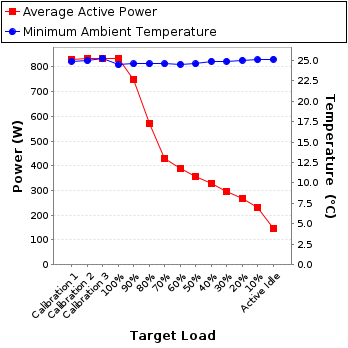

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Inc.
Model: WT210
Serial Number: 91M838229
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 1GA22006887-0003
Date of Calibration: 18-Jul-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: PCSensor.com
Model: USB9097 + DS18B20
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 3.73 5.0 0.992 831 0.4%
Calibration 2 225 300.0 3.74 5.0 0.992 834 0.4%
Calibration 3 225 300.0 3.75 5.0 0.992 835 0.4%
100% 225 300.0 3.75 5.0 0.992 835 0.4%
90% 226 300.0 3.35 5.0 0.990 748 0.4%
80% 228 300.0 2.57 5.0 0.985 570 0.5%
70% 228 300.0 1.91 2.0 0.981 428 0.3%
60% 228 300.0 1.75 2.0 0.977 390 0.3%
50% 223 300.0 1.66 2.0 0.962 357 0.4%
40% 224 300.0 1.53 2.0 0.958 329 0.4%
30% 223 300.0 1.39 2.0 0.951 294 0.4%
20% 223 300.0 1.27 2.0 0.945 268 0.4%
10% 225 300.0 1.08 2.0 0.942 230 0.5%
Active Idle 226 300.0 0.781 2.0 0.836 147 0.7%
Power details for pwr1
