SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY RX2540 M7			SPECpower_ssj2008 = 13,836 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Dec 6, 2022
Hardware Availability:	Mar-2023	Software Availability:	Aug-2022	Publication:	Jan 11, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY RX2540 M7
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8480+
CPU Characteristics:	56-Core, 2.0GHz, 105MB L3 Cache
CPU Frequency (MHz):	2000
CPU(s) Enabled:	112 cores, 2 chips, 56 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	105 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	512
# and size of DIMM:	16 x 32768 MB
Memory Details:	16 x 32 GB 2Rx8 PC5-4800B; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W):	2 x 900
Power Supply Details:	S26113-E629-V50-1
Disk Drive:	1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power saver
Operating System (OS):	Windows Server 2022 Standard
OS Version:	Version 21H2, OS build 20348.169
Filesystem:	ntfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1500m -Xms1625m -Xmx1625m -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:-UseAdaptiveSizePolicy -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:-ThreadLocalHandshakes -XX:UseAVX=0
JVM Affinity:	start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000]
JVM Instances:	112
JVM Initial Heap (MB):	1500
JVM Maximum Heap (MB):	1625
JVM Address Bits:	64
Boot Firmware Version:	R1.10.0
Management Firmware Version:	v3.06
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

None

"Turn off hard disk after = 1 Minute"
"PCI Express Link State Power Management = Maximum power savings"
"Minimum processor state = 0%"
"Maximum processor state = 100%"
"Turn off display after = 1 Minute"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFBOOSTMODE 4"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFINCTHRESHOLD 95"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFDECTHRESHOLD 93"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFDECTIME 1"
"POWERCFG /S SCHEME_CURRENT"
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains Intel microcode version 00000000C000002B for the Intel Xeon Platinum 8480+ processor.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode), version 1.8.0_211
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	PW3336
Serial Number:	170134584
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	AIST (National Institute of Advanced Science and Technology)
Accredited by:	Kyosai Technos Co.,Ltd.
Calibration Label:	CF223000538
Date of Calibration:	14-Mar-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

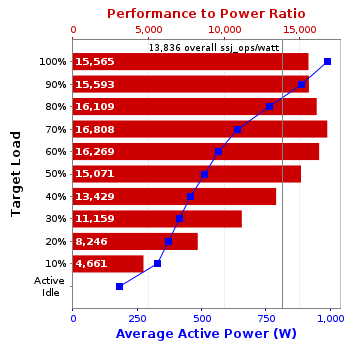

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	989	20.9
90%	889	21.1
80%	763	21.4
70%	640	21.8
60%	567	22.1
50%	510	22.3
40%	458	22.6
30%	414	22.8
20%	373	23.1
10%	330	23.2
Active Idle	182	23.4

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	20.9	11

See the Power/Temperature Details Report for additional details.

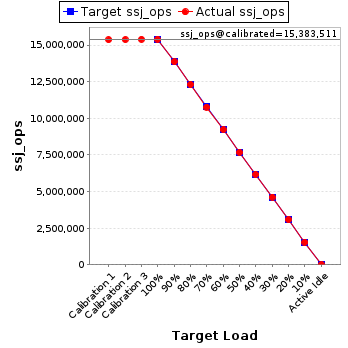

See the Host Performance Report for additional details.
