Nettrix R620 G50 LP SPECpower_ssj2008 = 14,714 overall ssj_ops/watt
Test Sponsor: Nettrix SPEC License #: 6138 Test Method: Single Node
Tested By: Nettrix Test Location: Beijing,China Test Date: Dec 6, 2022
Hardware Availability: Jan-2023 Software Availability: Dec-2022 Publication: Jan 11, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 818 22.2
Calibration 2 820 22.2
Calibration 3 821 22.4
100% 814 22.3
90% 753 22.4
80% 704 22.5
70% 618 22.5
60% 572 22.8
50% 475 22.9
40% 430 22.8
30% 385 23.0
20% 337 22.7
10% 290 22.7
Active Idle 157 22.3

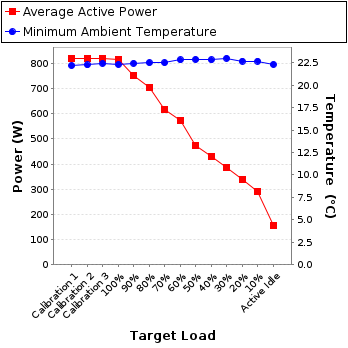

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA
Model: WT310E
Serial Number: C3XJ22093E
Connectivity: USB
Input Connection: Default
Metrology Institute: CNAS(China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration Laboratory of CETC
Calibration Label: C3VB14026E
Date of Calibration: 29-Mar-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Attach to SUT Power Supplier Unit 1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.36.4
Connectivity: USB2Serial
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 3.75 5.0 0.997 818 0.2%
Calibration 2 219 300.0 3.76 5.0 0.997 820 0.2%
Calibration 3 219 300.0 3.76 5.0 0.997 821 0.2%
100% 219 300.0 3.73 5.0 0.997 814 0.2%
90% 219 300.0 3.45 5.0 0.995 753 0.2%
80% 219 300.0 3.23 5.0 0.995 704 0.2%
70% 219 300.0 2.84 5.0 0.993 618 0.3%
60% 219 300.0 2.63 5.0 0.991 572 0.3%
50% 219 300.0 2.18 5.0 0.991 475 0.3%
40% 220 300.0 1.98 5.0 0.989 430 0.3%
30% 220 300.0 1.78 5.0 0.988 385 0.3%
20% 220 300.0 1.55 5.0 0.990 337 0.4%
10% 220 300.0 1.34 5.0 0.989 290 0.4%
Active Idle 220 300.0 0.741 5.0 0.962 157 0.6%
Power details for pwr1
