SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL380 Gen11 | SPECpower_ssj2008 = 13,296 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Dec 2, 2022 |
| Hardware Availability: | Jan-2023 | Software Availability: | Jan-2023 | Publication: | Feb 9, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

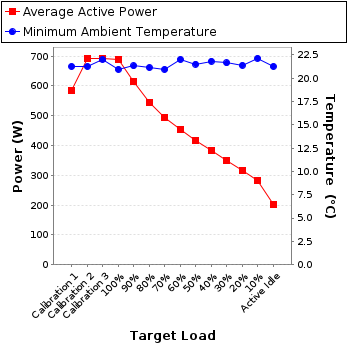

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 586 | 21.2 |
| Calibration 2 | 692 | 21.2 |
| Calibration 3 | 693 | 22.0 |
| 100% | 689 | 20.9 |
| 90% | 614 | 21.3 |
| 80% | 543 | 21.1 |
| 70% | 494 | 20.9 |
| 60% | 455 | 22.0 |
| 50% | 416 | 21.5 |
| 40% | 384 | 21.8 |
| 30% | 351 | 21.6 |
| 20% | 317 | 21.4 |
| 10% | 283 | 22.1 |
| Active Idle | 201 | 21.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91k308562 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GT25H-80-1 |
| Date of Calibration: | 20-May-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supplies 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 2.86 | 5.0 | 0.992 | 586 | 0.4% |
| Calibration 2 | 208 | 300.0 | 3.34 | 5.0 | 0.995 | 692 | 0.4% |
| Calibration 3 | 208 | 300.0 | 3.34 | 5.0 | 0.995 | 693 | 0.4% |
| 100% | 208 | 300.0 | 3.32 | 5.0 | 0.995 | 689 | 0.4% |
| 90% | 208 | 300.0 | 2.96 | 5.0 | 0.994 | 614 | 0.4% |
| 80% | 208 | 300.0 | 2.63 | 5.0 | 0.992 | 543 | 0.5% |
| 70% | 208 | 300.0 | 2.40 | 5.0 | 0.988 | 494 | 0.5% |
| 60% | 208 | 300.0 | 2.22 | 5.0 | 0.985 | 455 | 0.5% |
| 50% | 208 | 300.0 | 2.03 | 5.0 | 0.982 | 416 | 0.5% |
| 40% | 208 | 300.0 | 1.89 | 5.0 | 0.977 | 384 | 0.6% |
| 30% | 208 | 300.0 | 1.73 | 5.0 | 0.976 | 351 | 0.6% |
| 20% | 208 | 300.0 | 1.56 | 5.0 | 0.972 | 317 | 0.7% |
| 10% | 208 | 300.0 | 1.41 | 2.0 | 0.966 | 283 | 0.4% |
| Active Idle | 208 | 300.0 | 1.03 | 2.0 | 0.938 | 201 | 0.5% |
