SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant ML350 Gen11 | SPECpower_ssj2008 = 13,061 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Nov 28, 2022 |
| Hardware Availability: | Jan-2023 | Software Availability: | Jan-2023 | Publication: | Jan 10, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

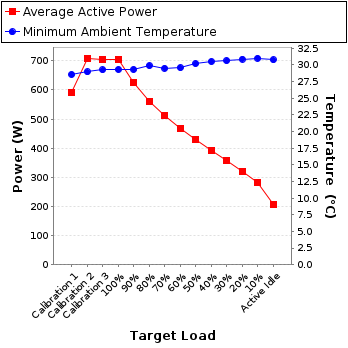

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 591 | 28.6 |
| Calibration 2 | 709 | 28.9 |
| Calibration 3 | 706 | 29.2 |
| 100% | 704 | 29.3 |
| 90% | 625 | 29.3 |
| 80% | 560 | 29.9 |
| 70% | 511 | 29.5 |
| 60% | 468 | 29.6 |
| 50% | 428 | 30.2 |
| 40% | 393 | 30.5 |
| 30% | 357 | 30.6 |
| 20% | 320 | 30.9 |
| 10% | 281 | 31.0 |
| Active Idle | 208 | 30.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GU3Q4-20-1 |
| Date of Calibration: | 13-Jun-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 2.93 | 5.0 | 0.979 | 591 | 0.4% |
| Calibration 2 | 208 | 300.0 | 3.45 | 5.0 | 0.985 | 709 | 0.3% |
| Calibration 3 | 208 | 300.0 | 3.44 | 5.0 | 0.985 | 706 | 0.4% |
| 100% | 208 | 300.0 | 3.43 | 5.0 | 0.985 | 704 | 0.4% |
| 90% | 209 | 300.0 | 3.05 | 5.0 | 0.983 | 625 | 0.4% |
| 80% | 208 | 300.0 | 2.74 | 5.0 | 0.978 | 560 | 0.4% |
| 70% | 208 | 300.0 | 2.51 | 5.0 | 0.974 | 511 | 0.4% |
| 60% | 209 | 300.0 | 2.31 | 5.0 | 0.970 | 468 | 0.5% |
| 50% | 209 | 300.0 | 2.13 | 5.0 | 0.965 | 428 | 0.5% |
| 40% | 209 | 300.0 | 1.96 | 5.0 | 0.960 | 393 | 0.5% |
| 30% | 209 | 300.0 | 1.80 | 2.0 | 0.952 | 357 | 0.3% |
| 20% | 209 | 300.0 | 1.62 | 2.0 | 0.943 | 320 | 0.4% |
| 10% | 209 | 300.0 | 1.45 | 2.0 | 0.928 | 281 | 0.4% |
| Active Idle | 210 | 300.0 | 1.18 | 2.0 | 0.842 | 208 | 0.5% |
