SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. RS720A-E12-RS12 | SPECpower_ssj2008 = 30,064 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Nov 23, 2022 |
| Hardware Availability: | Nov-2022 | Software Availability: | Jun-2022 | Publication: | Dec 21, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

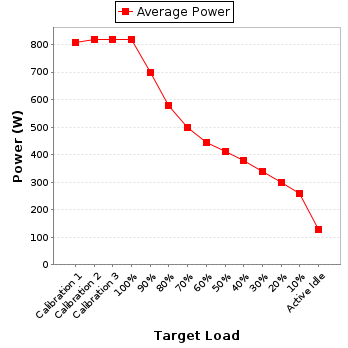

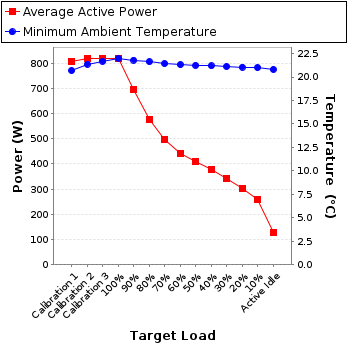

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 808 | 20.7 |
| Calibration 2 | 818 | 21.4 |
| Calibration 3 | 819 | 21.7 |
| 100% | 817 | 22.0 |
| 90% | 697 | 21.8 |
| 80% | 577 | 21.6 |
| 70% | 498 | 21.4 |
| 60% | 442 | 21.3 |
| 50% | 410 | 21.2 |
| 40% | 378 | 21.2 |
| 30% | 340 | 21.1 |
| 20% | 300 | 21.1 |
| 10% | 257 | 21.0 |
| Active Idle | 128 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-220624F02901 |
| Date of Calibration: | 24-Jun-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 221 | 300.0 | 3.67 | 5.0 | 0.996 | 808 | 0.4% |
| Calibration 2 | 222 | 300.0 | 3.71 | 5.0 | 0.996 | 818 | 0.4% |
| Calibration 3 | 222 | 300.0 | 3.71 | 5.0 | 0.996 | 819 | 0.4% |
| 100% | 222 | 300.0 | 3.69 | 5.0 | 0.996 | 817 | 0.4% |
| 90% | 223 | 300.0 | 3.14 | 5.0 | 0.995 | 697 | 0.4% |
| 80% | 224 | 300.0 | 2.59 | 5.0 | 0.994 | 577 | 0.4% |
| 70% | 224 | 300.0 | 2.24 | 5.0 | 0.994 | 498 | 0.5% |
| 60% | 224 | 300.0 | 1.99 | 5.0 | 0.993 | 442 | 0.5% |
| 50% | 225 | 300.0 | 1.84 | 5.0 | 0.992 | 410 | 0.5% |
| 40% | 225 | 300.0 | 1.70 | 5.0 | 0.991 | 378 | 0.6% |
| 30% | 225 | 300.0 | 1.53 | 5.0 | 0.990 | 340 | 0.6% |
| 20% | 225 | 300.0 | 1.35 | 2.0 | 0.988 | 300 | 0.4% |
| 10% | 225 | 300.0 | 1.16 | 2.0 | 0.985 | 257 | 0.4% |
| Active Idle | 226 | 300.0 | 0.589 | 2.0 | 0.959 | 128 | 0.7% |
