FALINUX, Inc. AnyStor-700EC SPECpower_ssj2008 = 8,436 overall ssj_ops/watt
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Nov 11, 2022
Hardware Availability: Dec-2022 Software Availability: Oct-2022 Publication: Dec 8, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 247 24.8
Calibration 2 257 24.9
Calibration 3 260 25.0
100% 250 25.1
90% 218 25.2
80% 205 25.1
70% 194 25.0
60% 185 24.9
50% 175 24.8
40% 166 24.7
30% 157 24.7
20% 148 24.6
10% 139 24.6
Active Idle 125 24.6

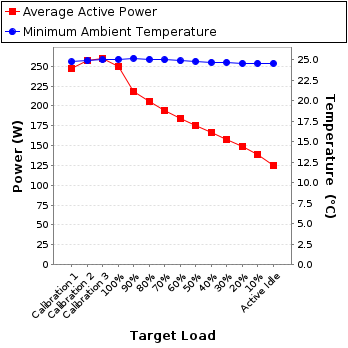

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Tektronix
Model: PA1000
Serial Number: C040933
Connectivity: USB
Input Connection: Default
Metrology Institute: SS TECHNOLOGY INC.
Accredited by: KOLAS (Korea Laboratory Accreditation Scheme)
Calibration Label: SS-220411-0085
Date of Calibration: 13-Apr-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-ed9a21d2-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB(UART)
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 217 353.6 1.19 3.5 0.961 247 0.6%
Calibration 2 217 353.6 1.23 3.5 0.962 257 0.6%
Calibration 3 217 353.6 1.24 3.5 0.963 260 0.6%
100% 217 353.6 1.20 3.5 0.961 250 0.6%
90% 217 353.6 1.06 3.5 0.950 218 0.7%
80% 218 353.6 0.999 3.5 0.944 205 0.7%
70% 218 353.6 0.951 3.5 0.938 194 0.7%
60% 218 353.6 0.909 3.5 0.932 185 0.7%
50% 218 353.6 0.869 3.5 0.925 175 0.8%
40% 218 353.6 0.830 3.5 0.917 166 0.8%
30% 218 353.6 0.793 3.5 0.910 157 0.8%
20% 218 353.6 0.755 3.5 0.901 148 0.9%
10% 218 353.6 0.713 3.5 0.890 139 0.9%
Active Idle 218 353.6 0.655 3.5 0.872 125 1.0%

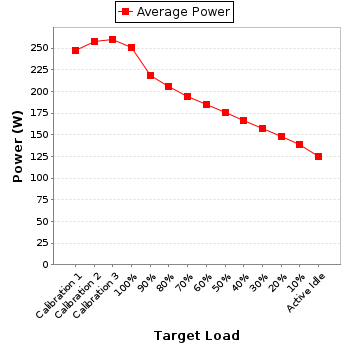

Power details for pwr1
