FALINUX, Inc. AnyStor-700EC SPECpower_ssj2008 = 8,335 overall ssj_ops/watt
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Single Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Nov 9, 2022
Hardware Availability: Dec-2022 Software Availability: Oct-2022 Publication: Dec 12, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 115 24.9
Calibration 2 120 24.9
Calibration 3 123 25.1
100% 123 25.1
90% 110 25.2
80% 103 25.2
70% 96.3 25.2
60% 90.8 25.2
50% 85.9 25.1
40% 80.9 25.1
30% 76.1 25.1
20% 77.4 25.1
10% 75.9 25.0
Active Idle 73.1 24.9

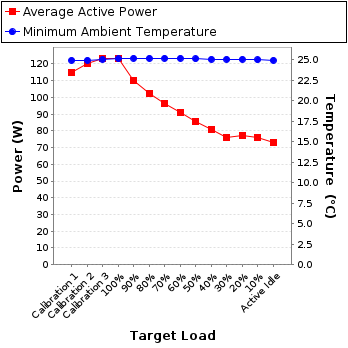

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Tektronix
Model: PA1000
Serial Number: C040933
Connectivity: USB
Input Connection: Default
Metrology Institute: SS TECHNOLOGY INC.
Accredited by: KOLAS (Korea Laboratory Accreditation Scheme)
Calibration Label: SS-220411-0085
Date of Calibration: 13-Apr-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-ed9a21d2-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB(UART)
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 353.6 0.558 1.4 0.956 115 0.7%
Calibration 2 216 353.6 0.582 1.4 0.959 120 0.7%
Calibration 3 216 353.6 0.593 1.4 0.960 123 0.7%
100% 216 353.6 0.595 1.4 0.960 123 0.7%
90% 216 353.6 0.536 1.4 0.951 110 0.7%
80% 216 353.6 0.503 1.4 0.943 103 0.8%
70% 216 353.6 0.476 1.4 0.936 96.3 0.8%
60% 216 353.6 0.452 1.4 0.929 90.8 0.8%
50% 217 353.6 0.431 1.4 0.921 85.9 0.9%
40% 217 353.6 0.410 1.4 0.912 80.9 0.9%
30% 217 353.6 0.389 1.4 0.903 76.1 0.9%
20% 217 353.6 0.395 1.4 0.905 77.4 0.9%
10% 216 353.6 0.388 1.4 0.902 75.9 0.9%
Active Idle 216 353.6 0.377 1.4 0.897 73.1 1.0%

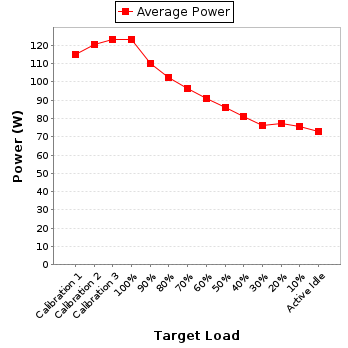

Power details for pwr1
