Hewlett Packard Enterprise ProLiant DL325 Gen11 ssj_ops@100% = 10,040,590
ssj_ops@100% per JVM = 209,179
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 24, 2022
Hardware Availability: Dec-2022 Software Availability: Dec-2022 Publication: Nov 10, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,382,402
Calibration 2     10,112,344
Calibration 3     10,092,287
ssj_ops@calibrated=10,102,315
100% 99.4% 10,102,315 10,040,590
90% 90.0% 9,092,084 9,091,911
80% 79.9% 8,081,852 8,075,808
70% 70.0% 7,071,621 7,071,491
60% 60.0% 6,061,389 6,064,493
50% 50.1% 5,051,158 5,056,630
40% 40.0% 4,040,926 4,040,531
30% 30.0% 3,030,695 3,034,296
20% 20.0% 2,020,463 2,019,657
10% 10.0% 1,010,232 1,007,410
Active Idle   0 0

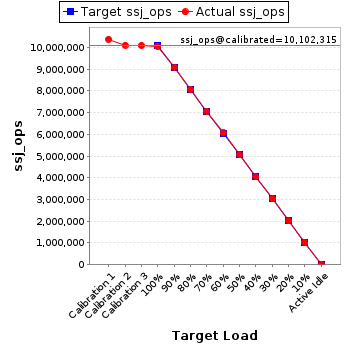

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL325 Gen11
Form Factor: 1U
CPU Name: AMD EPYC 9654P 2.40 GHz
CPU Characteristics: 96-Core, 2.40 GHz, 384MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 96 cores, 1 chip, 96 cores/chip
Hardware Threads: 192 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-4800B-R; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.3532)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.2+8-LTS-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-11] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 48
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: A56 v1.10 (10/14/2022)
Management Firmware Version: 1.10 Oct 09 2022
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5018419, HPE ProLiant Agentless Management Service for Windows X64
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-CD93LC2J022.001 202,342
WIN-CD93LC2J022.002 215,021
WIN-CD93LC2J022.003 207,913
WIN-CD93LC2J022.004 206,794
WIN-CD93LC2J022.005 209,257
WIN-CD93LC2J022.006 204,400
WIN-CD93LC2J022.007 210,404
WIN-CD93LC2J022.008 212,732
WIN-CD93LC2J022.009 206,598
WIN-CD93LC2J022.010 211,408
WIN-CD93LC2J022.011 209,556
WIN-CD93LC2J022.012 207,435
WIN-CD93LC2J022.013 203,007
WIN-CD93LC2J022.014 211,819
WIN-CD93LC2J022.015 209,109
WIN-CD93LC2J022.016 208,064
WIN-CD93LC2J022.017 208,716
WIN-CD93LC2J022.018 204,850
WIN-CD93LC2J022.019 211,260
WIN-CD93LC2J022.020 206,972
WIN-CD93LC2J022.021 201,020
WIN-CD93LC2J022.022 207,159
WIN-CD93LC2J022.023 210,608
WIN-CD93LC2J022.024 210,408
WIN-CD93LC2J022.025 206,527
WIN-CD93LC2J022.026 212,024
WIN-CD93LC2J022.027 209,209
WIN-CD93LC2J022.028 213,398
WIN-CD93LC2J022.029 201,583
WIN-CD93LC2J022.030 213,646
WIN-CD93LC2J022.031 213,314
WIN-CD93LC2J022.032 210,795
WIN-CD93LC2J022.033 211,570
WIN-CD93LC2J022.034 211,265
WIN-CD93LC2J022.035 209,043
WIN-CD93LC2J022.036 212,190
WIN-CD93LC2J022.037 212,331
WIN-CD93LC2J022.038 210,852
WIN-CD93LC2J022.039 205,230
WIN-CD93LC2J022.040 207,689
WIN-CD93LC2J022.041 211,140
WIN-CD93LC2J022.042 209,666
WIN-CD93LC2J022.043 211,658
WIN-CD93LC2J022.044 207,507
WIN-CD93LC2J022.045 210,529
WIN-CD93LC2J022.046 207,450
WIN-CD93LC2J022.047 211,287
WIN-CD93LC2J022.048 213,834
ssj_ops@100% 10,040,590
ssj_ops@100% per JVM 209,179

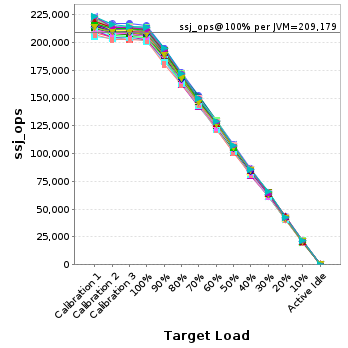

Graph of per-instance results
JVM 'WIN-CD93LC2J022.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,366
Calibration 2     204,326
Calibration 3     203,065
ssj_ops@calibrated=203,696
100% 99.3% 203,696 202,342
90% 89.9% 183,326 183,045
80% 80.3% 162,957 163,617
70% 70.9% 142,587 144,503
60% 59.7% 122,217 121,639
50% 49.6% 101,848 101,123
40% 40.1% 81,478 81,695
30% 29.9% 61,109 61,006
20% 20.0% 40,739 40,665
10% 10.2% 20,370 20,689
Active Idle   0 0

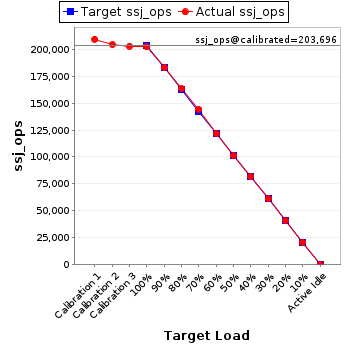

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,792
Calibration 2     216,652
Calibration 3     217,293
ssj_ops@calibrated=216,972
100% 99.1% 216,972 215,021
90% 89.9% 195,275 194,974
80% 79.8% 173,578 173,108
70% 70.0% 151,881 151,978
60% 59.9% 130,183 129,988
50% 49.8% 108,486 107,945
40% 39.9% 86,789 86,504
30% 30.0% 65,092 65,177
20% 20.1% 43,394 43,619
10% 9.9% 21,697 21,474
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,721
Calibration 2     208,310
Calibration 3     208,675
ssj_ops@calibrated=208,492
100% 99.7% 208,492 207,913
90% 89.7% 187,643 187,019
80% 79.9% 166,794 166,485
70% 69.9% 145,945 145,773
60% 60.1% 125,095 125,216
50% 49.6% 104,246 103,448
40% 40.2% 83,397 83,887
30% 29.5% 62,548 61,566
20% 20.1% 41,698 41,865
10% 9.8% 20,849 20,536
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,151
Calibration 2     208,998
Calibration 3     206,795
ssj_ops@calibrated=207,897
100% 99.5% 207,897 206,794
90% 90.5% 187,107 188,077
80% 80.0% 166,317 166,291
70% 70.2% 145,528 145,981
60% 60.2% 124,738 125,225
50% 49.6% 103,948 103,048
40% 40.2% 83,159 83,506
30% 30.1% 62,369 62,543
20% 19.9% 41,579 41,402
10% 10.0% 20,790 20,719
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,289
Calibration 2     210,821
Calibration 3     210,740
ssj_ops@calibrated=210,781
100% 99.3% 210,781 209,257
90% 90.5% 189,703 190,754
80% 79.1% 168,625 166,661
70% 70.1% 147,546 147,707
60% 60.2% 126,468 126,928
50% 50.1% 105,390 105,597
40% 39.7% 84,312 83,698
30% 30.0% 63,234 63,200
20% 20.2% 42,156 42,486
10% 9.9% 21,078 20,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,422
Calibration 2     206,372
Calibration 3     205,164
ssj_ops@calibrated=205,768
100% 99.3% 205,768 204,400
90% 90.4% 185,191 186,041
80% 80.8% 164,614 166,182
70% 69.6% 144,038 143,233
60% 59.9% 123,461 123,298
50% 49.9% 102,884 102,743
40% 39.8% 82,307 81,799
30% 30.0% 61,730 61,740
20% 19.9% 41,154 41,036
10% 9.9% 20,577 20,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,258
Calibration 2     210,967
Calibration 3     210,848
ssj_ops@calibrated=210,908
100% 99.8% 210,908 210,404
90% 90.0% 189,817 189,784
80% 80.6% 168,726 170,087
70% 69.9% 147,635 147,387
60% 59.5% 126,545 125,496
50% 50.2% 105,454 105,834
40% 39.8% 84,363 83,904
30% 30.0% 63,272 63,330
20% 19.9% 42,182 42,071
10% 9.9% 21,091 20,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,570
Calibration 2     214,519
Calibration 3     213,606
ssj_ops@calibrated=214,063
100% 99.4% 214,063 212,732
90% 89.7% 192,656 192,050
80% 79.2% 171,250 169,581
70% 70.4% 149,844 150,607
60% 60.2% 128,438 128,802
50% 50.0% 107,031 107,077
40% 39.9% 85,625 85,368
30% 29.9% 64,219 64,105
20% 20.0% 42,813 42,830
10% 10.0% 21,406 21,315
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,906
Calibration 2     207,743
Calibration 3     207,389
ssj_ops@calibrated=207,566
100% 99.5% 207,566 206,598
90% 90.1% 186,810 187,037
80% 80.4% 166,053 166,801
70% 69.1% 145,296 143,490
60% 60.1% 124,540 124,827
50% 49.6% 103,783 102,867
40% 39.7% 83,027 82,470
30% 29.9% 62,270 62,166
20% 19.9% 41,513 41,257
10% 10.0% 20,757 20,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,667
Calibration 2     213,041
Calibration 3     212,217
ssj_ops@calibrated=212,629
100% 99.4% 212,629 211,408
90% 90.4% 191,366 192,142
80% 80.0% 170,103 169,998
70% 70.2% 148,840 149,165
60% 60.4% 127,577 128,379
50% 50.4% 106,315 107,235
40% 39.9% 85,052 84,775
30% 29.6% 63,789 62,846
20% 20.0% 42,526 42,444
10% 9.9% 21,263 21,106
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,588
Calibration 2     210,987
Calibration 3     210,510
ssj_ops@calibrated=210,749
100% 99.4% 210,749 209,556
90% 90.6% 189,674 190,949
80% 80.3% 168,599 169,330
70% 70.5% 147,524 148,554
60% 60.1% 126,449 126,713
50% 49.6% 105,374 104,492
40% 40.1% 84,299 84,520
30% 30.6% 63,225 64,558
20% 20.0% 42,150 42,246
10% 9.9% 21,075 20,874
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,273
Calibration 2     209,208
Calibration 3     207,943
ssj_ops@calibrated=208,575
100% 99.5% 208,575 207,435
90% 90.3% 187,718 188,341
80% 79.3% 166,860 165,445
70% 70.3% 146,003 146,542
60% 59.9% 125,145 124,888
50% 49.7% 104,288 103,749
40% 40.1% 83,430 83,552
30% 29.9% 62,573 62,372
20% 20.0% 41,715 41,740
10% 9.9% 20,858 20,590
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     210,548
Calibration 2     204,165
Calibration 3     204,048
ssj_ops@calibrated=204,107
100% 99.5% 204,107 203,007
90% 90.0% 183,696 183,762
80% 79.6% 163,285 162,517
70% 69.9% 142,875 142,723
60% 60.4% 122,464 123,191
50% 50.8% 102,053 103,759
40% 39.3% 81,643 80,185
30% 29.9% 61,232 61,028
20% 20.5% 40,821 41,756
10% 10.0% 20,411 20,394
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,461
Calibration 2     211,830
Calibration 3     212,417
ssj_ops@calibrated=212,123
100% 99.9% 212,123 211,819
90% 89.6% 190,911 190,099
80% 80.0% 169,699 169,641
70% 69.8% 148,486 147,988
60% 60.2% 127,274 127,610
50% 50.7% 106,062 107,485
40% 40.1% 84,849 85,055
30% 29.8% 63,637 63,112
20% 20.1% 42,425 42,565
10% 9.8% 21,212 20,843
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,982
Calibration 2     209,824
Calibration 3     209,893
ssj_ops@calibrated=209,858
100% 99.6% 209,858 209,109
90% 90.9% 188,872 190,834
80% 80.2% 167,887 168,209
70% 70.0% 146,901 146,973
60% 60.4% 125,915 126,653
50% 50.2% 104,929 105,374
40% 40.0% 83,943 83,876
30% 30.0% 62,957 62,912
20% 20.3% 41,972 42,510
10% 10.0% 20,986 20,898
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     210,500
Calibration 2     208,936
Calibration 3     208,514
ssj_ops@calibrated=208,725
100% 99.7% 208,725 208,064
90% 89.8% 187,852 187,519
80% 79.9% 166,980 166,796
70% 70.4% 146,107 146,969
60% 60.6% 125,235 126,486
50% 50.5% 104,362 105,501
40% 40.3% 83,490 84,167
30% 29.9% 62,617 62,513
20% 19.7% 41,745 41,036
10% 10.1% 20,872 21,086
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,970
Calibration 2     210,636
Calibration 3     210,989
ssj_ops@calibrated=210,812
100% 99.0% 210,812 208,716
90% 89.6% 189,731 188,790
80% 79.8% 168,650 168,194
70% 70.4% 147,569 148,309
60% 60.4% 126,487 127,268
50% 50.3% 105,406 105,967
40% 39.9% 84,325 84,203
30% 30.4% 63,244 64,089
20% 20.2% 42,162 42,553
10% 9.8% 21,081 20,661
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,258
Calibration 2     206,441
Calibration 3     205,520
ssj_ops@calibrated=205,981
100% 99.5% 205,981 204,850
90% 90.0% 185,383 185,409
80% 79.7% 164,785 164,162
70% 69.9% 144,187 144,028
60% 60.0% 123,589 123,486
50% 49.7% 102,990 102,330
40% 40.0% 82,392 82,324
30% 29.8% 61,794 61,365
20% 19.9% 41,196 41,069
10% 9.8% 20,598 20,211
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

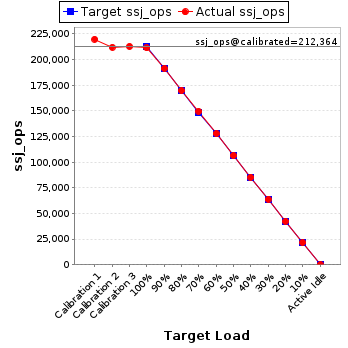

JVM 'WIN-CD93LC2J022.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,738
Calibration 2     211,948
Calibration 3     212,780
ssj_ops@calibrated=212,364
100% 99.5% 212,364 211,260
90% 90.1% 191,128 191,321
80% 79.9% 169,891 169,708
70% 70.4% 148,655 149,577
60% 60.2% 127,418 127,810
50% 50.1% 106,182 106,389
40% 40.1% 84,946 85,248
30% 30.1% 63,709 63,822
20% 20.0% 42,473 42,375
10% 10.2% 21,236 21,670
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,189
Calibration 2     208,695
Calibration 3     208,366
ssj_ops@calibrated=208,530
100% 99.3% 208,530 206,972
90% 89.9% 187,677 187,460
80% 80.2% 166,824 167,345
70% 70.1% 145,971 146,079
60% 60.0% 125,118 125,200
50% 50.1% 104,265 104,575
40% 40.4% 83,412 84,209
30% 30.0% 62,559 62,552
20% 19.7% 41,706 41,110
10% 10.0% 20,853 20,945
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

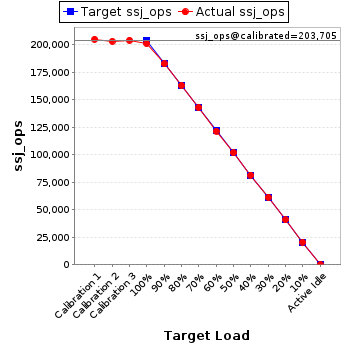

JVM 'WIN-CD93LC2J022.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,001
Calibration 2     203,229
Calibration 3     204,180
ssj_ops@calibrated=203,705
100% 98.7% 203,705 201,020
90% 89.6% 183,334 182,585
80% 80.0% 162,964 163,021
70% 70.2% 142,593 143,075
60% 59.6% 122,223 121,488
50% 49.9% 101,852 101,709
40% 40.0% 81,482 81,469
30% 30.1% 61,111 61,301
20% 20.0% 40,741 40,695
10% 10.1% 20,370 20,573
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,704
Calibration 2     208,924
Calibration 3     208,349
ssj_ops@calibrated=208,637
100% 99.3% 208,637 207,159
90% 90.1% 187,773 187,990
80% 79.4% 166,909 165,673
70% 69.2% 146,046 144,383
60% 60.0% 125,182 125,219
50% 50.2% 104,318 104,831
40% 39.7% 83,455 82,861
30% 30.0% 62,591 62,672
20% 20.2% 41,727 42,052
10% 10.0% 20,864 20,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,989
Calibration 2     211,308
Calibration 3     210,561
ssj_ops@calibrated=210,934
100% 99.8% 210,934 210,608
90% 90.1% 189,841 189,973
80% 79.6% 168,747 167,854
70% 69.7% 147,654 147,101
60% 59.7% 126,561 125,898
50% 50.4% 105,467 106,327
40% 39.5% 84,374 83,423
30% 30.3% 63,280 63,831
20% 20.0% 42,187 42,268
10% 10.0% 21,093 21,069
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,145
Calibration 2     213,874
Calibration 3     211,948
ssj_ops@calibrated=212,911
100% 98.8% 212,911 210,408
90% 89.9% 191,620 191,456
80% 79.5% 170,329 169,300
70% 69.7% 149,038 148,443
60% 59.8% 127,747 127,254
50% 50.0% 106,455 106,373
40% 39.7% 85,164 84,559
30% 29.7% 63,873 63,192
20% 20.1% 42,582 42,848
10% 10.1% 21,291 21,532
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

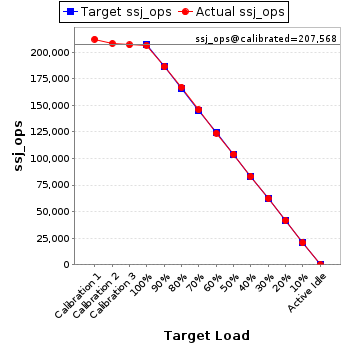

JVM 'WIN-CD93LC2J022.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,287
Calibration 2     208,226
Calibration 3     206,910
ssj_ops@calibrated=207,568
100% 99.5% 207,568 206,527
90% 89.9% 186,811 186,566
80% 80.5% 166,054 167,189
70% 70.3% 145,298 145,821
60% 59.7% 124,541 123,862
50% 50.2% 103,784 104,099
40% 40.1% 83,027 83,142
30% 30.1% 62,270 62,476
20% 20.1% 41,514 41,736
10% 10.0% 20,757 20,686
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,483
Calibration 2     212,771
Calibration 3     213,286
ssj_ops@calibrated=213,028
100% 99.5% 213,028 212,024
90% 90.5% 191,725 192,769
80% 79.8% 170,423 169,949
70% 69.4% 149,120 147,868
60% 60.6% 127,817 129,096
50% 49.8% 106,514 106,015
40% 40.3% 85,211 85,818
30% 30.4% 63,908 64,825
20% 19.8% 42,606 42,086
10% 10.0% 21,303 21,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,145
Calibration 2     209,379
Calibration 3     208,269
ssj_ops@calibrated=208,824
100% 100.2% 208,824 209,209
90% 89.5% 187,941 186,836
80% 79.8% 167,059 166,547
70% 69.9% 146,177 145,883
60% 59.8% 125,294 124,920
50% 50.5% 104,412 105,376
40% 40.4% 83,530 84,392
30% 30.2% 62,647 63,019
20% 20.2% 41,765 42,124
10% 10.0% 20,882 20,841
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,216
Calibration 2     214,680
Calibration 3     214,377
ssj_ops@calibrated=214,528
100% 99.5% 214,528 213,398
90% 90.6% 193,076 194,300
80% 79.6% 171,623 170,738
70% 70.8% 150,170 151,823
60% 60.4% 128,717 129,536
50% 49.7% 107,264 106,663
40% 39.9% 85,811 85,589
30% 30.1% 64,359 64,652
20% 20.0% 42,906 42,938
10% 10.0% 21,453 21,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     207,096
Calibration 2     202,948
Calibration 3     202,361
ssj_ops@calibrated=202,654
100% 99.5% 202,654 201,583
90% 88.8% 182,389 180,056
80% 79.8% 162,123 161,790
70% 70.9% 141,858 143,734
60% 59.8% 121,593 121,255
50% 50.0% 101,327 101,396
40% 40.0% 81,062 81,160
30% 30.4% 60,796 61,651
20% 19.9% 40,531 40,406
10% 10.0% 20,265 20,277
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,088
Calibration 2     214,605
Calibration 3     213,935
ssj_ops@calibrated=214,270
100% 99.7% 214,270 213,646
90% 89.2% 192,843 191,117
80% 80.3% 171,416 172,109
70% 69.7% 149,989 149,376
60% 59.8% 128,562 128,056
50% 50.3% 107,135 107,780
40% 39.8% 85,708 85,277
30% 29.6% 64,281 63,514
20% 19.8% 42,854 42,377
10% 9.9% 21,427 21,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,789
Calibration 2     213,631
Calibration 3     214,106
ssj_ops@calibrated=213,868
100% 99.7% 213,868 213,314
90% 89.5% 192,481 191,495
80% 80.5% 171,095 172,193
70% 69.9% 149,708 149,492
60% 60.8% 128,321 129,961
50% 50.0% 106,934 106,976
40% 39.6% 85,547 84,783
30% 30.1% 64,160 64,331
20% 19.8% 42,774 42,409
10% 10.1% 21,387 21,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,298
Calibration 2     212,560
Calibration 3     212,016
ssj_ops@calibrated=212,288
100% 99.3% 212,288 210,795
90% 89.8% 191,059 190,612
80% 79.6% 169,830 168,916
70% 69.8% 148,602 148,099
60% 59.7% 127,373 126,660
50% 50.2% 106,144 106,612
40% 40.1% 84,915 85,196
30% 29.8% 63,686 63,189
20% 20.0% 42,458 42,361
10% 9.8% 21,229 20,740
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,059
Calibration 2     213,222
Calibration 3     212,520
ssj_ops@calibrated=212,871
100% 99.4% 212,871 211,570
90% 89.3% 191,584 190,104
80% 79.9% 170,297 170,154
70% 69.5% 149,009 147,867
60% 59.3% 127,722 126,164
50% 50.3% 106,435 107,175
40% 40.5% 85,148 86,119
30% 30.4% 63,861 64,626
20% 20.2% 42,574 42,989
10% 10.0% 21,287 21,307
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,994
Calibration 2     213,071
Calibration 3     212,242
ssj_ops@calibrated=212,656
100% 99.3% 212,656 211,265
90% 90.1% 191,391 191,632
80% 80.1% 170,125 170,280
70% 69.4% 148,860 147,547
60% 59.8% 127,594 127,140
50% 50.0% 106,328 106,252
40% 40.1% 85,063 85,324
30% 29.9% 63,797 63,623
20% 20.1% 42,531 42,724
10% 9.9% 21,266 20,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,092
Calibration 2     211,222
Calibration 3     210,549
ssj_ops@calibrated=210,886
100% 99.1% 210,886 209,043
90% 89.6% 189,797 189,036
80% 80.2% 168,708 169,028
70% 70.3% 147,620 148,193
60% 59.7% 126,531 125,981
50% 50.5% 105,443 106,426
40% 40.0% 84,354 84,393
30% 30.1% 63,266 63,379
20% 19.7% 42,177 41,561
10% 10.0% 21,089 21,024
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,975
Calibration 2     211,800
Calibration 3     212,865
ssj_ops@calibrated=212,332
100% 99.9% 212,332 212,190
90% 89.2% 191,099 189,356
80% 79.6% 169,866 169,028
70% 70.0% 148,633 148,679
60% 59.9% 127,399 127,101
50% 49.9% 106,166 105,988
40% 40.4% 84,933 85,763
30% 30.2% 63,700 64,160
20% 19.7% 42,466 41,927
10% 9.9% 21,233 20,953
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,019
Calibration 2     213,695
Calibration 3     213,373
ssj_ops@calibrated=213,534
100% 99.4% 213,534 212,331
90% 89.6% 192,181 191,316
80% 80.4% 170,827 171,695
70% 70.0% 149,474 149,454
60% 59.9% 128,120 127,891
50% 50.3% 106,767 107,372
40% 40.2% 85,414 85,772
30% 30.4% 64,060 64,904
20% 20.0% 42,707 42,690
10% 9.9% 21,353 21,147
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,830
Calibration 2     210,788
Calibration 3     210,627
ssj_ops@calibrated=210,707
100% 100.1% 210,707 210,852
90% 90.5% 189,637 190,791
80% 80.1% 168,566 168,771
70% 70.0% 147,495 147,486
60% 60.2% 126,424 126,843
50% 50.1% 105,354 105,623
40% 39.4% 84,283 83,026
30% 30.1% 63,212 63,385
20% 19.7% 42,141 41,439
10% 10.2% 21,071 21,515
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     211,289
Calibration 2     208,124
Calibration 3     207,899
ssj_ops@calibrated=208,011
100% 98.7% 208,011 205,230
90% 90.9% 187,210 189,025
80% 79.7% 166,409 165,861
70% 70.0% 145,608 145,691
60% 59.5% 124,807 123,745
50% 50.4% 104,006 104,757
40% 39.9% 83,204 82,938
30% 29.5% 62,403 61,409
20% 20.5% 41,602 42,744
10% 10.1% 20,801 21,011
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,815
Calibration 2     210,071
Calibration 3     209,050
ssj_ops@calibrated=209,561
100% 99.1% 209,561 207,689
90% 90.5% 188,605 189,606
80% 79.6% 167,649 166,767
70% 70.1% 146,692 146,987
60% 59.8% 125,736 125,313
50% 49.8% 104,780 104,286
40% 39.9% 83,824 83,660
30% 29.8% 62,868 62,554
20% 19.9% 41,912 41,622
10% 10.1% 20,956 21,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,040
Calibration 2     212,840
Calibration 3     213,095
ssj_ops@calibrated=212,967
100% 99.1% 212,967 211,140
90% 89.8% 191,671 191,139
80% 79.8% 170,374 170,049
70% 70.3% 149,077 149,790
60% 60.0% 127,780 127,853
50% 50.4% 106,484 107,335
40% 40.1% 85,187 85,364
30% 30.2% 63,890 64,323
20% 20.1% 42,593 42,733
10% 9.9% 21,297 21,178
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,339
Calibration 2     212,188
Calibration 3     212,067
ssj_ops@calibrated=212,127
100% 98.8% 212,127 209,666
90% 89.4% 190,915 189,692
80% 80.2% 169,702 170,070
70% 70.1% 148,489 148,607
60% 60.4% 127,276 128,080
50% 49.7% 106,064 105,332
40% 40.4% 84,851 85,624
30% 29.9% 63,638 63,477
20% 20.0% 42,425 42,464
10% 10.0% 21,213 21,295
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,457
Calibration 2     213,323
Calibration 3     212,848
ssj_ops@calibrated=213,086
100% 99.3% 213,086 211,658
90% 89.7% 191,777 191,162
80% 80.1% 170,469 170,764
70% 69.7% 149,160 148,572
60% 59.8% 127,851 127,396
50% 49.7% 106,543 105,904
40% 39.8% 85,234 84,837
30% 30.2% 63,926 64,282
20% 20.2% 42,617 43,015
10% 9.9% 21,309 21,061
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,542
Calibration 2     210,177
Calibration 3     209,160
ssj_ops@calibrated=209,669
100% 99.0% 209,669 207,507
90% 90.2% 188,702 189,199
80% 79.7% 167,735 167,102
70% 70.0% 146,768 146,860
60% 60.8% 125,801 127,428
50% 50.0% 104,834 104,823
40% 39.8% 83,867 83,545
30% 30.1% 62,901 63,198
20% 20.0% 41,934 41,874
10% 9.9% 20,967 20,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,740
Calibration 2     212,161
Calibration 3     212,147
ssj_ops@calibrated=212,154
100% 99.2% 212,154 210,529
90% 90.6% 190,939 192,250
80% 79.5% 169,723 168,723
70% 69.7% 148,508 147,811
60% 60.2% 127,292 127,794
50% 49.2% 106,077 104,356
40% 40.4% 84,862 85,769
30% 30.0% 63,646 63,671
20% 20.0% 42,431 42,535
10% 10.0% 21,215 21,136
Active Idle   0 0

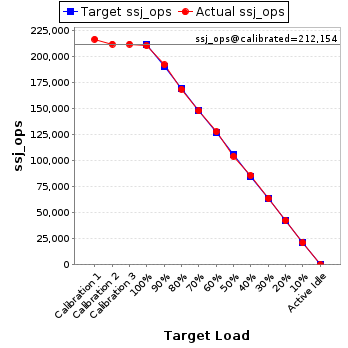

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,701
Calibration 2     209,517
Calibration 3     209,033
ssj_ops@calibrated=209,275
100% 99.1% 209,275 207,450
90% 90.2% 188,347 188,681
80% 80.2% 167,420 167,773
70% 69.6% 146,492 145,588
60% 60.4% 125,565 126,338
50% 50.5% 104,637 105,778
40% 40.6% 83,710 84,865
30% 30.3% 62,782 63,417
20% 19.9% 41,855 41,590
10% 10.0% 20,927 20,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,174
Calibration 2     213,523
Calibration 3     213,651
ssj_ops@calibrated=213,587
100% 98.9% 213,587 211,287
90% 90.3% 192,228 192,787
80% 80.8% 170,869 172,496
70% 70.1% 149,511 149,698
60% 59.9% 128,152 128,010
50% 50.1% 106,793 107,078
40% 39.9% 85,435 85,301
30% 29.8% 64,076 63,549
20% 19.7% 42,717 42,099
10% 10.1% 21,359 21,640
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CD93LC2J022.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,447
Calibration 2     216,066
Calibration 3     214,093
ssj_ops@calibrated=215,080
100% 99.4% 215,080 213,834
90% 90.7% 193,572 194,972
80% 79.9% 172,064 171,814
70% 69.7% 150,556 149,995
60% 60.0% 129,048 129,107
50% 50.0% 107,540 107,448
40% 39.8% 86,032 85,618
30% 30.5% 64,524 65,689
20% 19.9% 43,016 42,714
10% 10.0% 21,508 21,453
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
