SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL365 Gen11 | SPECpower_ssj2008 = 25,333 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 19, 2022 |
| Hardware Availability: | Dec-2022 | Software Availability: | Dec-2022 | Publication: | Nov 10, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

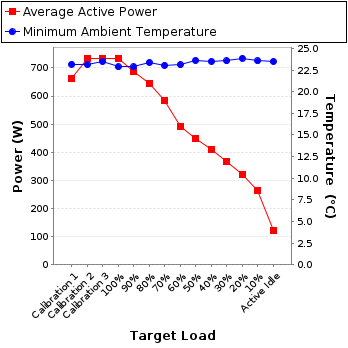

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 664 | 23.2 |
| Calibration 2 | 734 | 23.1 |
| Calibration 3 | 734 | 23.5 |
| 100% | 732 | 22.9 |
| 90% | 688 | 22.9 |
| 80% | 644 | 23.4 |
| 70% | 584 | 23.1 |
| 60% | 491 | 23.1 |
| 50% | 450 | 23.6 |
| 40% | 409 | 23.5 |
| 30% | 366 | 23.6 |
| 20% | 320 | 23.9 |
| 10% | 265 | 23.6 |
| Active Idle | 122 | 23.5 |

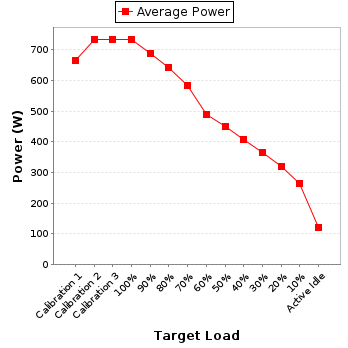

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB47169 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GU3Q4-80-1 |
| Date of Calibration: | 14-Jun-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 3.25 | 5.0 | 0.981 | 664 | 0.4% |
| Calibration 2 | 210 | 300.0 | 3.55 | 5.0 | 0.984 | 734 | 0.4% |
| Calibration 3 | 210 | 300.0 | 3.55 | 5.0 | 0.985 | 734 | 0.4% |
| 100% | 210 | 300.0 | 3.54 | 5.0 | 0.984 | 732 | 0.4% |
| 90% | 210 | 300.0 | 3.34 | 5.0 | 0.982 | 688 | 0.4% |
| 80% | 210 | 300.0 | 3.13 | 5.0 | 0.981 | 644 | 0.4% |
| 70% | 210 | 300.0 | 2.84 | 5.0 | 0.979 | 584 | 0.4% |
| 60% | 210 | 300.0 | 2.41 | 5.0 | 0.970 | 491 | 0.5% |
| 50% | 210 | 300.0 | 2.23 | 5.0 | 0.966 | 450 | 0.5% |
| 40% | 209 | 300.0 | 2.04 | 2.0 | 0.959 | 409 | 0.4% |
| 30% | 209 | 300.0 | 1.84 | 2.0 | 0.951 | 366 | 0.4% |
| 20% | 209 | 300.0 | 1.63 | 2.0 | 0.940 | 320 | 0.4% |
| 10% | 209 | 300.0 | 1.38 | 2.0 | 0.916 | 265 | 0.5% |
| Active Idle | 209 | 300.0 | 0.785 | 2.0 | 0.743 | 122 | 0.8% |
