Nettrix R620 G40 SPECpower_ssj2008 = 10,103 overall ssj_ops/watt
Test Sponsor: Nettrix SPEC License #: 6138 Test Method: Single Node
Tested By: Nettrix Test Location: Beijing,China Test Date: Jun 21, 2022
Hardware Availability: Jun-2022 Software Availability: Jun-2022 Publication: Jul 21, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.9% 6,294,453 491 12,825
90% 90.3% 5,689,882 478 11,908
80% 80.1% 5,046,618 417 12,090
70% 69.9% 4,407,905 365 12,079
60% 60.0% 3,782,530 333 11,366
50% 50.0% 3,152,939 301 10,468
40% 40.0% 2,522,722 271 9,313
30% 30.0% 1,891,811 242 7,831
20% 19.9% 1,257,399 213 5,907
10% 10.0% 631,058 185 3,407
Active Idle 0 137 0
∑ssj_ops / ∑power = 10,103

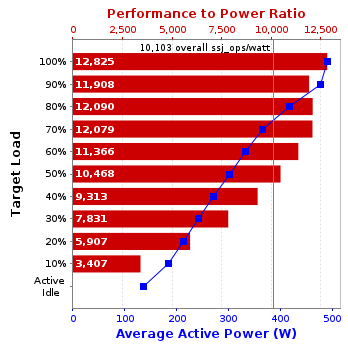

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Nettrix
Model: R620 G40
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8352Y
CPU Characteristics: 32-Core,2.2GHz,48MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per chip
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 x 16GB 2Rx8 PC4-3200Y-R; slots 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28 and 30 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: ACBEL CRPS800B2 800W
Disk Drive: 1 x 512GB SATA SSD; P/N SDASB8Y-512G
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x 10000BASE-T OCP with 2 x RJ45 ports; P/N BCM957416N4160C
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: tuned-adm profile powersave
Operating System (OS): Suse Linux Enterprise Server 15 SP3
OS Version: 5.3.18-57-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xms1995m -Xmx1995m -Xmn1825m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 --XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: numactl --physcpubind=[(0,64),(1,65),(2,66),(3,67),(4,68),(5,69),(6,70),(7,71),(8,72),(9,73),(10,74),(11,75),(12,76),(13,77),(14,78),(15,79),(16,80),(17,81),(18,82),(19,83),(20,84),(21,85),(22,86),(23,87),(24,88),(25,89),(26,90),(27,91),(28,92),(29,93),(30,94),(31,95),(32,96),(33,97),(34,98),(35,99),(36,100),(37,101),(38,102),(39,103),(40,104),(41,105),(42,106),(43,107),(44,108),(45,109),(46,110),(47,111),(48,112),(49,113),(50,114),(51,115),(52,116),(53,117),(54,118),(55,119),(56,120),(57,121),(58,122),(59,123),(60,124),(61,125),(62,126),(63,127)] --localalloc
JVM Instances: 64
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 0PYH001040
Management Firmware Version: 50.31(PYH-C01-097-0S04)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Nettrix
Model: R620 G30
CPU Description: Intel Xeon Gold 5120
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA
Model: WT310E
Serial Number: C3TF05047E
Connectivity: USB
Input Connection: Default
Metrology Institute: CNAS(China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration Laboratory of CETC
Calibration Label: C3VB14026E
Date of Calibration: 29-Mar-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Attached to SUT Power Supplier Unit 1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.36.4
Connectivity: USB2Serial
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 491 25.1
90% 478 25.8
80% 417 26.2
70% 365 26.4
60% 333 26.6
50% 301 26.9
40% 271 27.1
30% 242 27.2
20% 213 27.3
10% 185 27.4
Active Idle 137 27.6
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 25.1 50
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,307,760
Calibration 2     6,296,504
Calibration 3     6,309,880
ssj_ops@calibrated=6,303,192
100% 99.9% 6,303,192 6,294,453
90% 90.3% 5,672,873 5,689,882
80% 80.1% 5,042,554 5,046,618
70% 69.9% 4,412,235 4,407,905
60% 60.0% 3,781,915 3,782,530
50% 50.0% 3,151,596 3,152,939
40% 40.0% 2,521,277 2,522,722
30% 30.0% 1,890,958 1,891,811
20% 19.9% 1,260,638 1,257,399
10% 10.0% 630,319 631,058
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
