SPECpower_ssj2008

Quanta Computer Inc. QuantaGrid D43K-1U			SPECpower_ssj2008 = 19,476 overall ssj_ops/watt
Test Sponsor:	Quanta Computer Inc.	SPEC License #:	9050	Test Method:	Single Node
Tested By:	Quanta Computer Inc.	Test Location:	Taoyuan, TW, R.O.C	Test Date:	Jun 15, 2022
Hardware Availability:	May-2022	Software Availability:	Apr-2022	Publication:	Jul 21, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Quanta Computer Inc.
Model:	QuantaGrid D43K-1U
Form Factor:	2U
CPU Name:	AMD EPYC 7773X 2.20 GHz
CPU Characteristics:	64 core, 2.20GHz, 768MB L3 Cache
CPU Frequency (MHz):	2200
CPU(s) Enabled:	128 cores, 2 chips, 64 cores/chip
Hardware Threads:	256 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per chip
Tertiary Cache:	768 MB I+D off chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16GB 2Rx8 PC4-3200AA-R (QuantaPN : ATR5GAGR530); slots A0, B0, C0, D0, E0, F0, G0, H0 populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	Quanta P/N AF800C00002
Disk Drive:	1 x 480G SATA SSD,Quanta P/N ABS480GZ000
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet Controller I350-T4, 4-port
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced power plan in OS
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.2061)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15+8-LTS-149, mix mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-15] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	64
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	3C08.Q202
Management Firmware Version:	6.32
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows (KB5004244)

none

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Using Windows PowerShell, set the following powercfg properties:

NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 Datacenter 64-bit
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.7.0_25
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT310
Serial Number:	C2PM12064V
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	NML (National Measurement Laboratory)
Accredited by:	Omni Calibration Laboratory,Taiwan
Calibration Label:	ECR2215427
Date of Calibration:	03-May-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/T
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

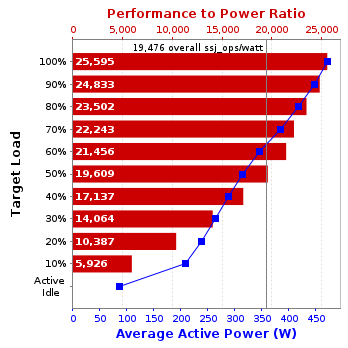

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	471	22.1
90%	448	22.2
80%	418	22.2
70%	384	22.1
60%	345	22.0
50%	315	21.9
40%	288	21.9
30%	264	21.8
20%	238	21.7
10%	208	21.7
Active Idle	85.5	21.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	21.6	250

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
